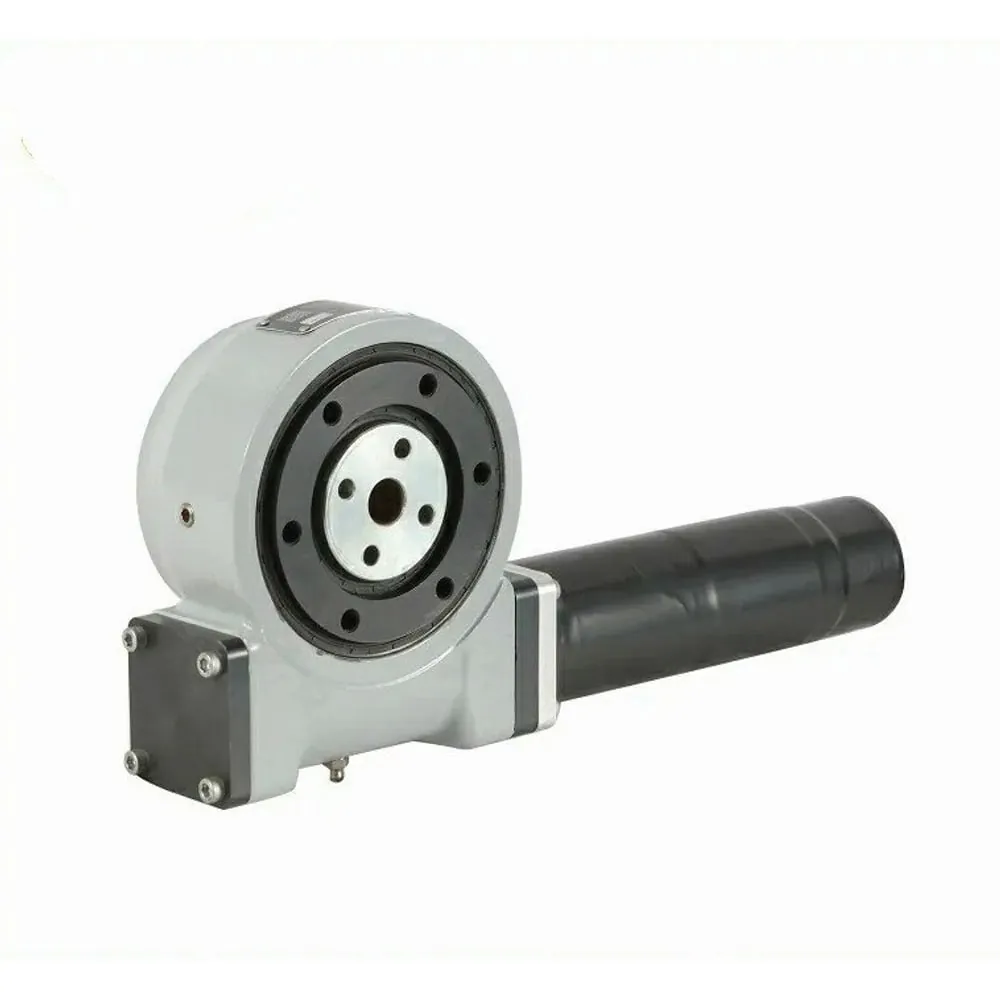

SC3 Slewing Drive with 24VDC Motor | Compact Worm Gear Rotary Actuator
SC3 Slewing Drive with 24VDC Motor The SC3 slewing drive is a compact worm gear rotary actuator integrated with a 24VDC planetary gear motor. It is desi...
View Details →Slewing Drive
Worm gear slewing drives and rotary actuators for solar trackers—including single-axis and dual-axis 24VDC motor options in 7-inch, 9-inch and 12-inch sizes—plus industrial positioning for construction and automation OEMs.
Typical applications
- Industrial Automation
- Solar Tracking
- Agricultural
- Solar trackers
- PV tracking systems
- Antenna positioning
- Industrial rotary actuation
- Light machinery and OEM platforms
Capability highlights
Online selection is limited for this category. Send your requirements for engineering confirmation.
Open Product SelectorProduct series and models

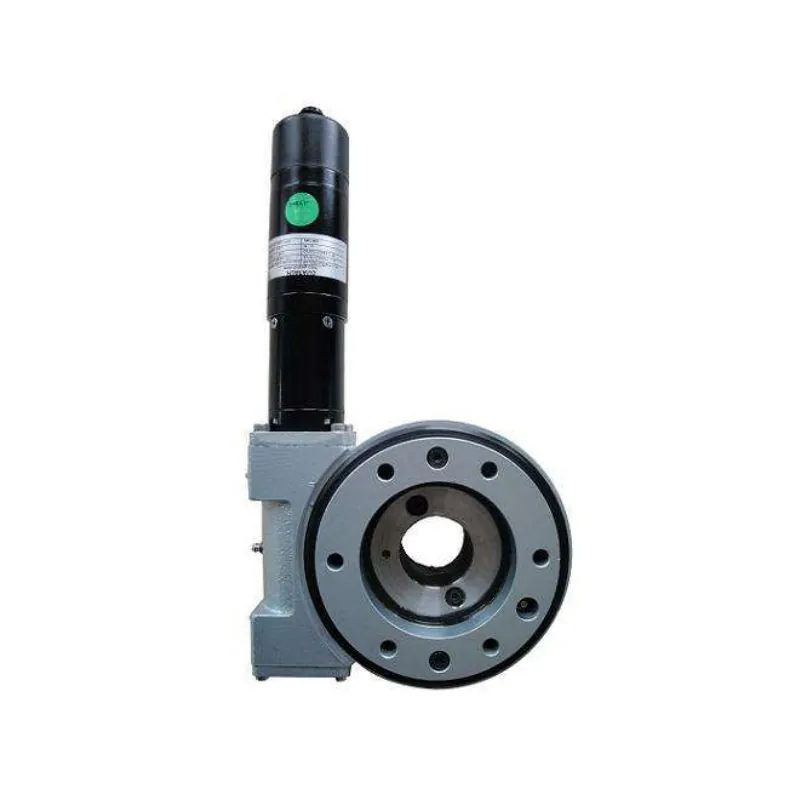

SC5 5-Inch Slewing Drive | 12VDC Compact Worm Gear Rotary Actuator for Solar Tracker
SC5 5-inch slewing drive with 12VDC motor interface. 720 N·m output torque, 5450 N·m holding torque, 62:1 ratio, ≤0.17° precision for solar trackers and compact rotary platforms.
View Details →

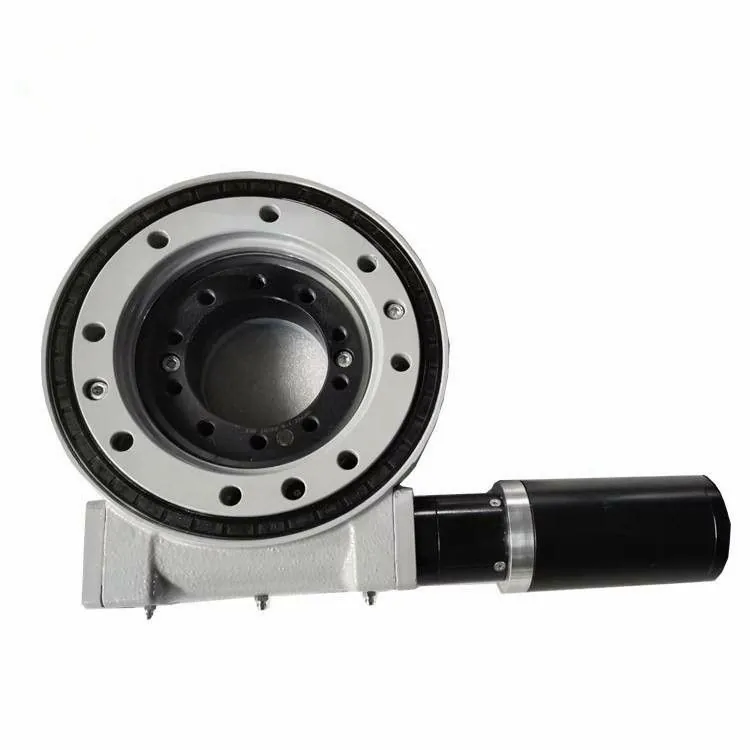

SC7 7-Inch Slewing Drive | 24VDC Worm Gear Rotary Actuator for Solar Tracker
SC7 7-inch slewing drive with 24VDC IP65 motor. 937 N·m output torque, 10400 N·m holding torque, 13500 N·m tilting moment, 71:1 ratio, ≤0.17° precision for solar trackers and rotary platforms.
View Details →

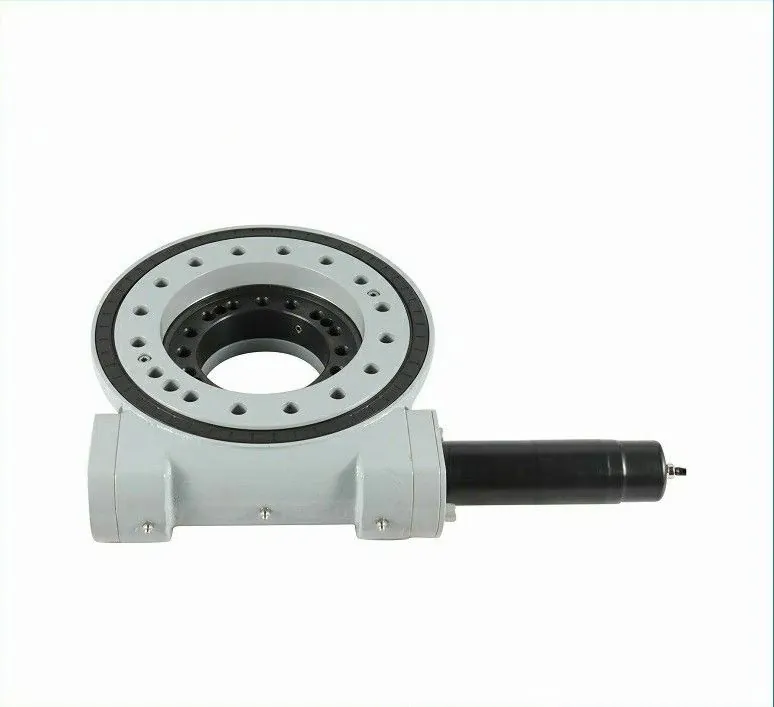

SC9 9-Inch Slewing Drive | 24VDC Worm Gear Rotary Actuator for Solar Tracker
SC9 9-inch slewing drive with 24VDC IP65 motor. 2.44 kN·m output torque, 38.7 kN·m holding torque, 33.9 kN·m tilting moment, 61:1 ratio, ≤0.17° precision for large solar trackers and rotary platforms.
View Details →

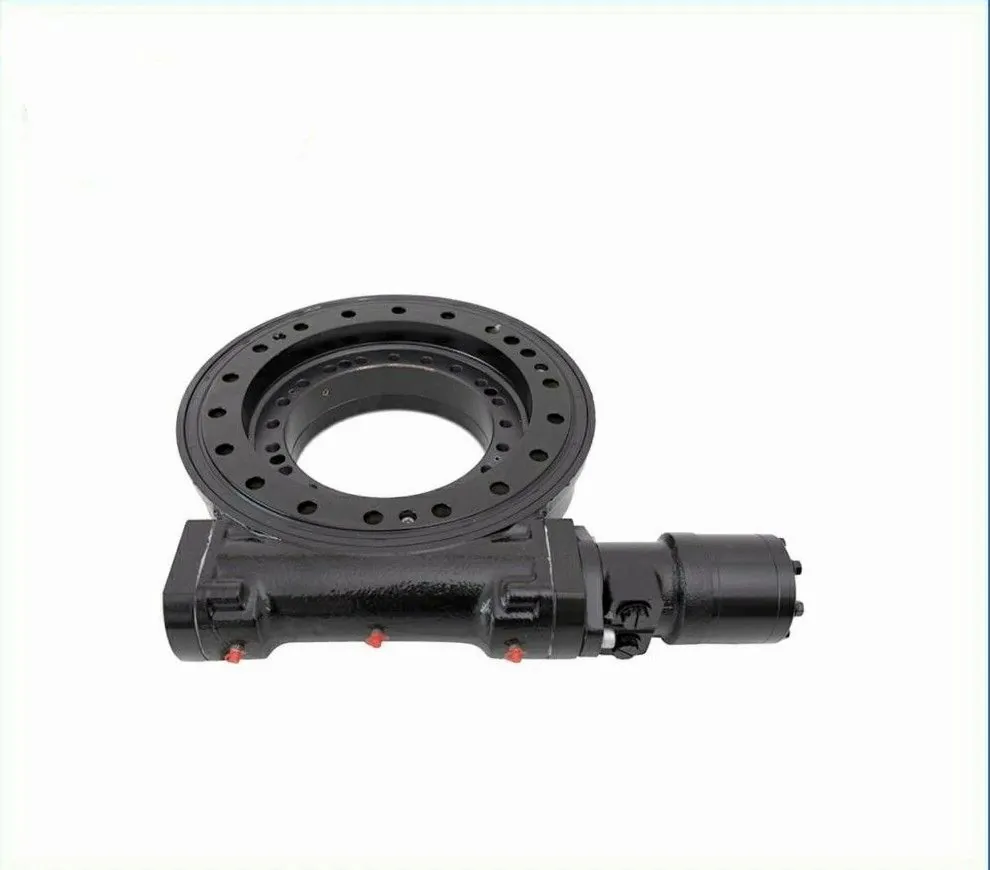

SC12 12-Inch Slewing Drive | 24VDC Worm Gear Rotary Actuator for Solar Tracker
SC12 12-inch slewing drive with 24VDC motor. 3120 N·m output torque, 43 kN·m holding torque, 54.3 kN·m tilting moment, 78:1 ratio, ≤0.17° precision for large solar trackers and rotary platforms.
View Details →

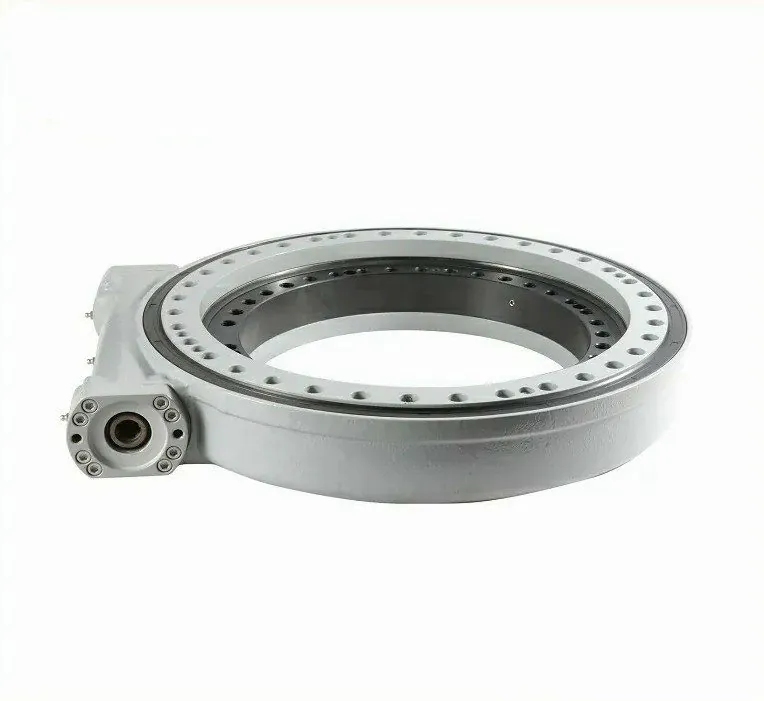

SC14 14-Inch Slewing Drive | 24VDC Worm Gear Rotary Actuator for Solar Tracker
SC14 14-inch slewing drive with 24VDC IP65 motor. 10.2 kN·m output torque, 48 kN·m holding torque, 67.8 kN·m tilting moment, 85:1 ratio, ≤0.17° precision for large solar trackers and rotary platforms.
View Details →

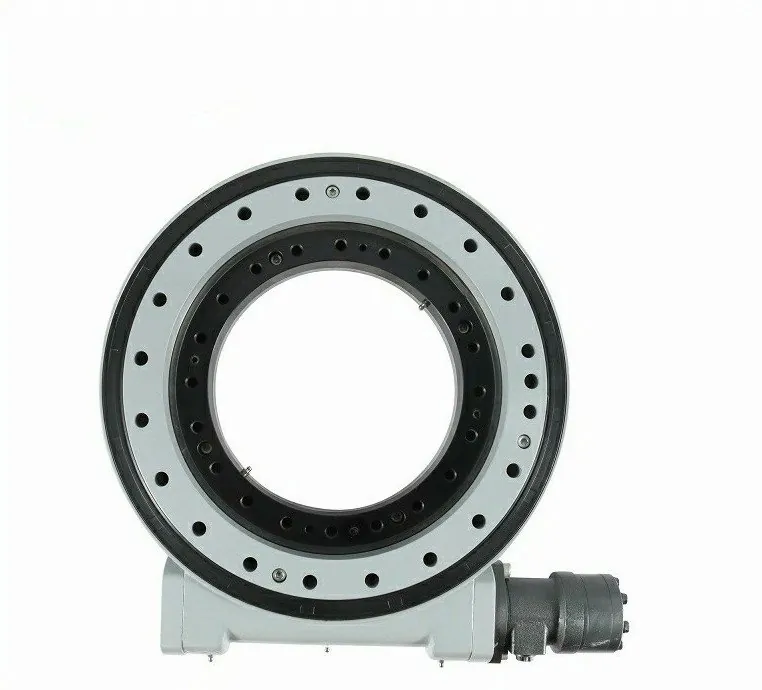

SC17 17-Inch Slewing Drive | 24VDC Worm Gear Rotary Actuator for Heavy Loads
SC17 17-inch slewing drive with 24VDC IP65 motor. 12.24 kN·m output torque, 72.3 kN·m holding torque, 135.6 kN·m tilting moment, 102:1 ratio, ≤0.17° precision for large solar trackers and heavy machinery.
View Details →

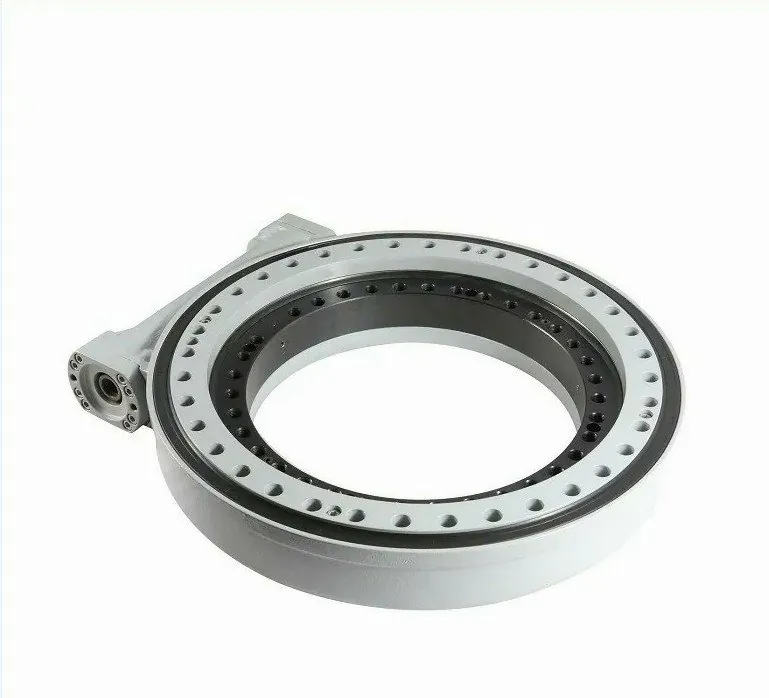

SC21 21-Inch Slewing Drive | 24VDC Worm Gear Rotary Actuator for Heavy Loads
SC21 21-inch slewing drive with 24VDC IP65 motor. 15 kN·m output torque, 105.8 kN·m holding torque, 203 kN·m tilting moment, 125:1 ratio, ≤0.15° precision for large solar trackers and heavy machinery.
View Details →

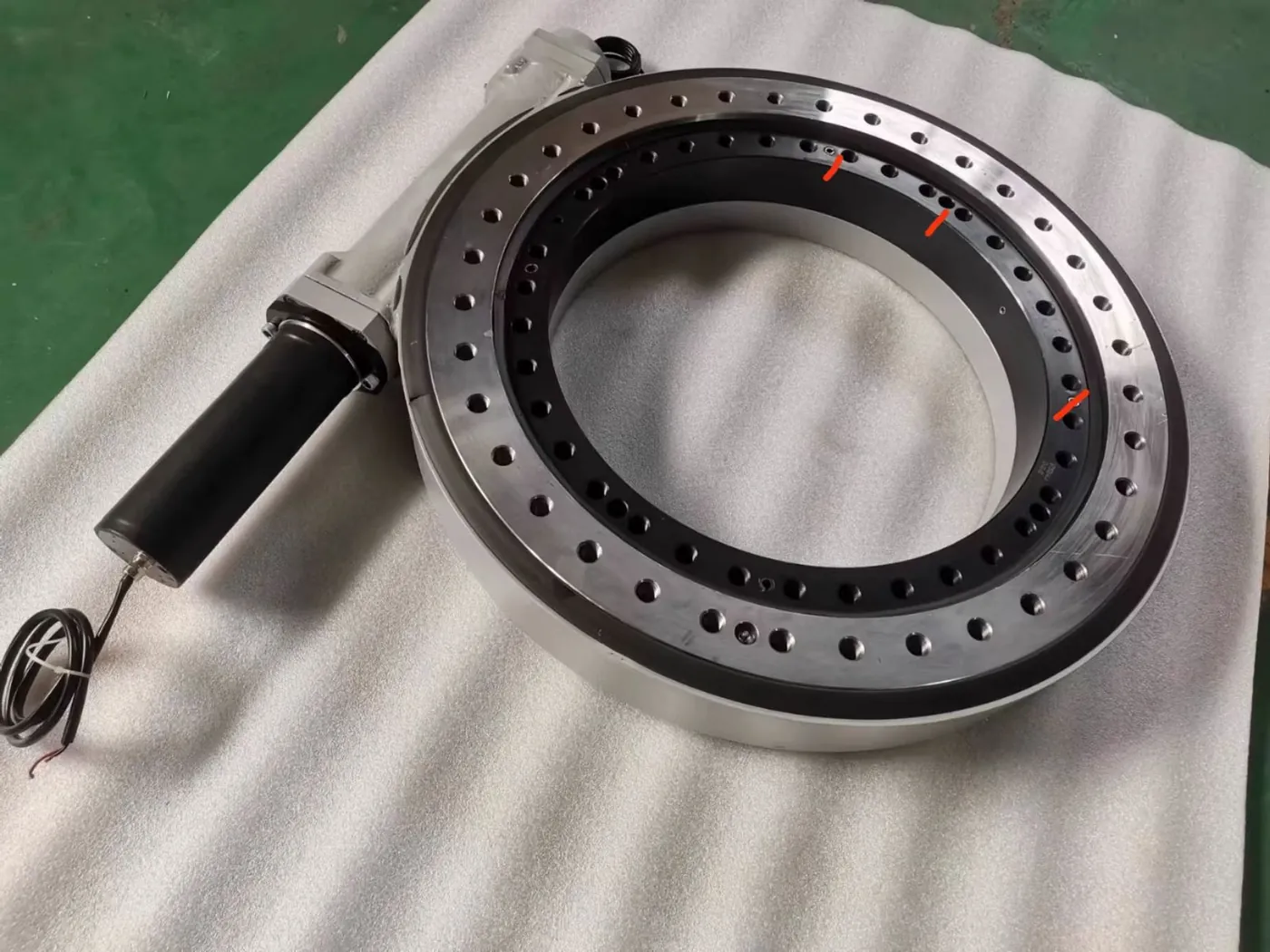

SC32 32-Inch Slewing Drive | Heavy-Duty Worm Gear Rotary Drive for Solar & Machinery
SC32 32-inch heavy-duty worm-gear slewing drive. 25 kN·m output torque, 190 kN·m holding torque, 347 kN·m tilting moment, 154:1 ratio, ≤0.17° precision for large solar trackers and construction machinery.
View Details →

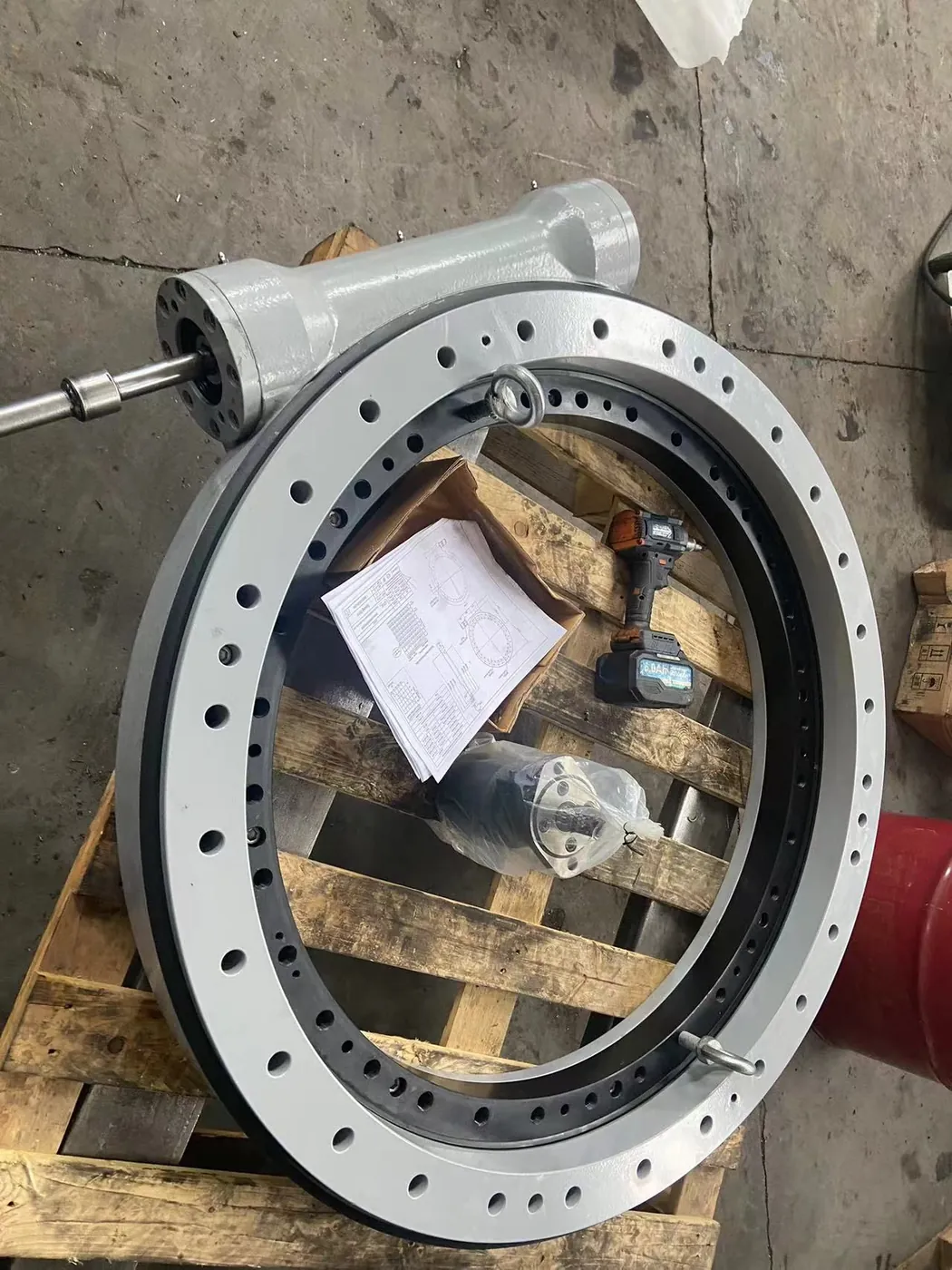

WH37 37-Inch Slewing Drive | Heavy-Duty Hydraulic Worm Gear Industrial Rotary Drive
WH37 37-inch hydraulic industrial slewing drive. 26,820 N·m output torque, 230 kN·m holding, 450 kN·m tilting, 150:1 ratio, ≤0.15° precision for turntables, lifting and heavy machinery.
View Details →

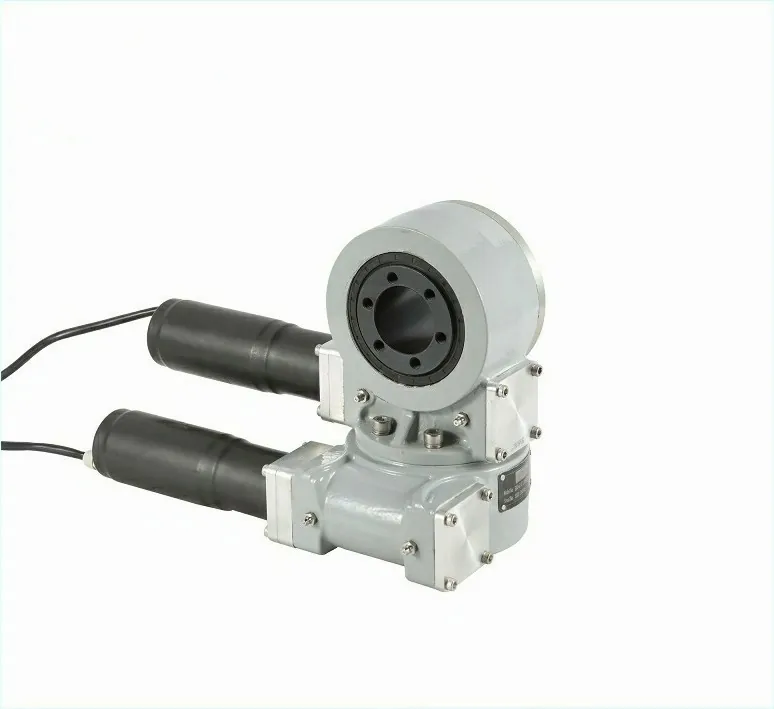

SVH3 3-Inch Dual Axis Slewing Drive | 12VDC Solar Tracker Worm Gear Rotary Actuator
SVH3 3-inch dual-axis slewing drive with 12VDC motor interfaces. 800 N·m output torque, 2200 N·m holding torque, 62:1 ratio, ≤0.1° precision for solar trackers and rotary platforms.
View Details →

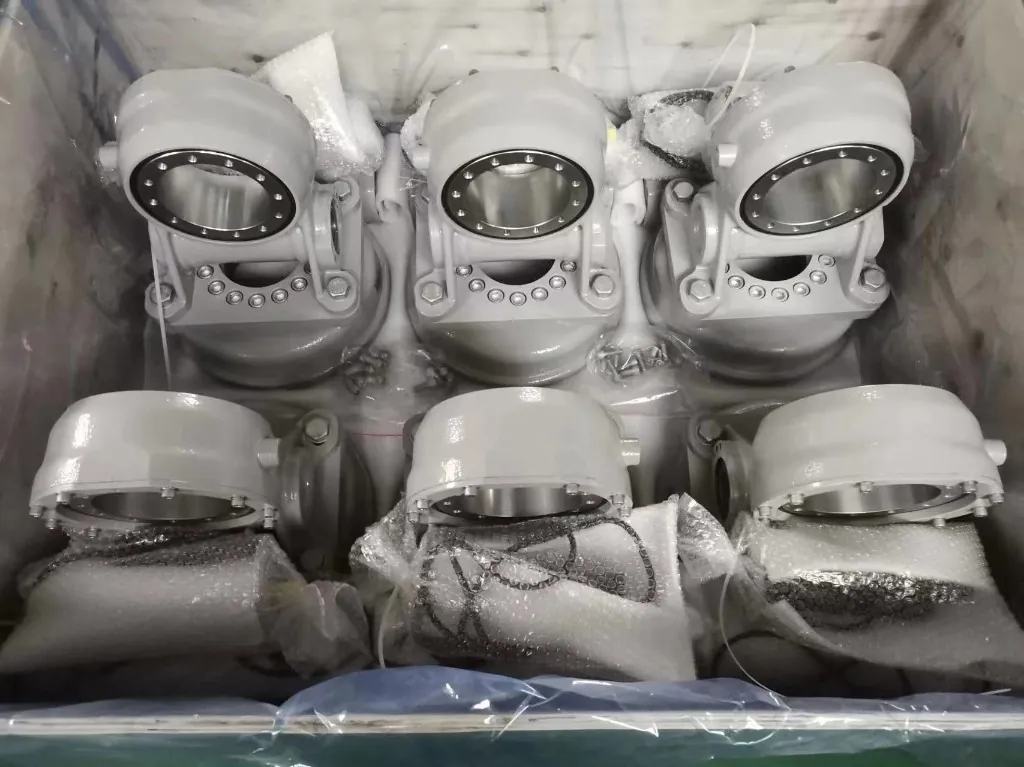

SVH7 7-Inch Dual Axis Slewing Drive | 24VDC Solar Tracker Worm Gear Rotary Actuator
SVH7 7-inch dual-axis slewing drive with 24VDC IP65 motors. Elevation torque 2100 N·m, holding up to 42 kN·m, ratios 71:1 / 60:1, ≤0.17° precision for solar trackers and rotary platforms.
View Details →

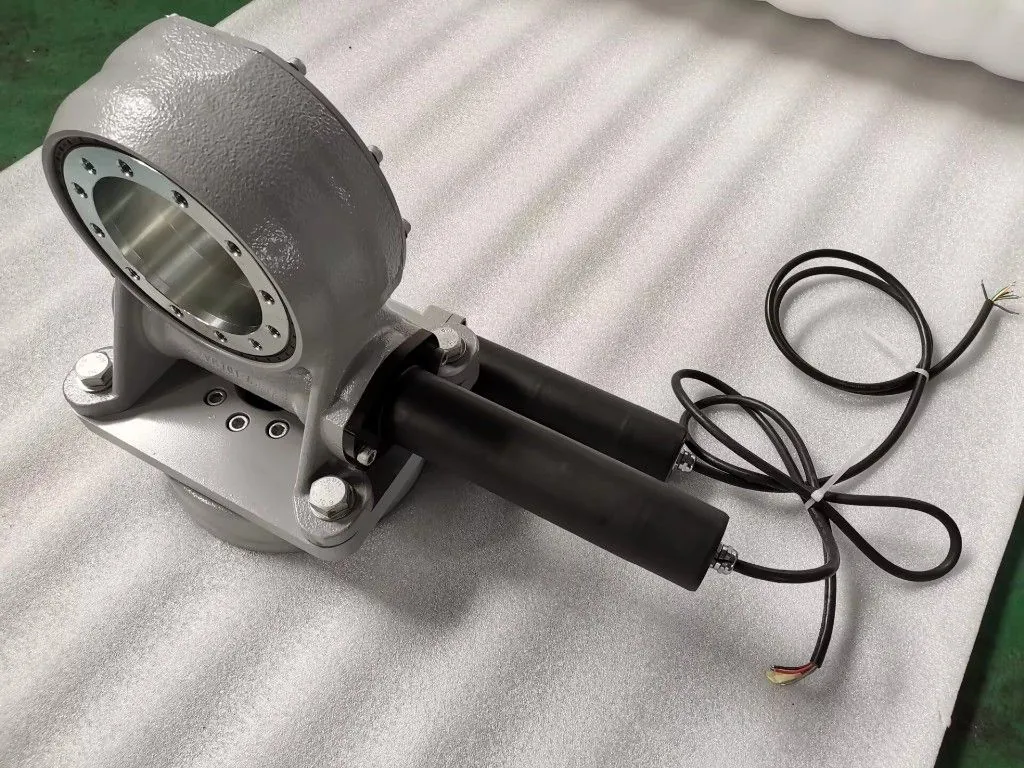

SVH9 9-Inch Dual Axis Slewing Drive | 24VDC Solar Tracker Worm Gear Rotary Actuator
SVH9 9-inch dual-axis slewing drive with 24VDC IP65 motors. 7320 N·m output torque, elevation holding up to 56 kN·m, 61:1 ratios, ≤0.17° precision for large solar trackers and rotary platforms.
View Details →

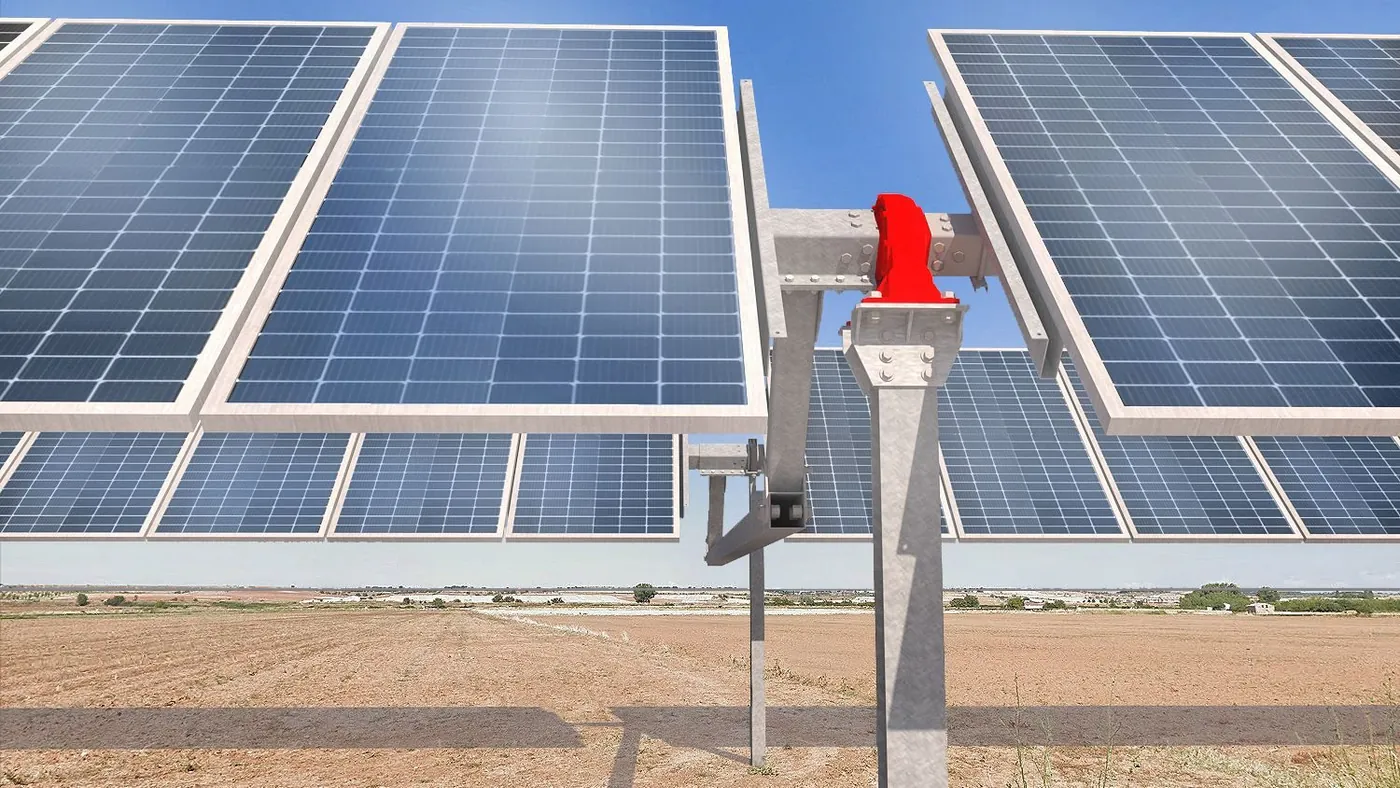

VH7 7-Inch Slewing Drive for Solar Tracker | 24VDC Vertical Worm Gear Drive
VH7 7-inch vertical slewing drive for solar trackers. 24VDC IP65, 6300 N·m torque, 45 kN·m holding, 60:1 ratio, ±60° hard limit, ≤0.2° precision for single-axis PV tracking systems.
View Details →

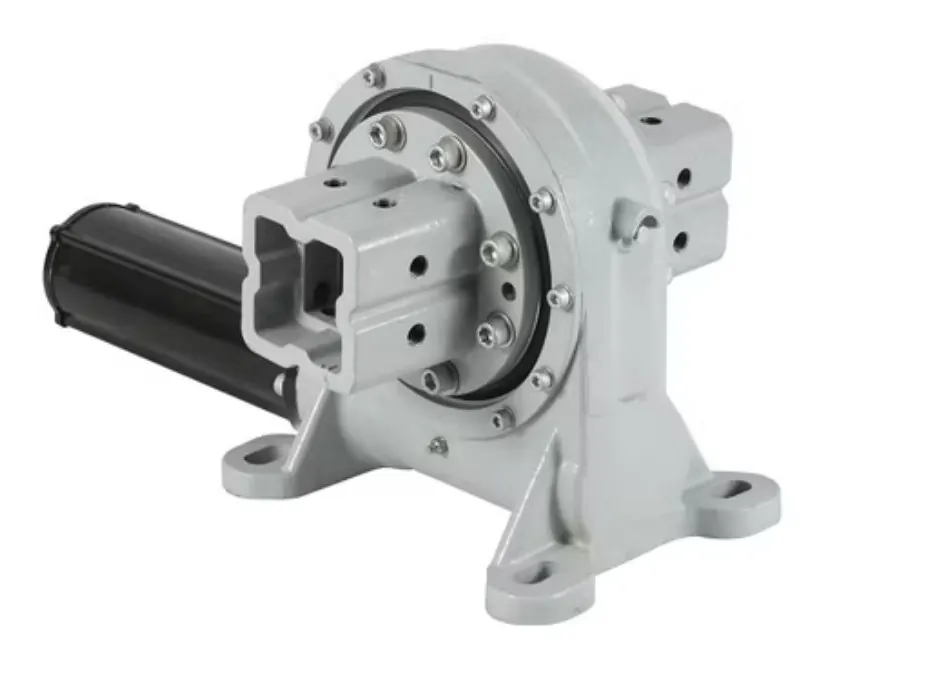

VH9 9-Inch Slewing Drive for Solar Tracker | 24VDC Vertical Worm Gear Drive
VH9 9-inch vertical slewing drive for solar trackers. 6405 N·m torque, 56 kN·m holding, 61:1, ±60° hard limit. Standard 24VDC IP65 motor; 36V / 48V / AC options for single-axis PV systems.
View Details →

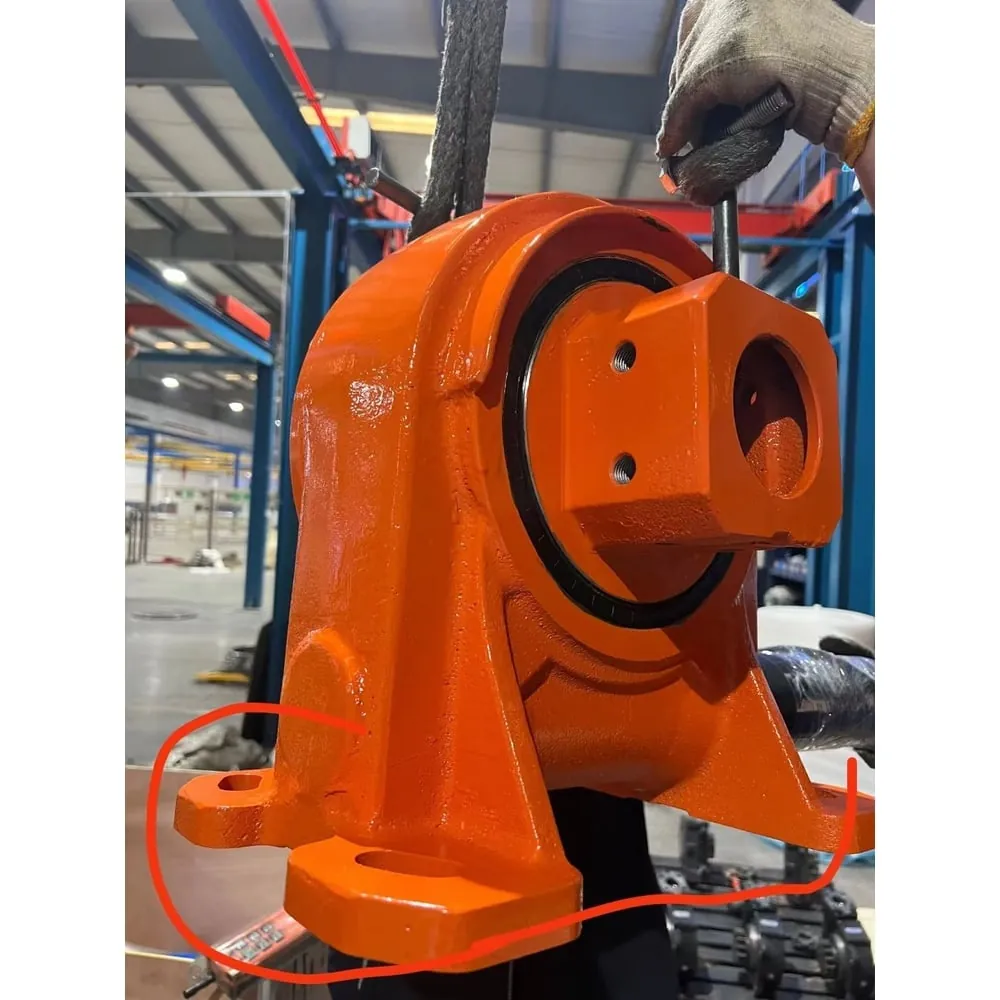

VH3/VH5/VH7/VH9 slewing drive for solar tracker
High Load Capacity: Capable of handling substantial weights with ease. Precision Engineering: Ensures accurate rotational movement for various applicati...
View Details →

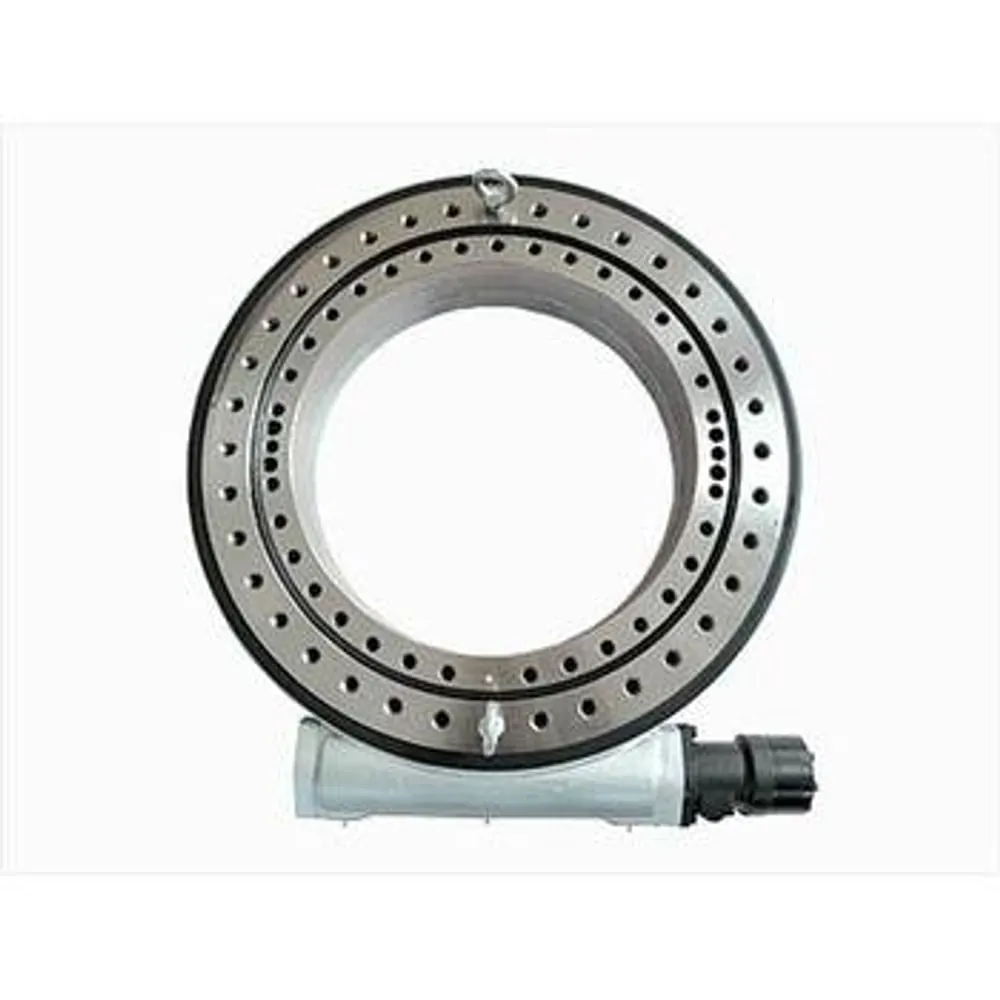

WEA3/WEA7/WEA/9/WEA12/WEA14/WEA17/WEA21/WEA25/WEA28
Our cutting-edge rotary device is engineered to deliver superior performance and versatility in a compact and lightweight package. Featuring an innovati...
View Details →

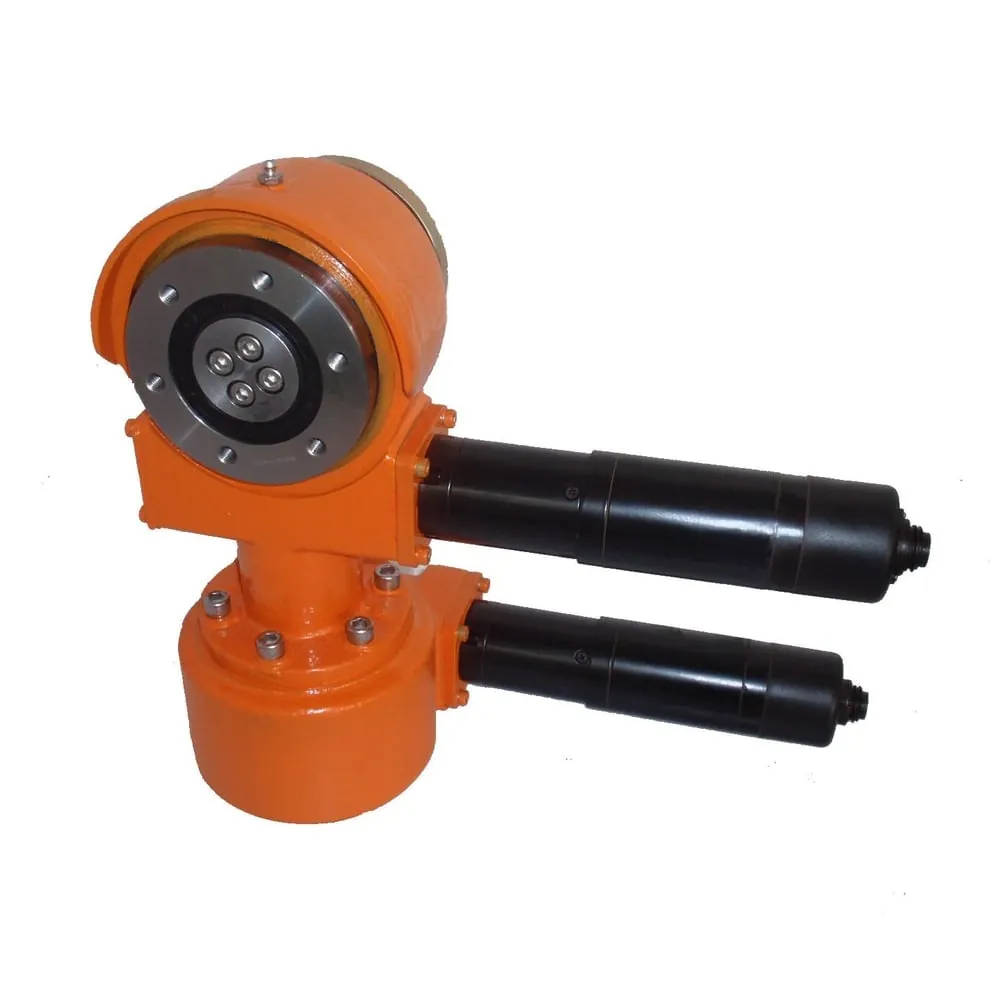

SDE3/SDE7/SDE14 Dual-axis Slewing drive
High Output Torque: Enhanced performance for more challenging applications. Excellent Tracking Precision: Superior accuracy for maximum efficiency. Anti...
View Details →
SE3/SE7/SE9/SE12/SE14/SE17/SE21/SE25/SE28 Slewing Drive
SE Series Slewing Drive Benefits High Load Capacity : Capable of safely handling substantial axial, radial, and tilting moment loads. Smooth and Precise...
View Details →Category comparison
Confirmed catalog capabilities. Model/configuration dependent — verify the SKU specification table.
Open category comparisonEngineering guide
Requirements to provide for engineering review
- Output torque
- Holding torque
- Gear ratio
Companion product categories
Confirm product-level compatibility with engineering before ordering.
OEM / ODM capability
Share the application, required ratings, mounting constraints, control requirements and annual quantity. Elerover will review the published configuration and identify items that require engineering confirmation.
FAQ
What information is needed to select this product category?
Provide the required operating ratings, installation constraints, duty, control method, environment and quantity. Use the selection fields above where reliable data is available.
What if an online specification is missing?
Missing, invalid or conflicting values are not used as defaults. Send the requirement to engineering for confirmation.
