Slewing Drive
Model SC3-62B-RC-24H3033

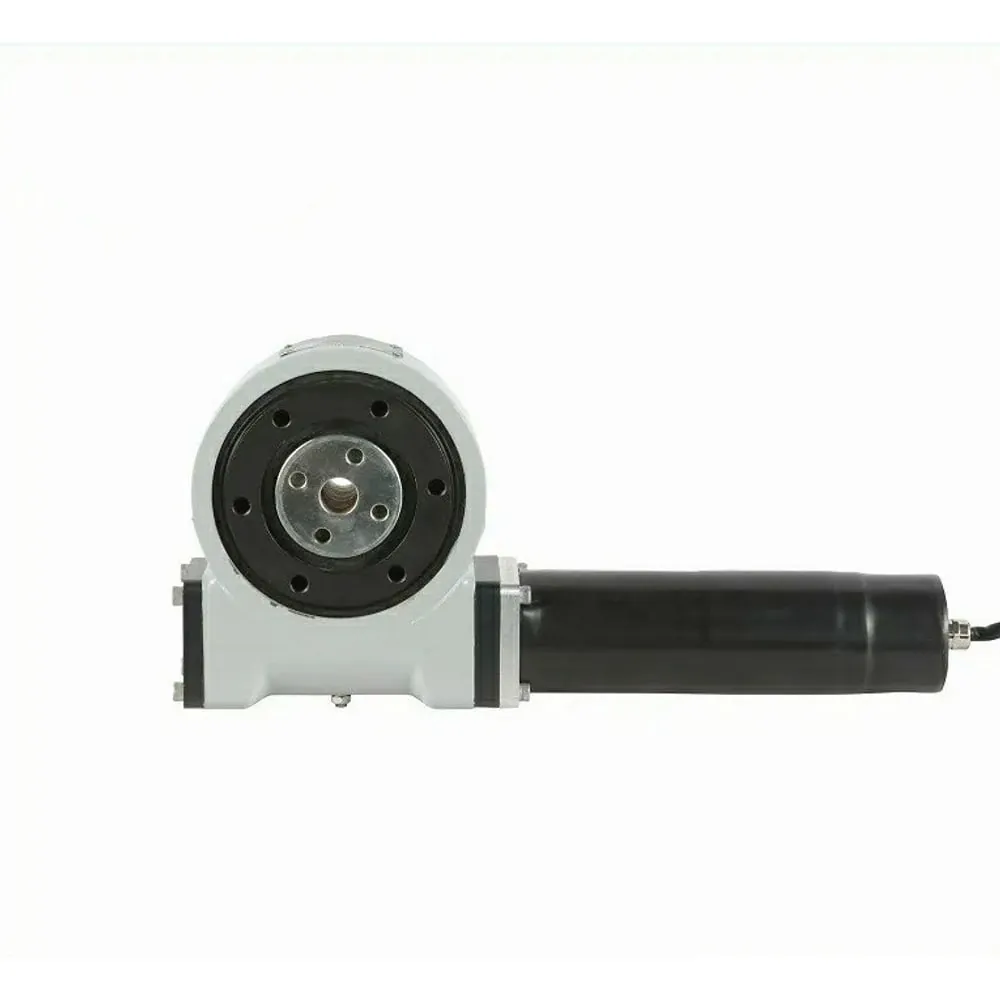

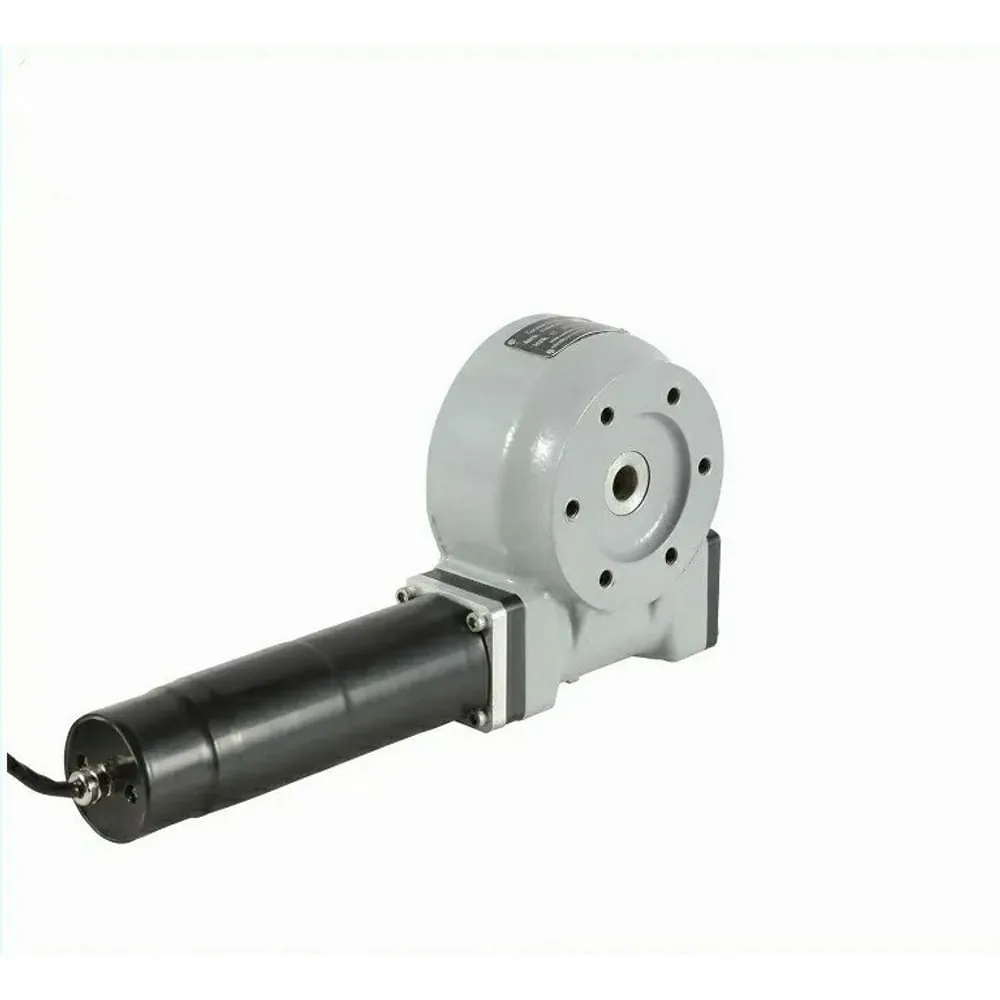

SC3 Slewing Drive with 24 V DC Motor | Compact Worm Gear Rotary Actuator
SC3 Slewing Drive with 24VDC Motor | Compact Worm Gear Rotary Actuator from Elerover.
Key specifications
- Output torque
- 818 N·m
- Holding torque
- 2200 N·m
- Tilting moment torque
- 1100 N·m
- Axial load
- 30 kN
Product overview
SC3 Slewing Drive with 24VDC Motor | Compact Worm Gear Rotary Actuator from Elerover. This slewing drive provides controlled rotary torque for tracking, positioning and heavy rotary platforms.
- Output torque
- 818 N·m
- Holding torque
- 2200 N·m
- Tilting moment torque
- 1100 N·m
- Axial load
- 30 kN
- Radial load
- 15 kN
- Gear ratio
- 575:1
Applications
- Industrial Automation
- Solar Tracking
- Agricultural
Benefits
- Integrated slewing bearing and worm gear transmission.
- Compact design for space-limited rotary motion applications.
- 24VDC planetary reducer motor for controlled low-speed operation.
- High holding torque for stable position retention.
- IP65 motor protection class for demanding working environments.
- Suitable for customized mounting and motion control systems.
Technical specifications
| Drive type | Electric Slewing Drive |
|---|---|
| Output torque | 818 N·m |
| Holding torque | 2200 N·m |
| Tilting moment torque | 1100 N·m |
| Axial load | 30 kN |
| Radial load | 15 kN |
| Gear ratio | 575:1 |
| Backlash | ≤ 0.17° |
| IP rating | IP65 |

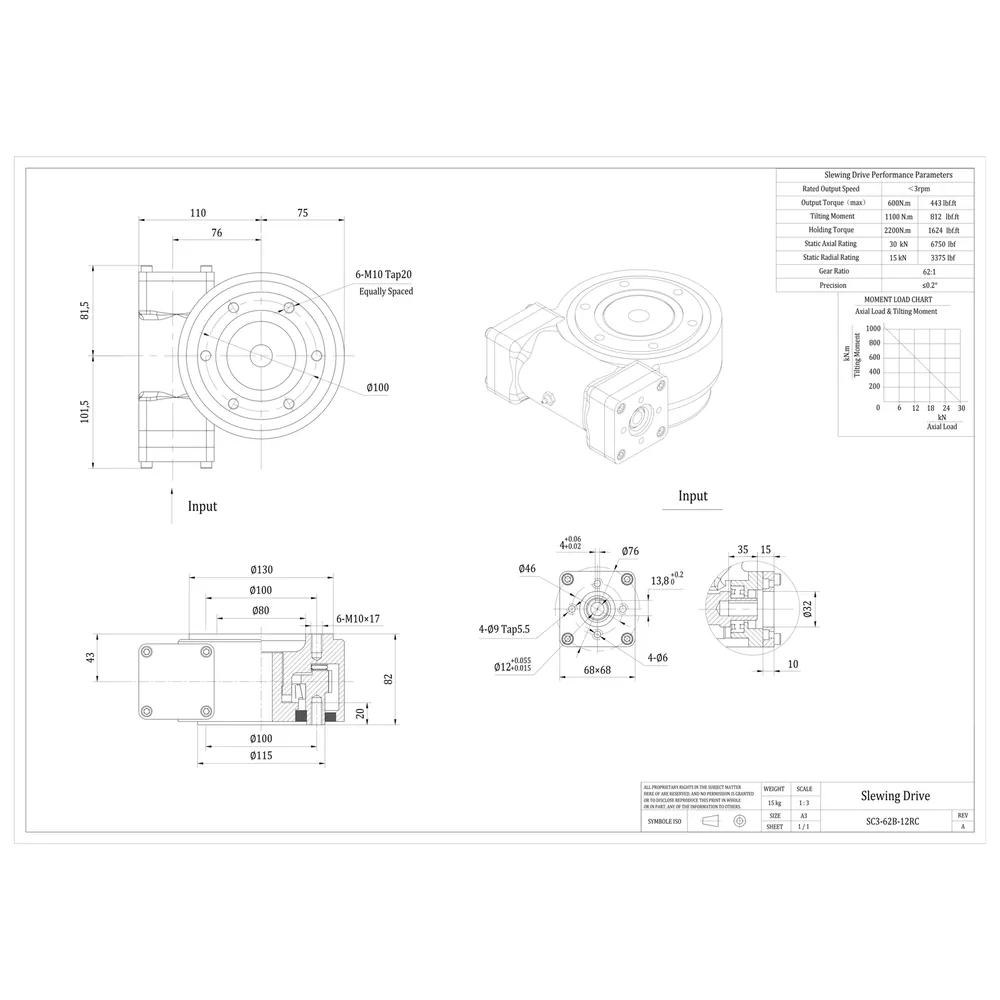

Configuration options
| Parameter | Metric Value | Imperial Value |
|---|---|---|
| Rated Output Speed | 0.05 rpm | — |
| Output Torque | 818 N·m | 603 lbf·ft |
| Tilting Moment | 1100 N·m | 812 lbf·ft |
| Holding Torque | 2200 N·m | 1624 lbf·ft |
| Static Axial Rating | 30 kN | 6750 lbf |
| Static Radial Rating | 15 kN | 3375 lbf |
| Dynamic Axial Rating | 9.6 kN | 2160 lbf |
| Dynamic Radial Rating | 8.4 kN | 1890 lbf |
| Gear Ratio | 62:1 | — |
| Precision | ≤ 0.17° | — |
Configuration options
| Parameter | Unit | Value / Description |
|---|---|---|
| Output Type | Voltage output | — |
| Pull-up Resistor | Yes | — |
| Output Signal | 2 square wave signals | — |
| Phase Quadrature | 90° | — |
| Impulses per Revolution | ppr | 2 channels A and B |
| Operating Voltage | VDC | DC 5-24 |
| Operating Current | mA | Max. 12 |
| Deviation of Pulse Width | Max. 15° | — |
| Deviation of Phase Shift | Max. 15° | — |
| Output Voltage, Low Level | VDC | Max. 0.4 V, 20 mA |
| Signal Rise Time | ns | 85 |
| Signal Decay Time | ns | 60 |
| Operation Temperature | °C | -40 to +85 |
Request technical documents
FAQ
What is the SC3?
The SC3 is an Elerover slewing drive rated IP65.
Does Elerover manufacture the SC3?
Yes. Elerover is a slewing drive manufacturer and supplier. Share your application requirements and quantity for a factory quote on this model.
What are the key specifications of the SC3?
Key ratings from the product specifications include voltage 24V, load 818 N, protection IP65. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SC3?
Send load, stroke, voltage, IP rating, duty cycle and quantity via the contact form or WhatsApp.
Request an OEM quote
Share force, stroke, voltage and quantity. Elerover will map your RFQ to a published series or OEM configuration.
