Slewing Drive
Model SVH3-62B-12RC / SVH3-62-12RC

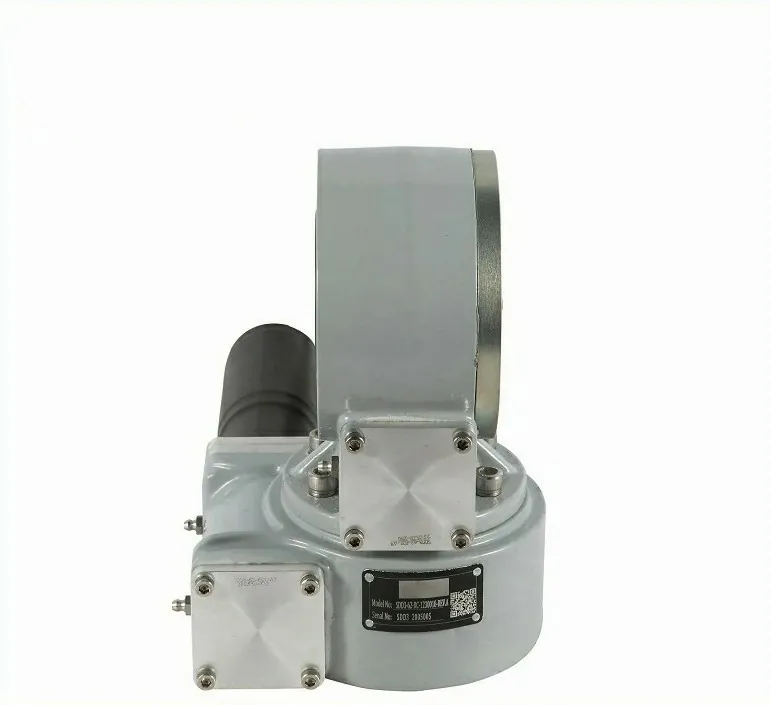

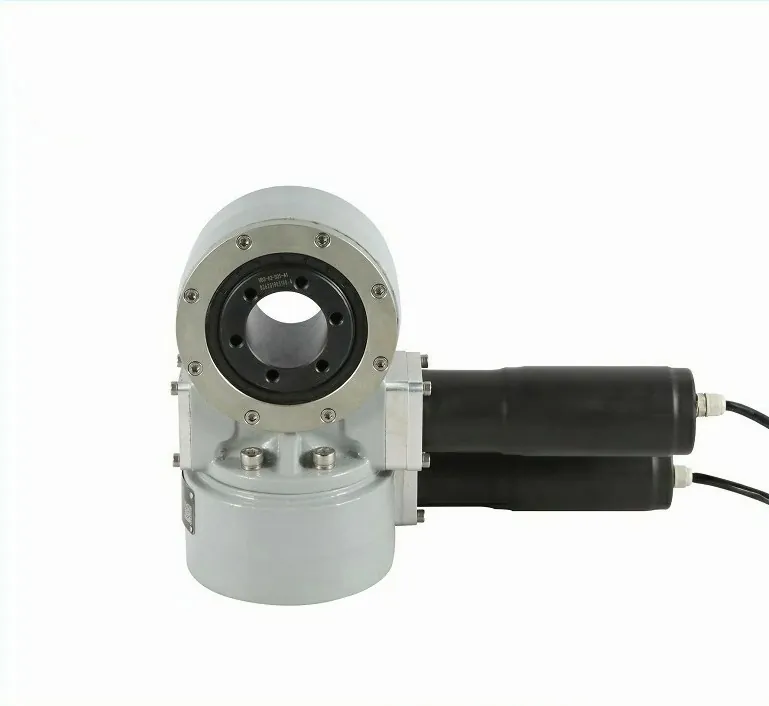

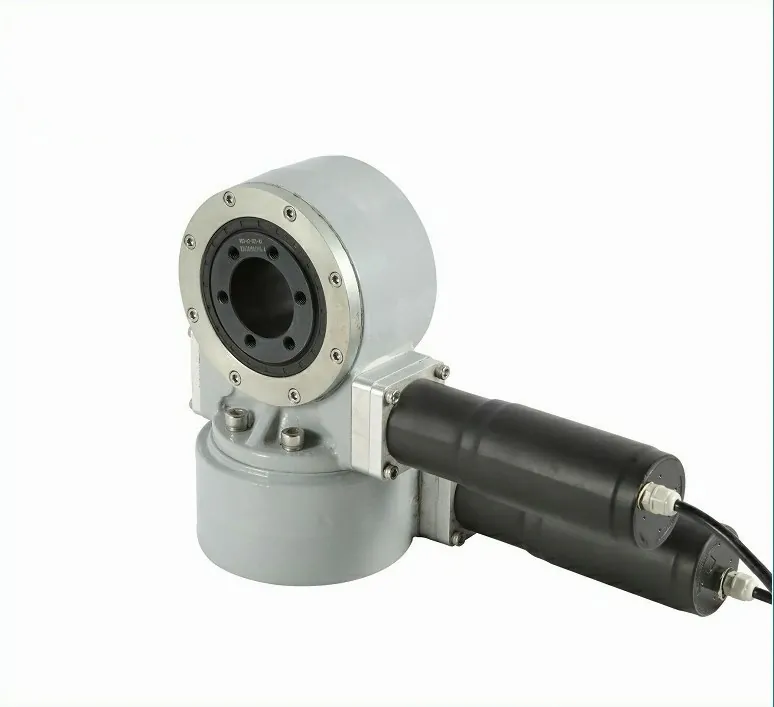

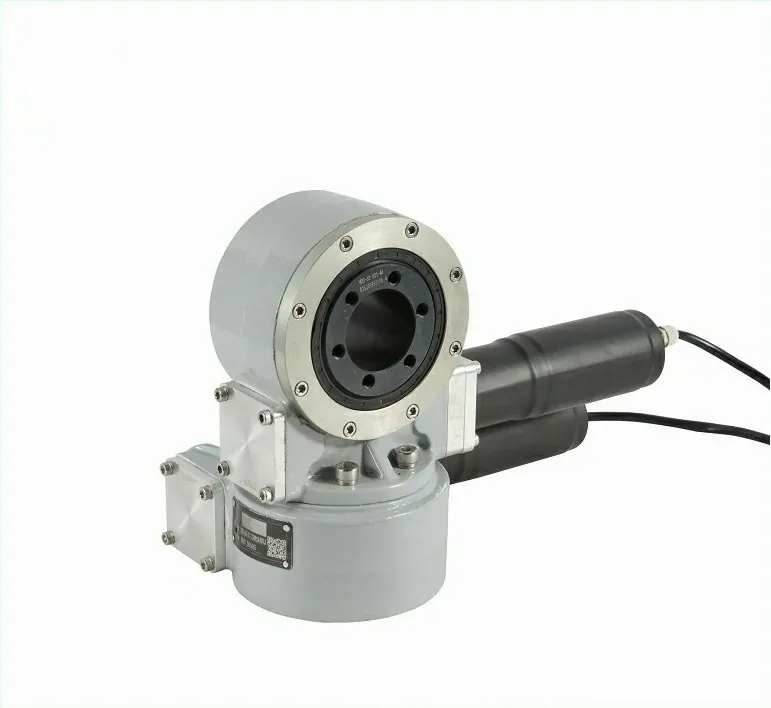

SVH3 3-Inch Dual Axis Slewing Drive | 12 V DC Solar Tracker Worm Gear Rotary Actuator
SVH3 3-Inch Dual Axis Slewing Drive | 12VDC Solar Tracker Worm Gear Rotary Actuator from Elerover.
Key specifications
- Output torque
- 800 N·m / 590 lbf·ft
- Holding torque
- 2200 N·m / 1623 lbf·ft
- Tilting moment torque
- 1200 N·m / 888 lbf·ft
- Axial load
- 32 kN / 7200 lbf
Product overview
SVH3 3-Inch Dual Axis Slewing Drive | 12VDC Solar Tracker Worm Gear Rotary Actuator from Elerover. This slewing drive provides controlled rotary torque for tracking, positioning and heavy rotary platforms.
- Output torque
- 800 N·m / 590 lbf·ft
- Holding torque
- 2200 N·m / 1623 lbf·ft
- Tilting moment torque
- 1200 N·m / 888 lbf·ft
- Axial load
- 32 kN / 7200 lbf
- Radial load
- 18 kN / 4050 lbf
- Gear ratio
- 62:1
Applications
- Dual-axis solar trackers
- PV / CPV / CSP tracking systems
- Antenna and satellite positioning
- Industrial rotary platforms
- Camera and sensor gimbals
Benefits
- 3-inch dual-axis slewing drive for azimuth and elevation motion
- Output torque 800 N·m / holding torque 2200 N·m
- Gear ratio 62:1 with precision ≤ 0.1°
- Rated output speed under 3 rpm
- 12VDC motor interface family (12RC)
- Compact integrated housing for solar tracker and OEM platforms
Technical specifications
| Drive type | 3-inch dual-axis electric slewing drive |
|---|---|
| Output torque | 800 N·m / 590 lbf·ft |
| Holding torque | 2200 N·m / 1623 lbf·ft |
| Tilting moment torque | 1200 N·m / 888 lbf·ft |
| Axial load | 32 kN / 7200 lbf |
| Radial load | 18 kN / 4050 lbf |
| Gear ratio | 62:1 |
| Backlash | ≤ 0.1° |
| Motor voltage | 12 V DC |
Configuration options
| Parameter | Metric Value | Imperial Value |
|---|---|---|
| Rated Output Speed | < 3 rpm | — |
| Output Torque | 800 N·m | 590 lbf·ft |
| Tilting Moment | 1200 N·m | 888 lbf·ft |
| Holding Torque | 2200 N·m | 1623 lbf·ft |
| Static Axial Rating | 32 kN | 7200 lbf |
| Static Radial Rating | 18 kN | 4050 lbf |
| Dynamic Axial Rating | 10 kN | 2250 lbf |
| Dynamic Radial Rating | 9 kN | 2025 lbf |
| Gear Ratio | 62:1 | — |
| Precision | ≤ 0.1° | — |
Request technical documents
FAQ
What is the SVH3?
The SVH3 is an Elerover slewing drive for industrial and OEM motion projects.
Does Elerover manufacture the SVH3?
Yes. Elerover is a slewing drive manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SVH3?
Key ratings from the product specifications include voltage 12V, load 800 N. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SVH3?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
Request an OEM quote
Share force, stroke, voltage and quantity. Elerover will map your RFQ to a published series or OEM configuration.
