Slewing Drive

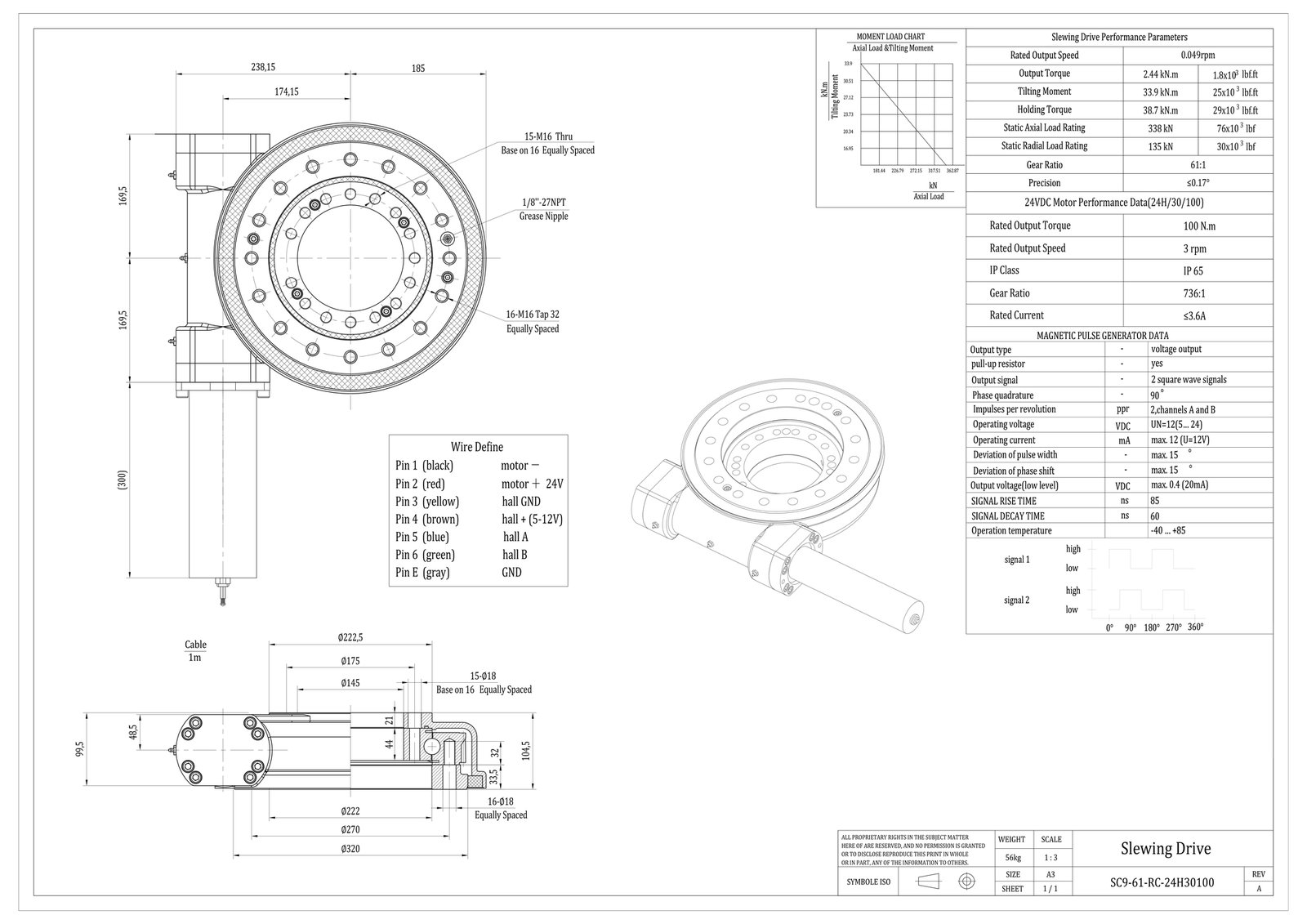

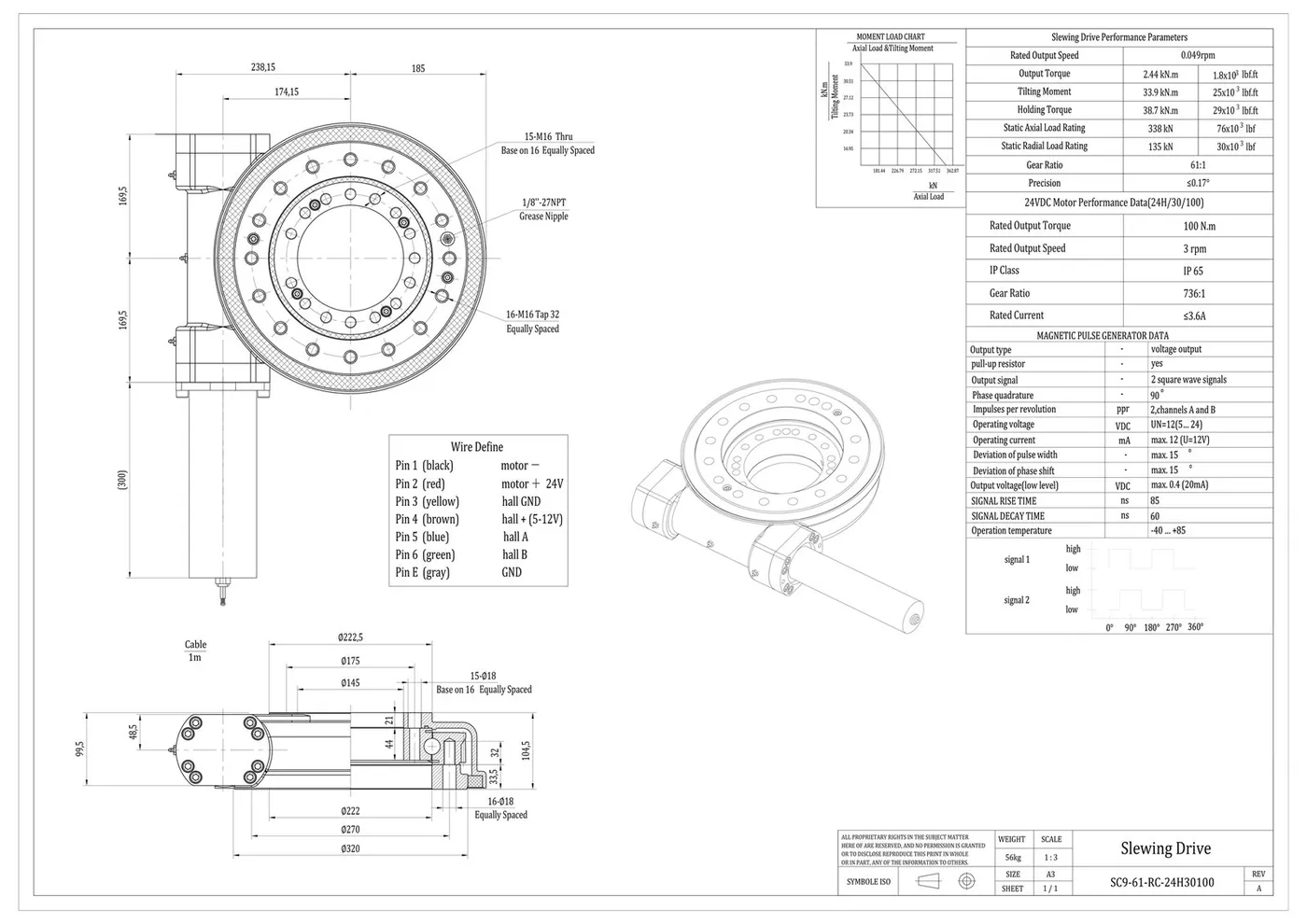

Model SC9-61-RC-24H30100

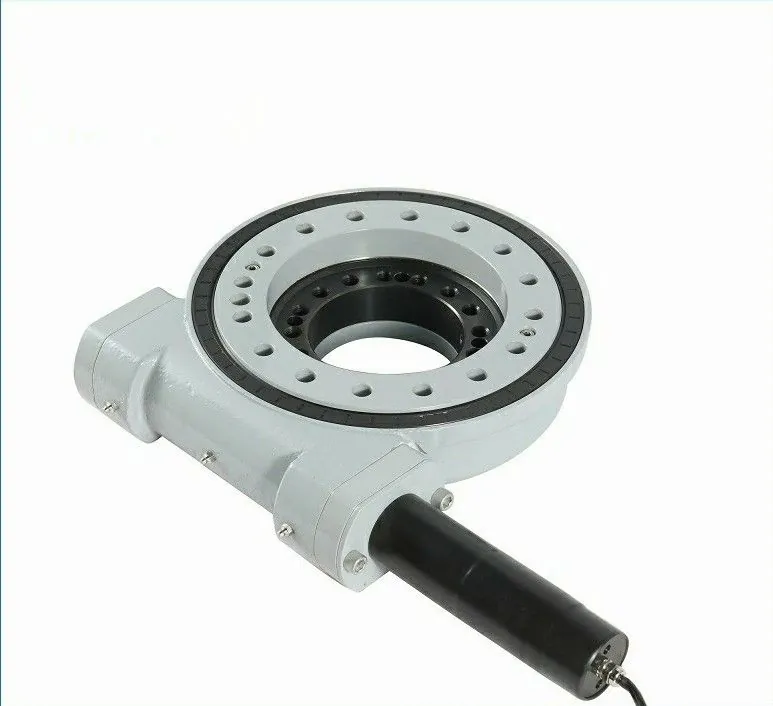

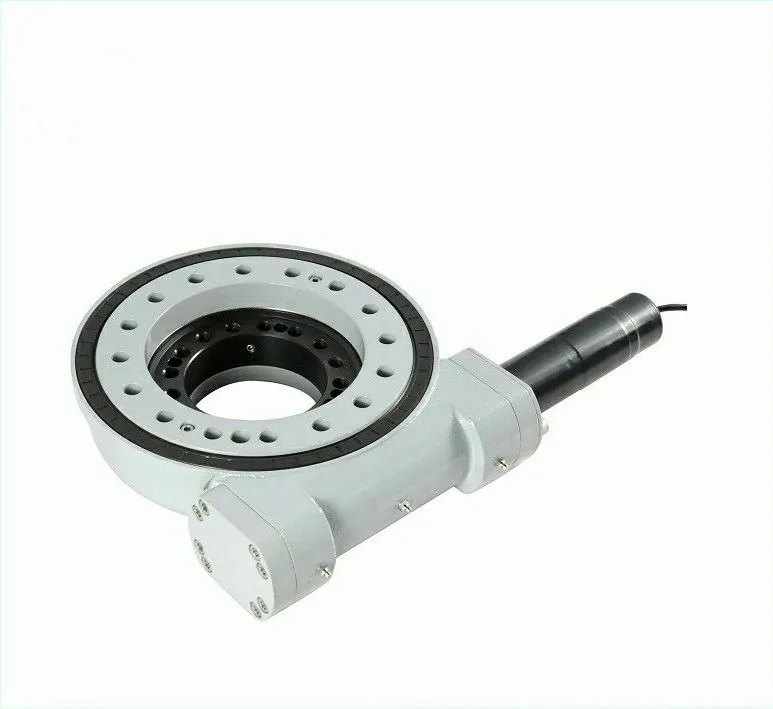

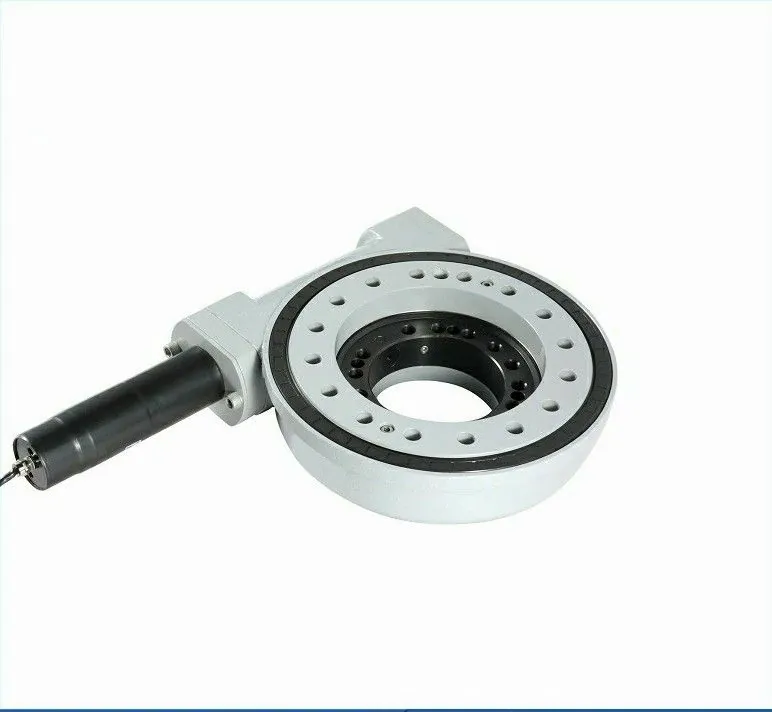

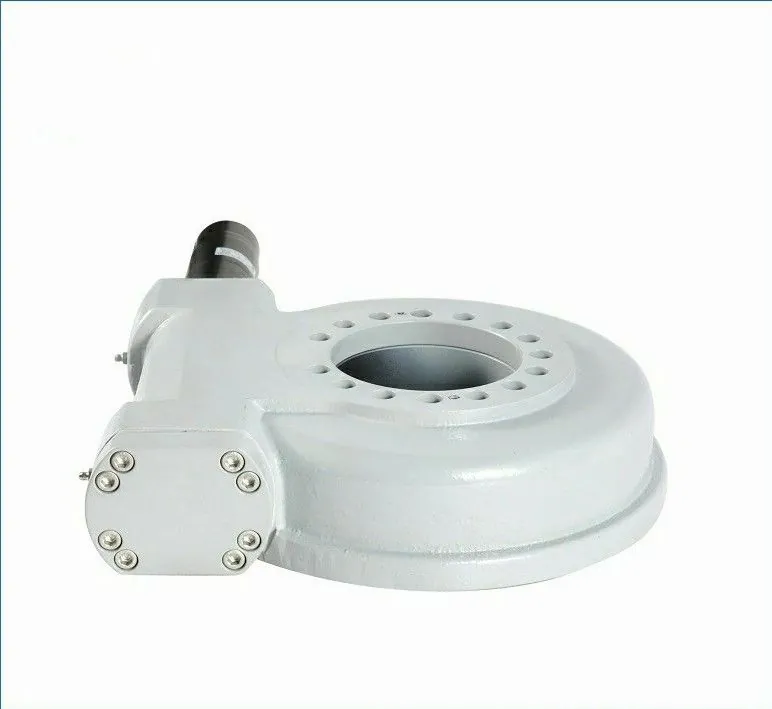

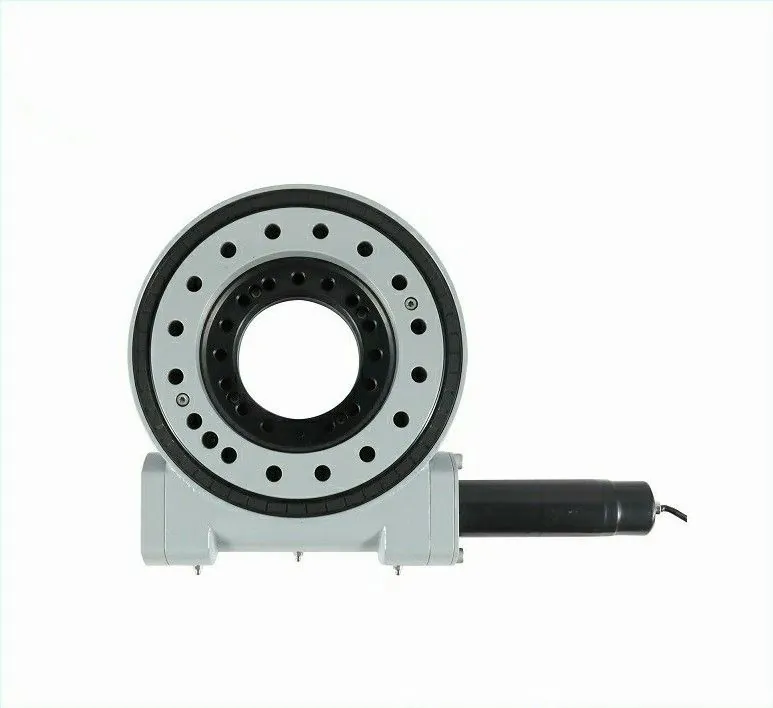

SC9 9-Inch Slewing Drive | 24 V DC Worm Gear Rotary Actuator for Solar Tracker
SC9 9-Inch Slewing Drive | 24VDC Worm Gear Rotary Actuator for Solar Tracker from Elerover.
Key specifications
- Output torque
- 2.44 kN·m / 1.8×10³ lbf·ft
- Holding torque
- 38.7 kN·m / 29×10³ lbf·ft
- Tilting moment torque
- 33.9 kN·m / 25×10³ lbf·ft
- Axial load
- 338 kN / 76×10³ lbf
Product overview
SC9 9-Inch Slewing Drive | 24VDC Worm Gear Rotary Actuator for Solar Tracker from Elerover. This slewing drive provides controlled rotary torque for tracking, positioning and heavy rotary platforms.
- Output torque
- 2.44 kN·m / 1.8×10³ lbf·ft
- Holding torque
- 38.7 kN·m / 29×10³ lbf·ft
- Tilting moment torque
- 33.9 kN·m / 25×10³ lbf·ft
- Axial load
- 338 kN / 76×10³ lbf
- Radial load
- 135 kN / 30×10³ lbf
- Gear ratio
- 61:1
Applications
- Large solar trackers
- PV / CSP tracking systems
- Antenna positioning
- Industrial rotary actuation
- OEM motion platforms
Benefits
- 9-inch worm-gear slewing drive with 24VDC IP65 motor
- Output torque 2.44 kN·m / holding torque 38.7 kN·m
- Tilting moment 33.9 kN·m
- Gear ratio 61:1 with precision ≤ 0.17°
- Rated output speed 0.049 rpm
- Hall A/B feedback for closed-loop positioning
Technical specifications
| Drive type | 9-inch electric worm-gear slewing drive |
|---|---|
| Output torque | 2.44 kN·m / 1.8×10³ lbf·ft |
| Holding torque | 38.7 kN·m / 29×10³ lbf·ft |
| Tilting moment torque | 33.9 kN·m / 25×10³ lbf·ft |
| Axial load | 338 kN / 76×10³ lbf |
| Radial load | 135 kN / 30×10³ lbf |
| Gear ratio | 61:1 |
| Backlash | ≤ 0.17° |
| Motor voltage | 24 V DC |
| IP rating | IP65 |
Configuration options
| Parameter | Metric Value | Imperial Value |
|---|---|---|
| Rated Output Speed | 0.049 rpm | — |
| Output Torque | 2.44 kN·m | 1.8×10³ lbf·ft |
| Tilting Moment | 33.9 kN·m | 25×10³ lbf·ft |
| Holding Torque | 38.7 kN·m | 29×10³ lbf·ft |
| Static Axial Rating | 338 kN | 76×10³ lbf |
| Static Radial Rating | 135 kN | 30×10³ lbf |
| Gear Ratio | 61:1 | — |
| Precision | ≤ 0.17° | — |
| Approx. Weight | 56 kg | — |
Request technical documents
FAQ
What is the SC9?
The SC9 is an Elerover slewing drive rated IP65.
Does Elerover manufacture the SC9?
Yes. Elerover is a slewing drive manufacturer and supplier. Share your application requirements and quantity for a factory quote on this model.
What are the key specifications of the SC9?
Key ratings from the product specifications include voltage 24V, load 2.44 kN·m / 1.8×10³ lbf·ft, protection IP65. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SC9?
Send load, stroke, voltage, IP rating, duty cycle and quantity via the contact form or WhatsApp.
