Slewing Drive
Model SC17-102-RC-24H15300
SC17 17-Inch Slewing Drive | 24 V DC Worm Gear Rotary Actuator for Heavy Loads
SC17 17-Inch Slewing Drive | 24VDC Worm Gear Rotary Actuator for Heavy Loads from Elerover.
Key specifications
- Output torque
- 12.24 kN·m / 9.03×10³ lbf·ft
- Holding torque
- 72.3 kN·m / 53.3×10³ lbf·ft
- Tilting moment torque
- 135.6 kN·m / 100×10³ lbf·ft
- Axial load
- 970 kN / 218.3×10³ lbf
Product overview
SC17 17-Inch Slewing Drive | 24VDC Worm Gear Rotary Actuator for Heavy Loads from Elerover. This slewing drive provides controlled rotary torque for tracking, positioning and heavy rotary platforms.
- Output torque
- 12.24 kN·m / 9.03×10³ lbf·ft
- Holding torque
- 72.3 kN·m / 53.3×10³ lbf·ft
- Tilting moment torque
- 135.6 kN·m / 100×10³ lbf·ft
- Axial load
- 970 kN / 218.3×10³ lbf
- Radial load
- 390 kN / 87.8×10³ lbf
- Gear ratio
- 102:1
Applications
- Large solar trackers
- PV / CSP tracking systems

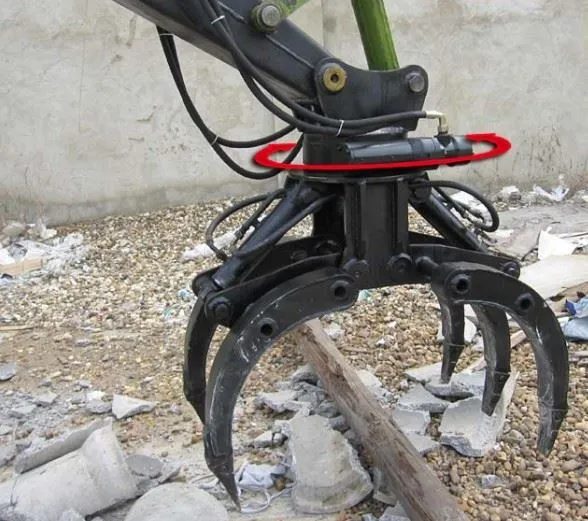

- Excavator grapples and attachments
- Aerial platforms and man lifts
- Antenna positioning
- Industrial rotary actuation
Benefits
- 17-inch worm-gear slewing drive with 24VDC IP65 reducer motor
- Output torque 12.24 kN·m / holding torque 72.3 kN·m
- Tilting moment 135.6 kN·m
- Gear ratio 102:1 with precision ≤ 0.17°
- Rated output speed 0.015 rpm
- Hall A/B feedback for closed-loop positioning
Technical specifications
| Drive type | 17-inch electric worm-gear slewing drive |
|---|---|
| Output torque | 12.24 kN·m / 9.03×10³ lbf·ft |
| Holding torque | 72.3 kN·m / 53.3×10³ lbf·ft |
| Tilting moment torque | 135.6 kN·m / 100×10³ lbf·ft |
| Axial load | 970 kN / 218.3×10³ lbf |
| Radial load | 390 kN / 87.8×10³ lbf |
| Gear ratio | 102:1 |
| Backlash | ≤ 0.17° |
| Motor voltage | 24 V DC |
| IP rating | IP65 |
Configuration options
| Parameter | Metric Value | Imperial Value |
|---|---|---|
| Rated Output Speed | 0.015 rpm | — |
| Output Torque | 12.24 kN·m | 9.03×10³ lbf·ft |
| Tilting Moment | 135.6 kN·m | 100×10³ lbf·ft |
| Holding Torque | 72.3 kN·m | 53.3×10³ lbf·ft |
| Static Axial Rating | 970 kN | 218.3×10³ lbf |
| Static Radial Rating | 390 kN | 87.8×10³ lbf |
| Gear Ratio | 102:1 | — |
| Precision | ≤ 0.17° | — |
| Approx. Weight | 105 kg | — |
Request technical documents
FAQ
What is the SC17?
The SC17 is an Elerover slewing drive rated IP65.
Does Elerover manufacture the SC17?
Yes. Elerover is a slewing drive manufacturer and supplier. Share your application requirements and quantity for a factory quote on this model.
What are the key specifications of the SC17?
Key ratings from the product specifications include voltage 24V, load 12.24 kN·m / 9.03×10³ lbf·ft, protection IP65. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SC17?
Send load, stroke, voltage, IP rating, duty cycle and quantity via the contact form or WhatsApp.
Request an OEM quote
Share force, stroke, voltage and quantity. Elerover will map your RFQ to a published series or OEM configuration.
