Slewing Drive
Model SVH9-61S61-RC-24H15300

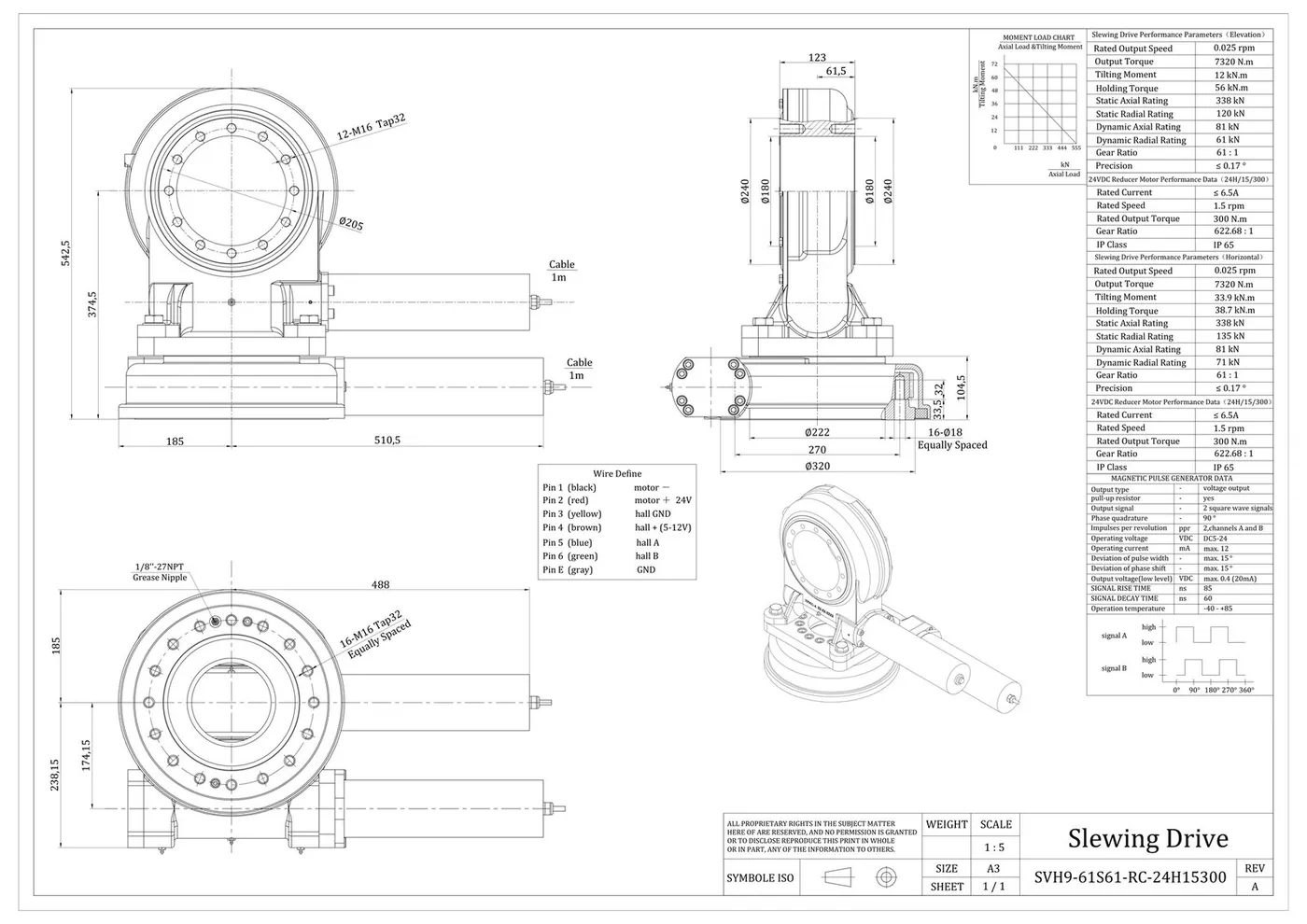

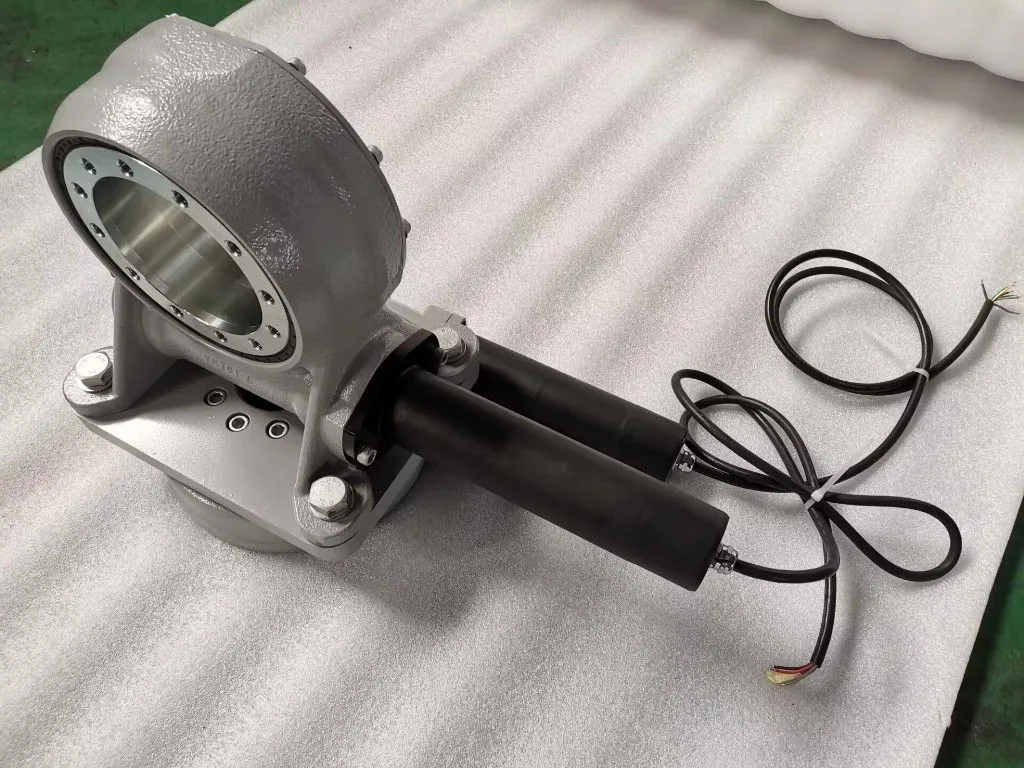

SVH9 9-Inch Dual Axis Slewing Drive | 24 V DC Solar Tracker Worm Gear Rotary Actuator
SVH9 9-Inch Dual Axis Slewing Drive | 24VDC Solar Tracker Worm Gear Rotary Actuator from Elerover.
Key specifications
- Output torque
- 7320 N·m (both axes)
- Holding torque
- Horizontal: 38.7 kN·m; Elevation: 56 kN·m
- Tilting moment torque
- Horizontal: 33.9 kN·m; Elevation: 12 kN·m
- Axial load
- 338 kN
Product overview
SVH9 9-Inch Dual Axis Slewing Drive | 24VDC Solar Tracker Worm Gear Rotary Actuator from Elerover. This slewing drive provides controlled rotary torque for tracking, positioning and heavy rotary platforms.
- Output torque
- 7320 N·m (both axes)
- Holding torque
- Horizontal: 38.7 kN·m; Elevation: 56 kN·m
- Tilting moment torque
- Horizontal: 33.9 kN·m; Elevation: 12 kN·m
- Axial load
- 338 kN
- Gear ratio
- 61:1 / 61:1
- Backlash
- ≤ 0.17°
Applications
- Large dual-axis solar trackers
- PV / CPV / CSP tracking systems
- Antenna and satellite positioning
- Industrial rotary platforms
- Heavy sensor and camera gimbals
Benefits
- 9-inch dual-axis slewing drive for azimuth and elevation motion
- Output torque 7320 N·m on both axes
- Elevation holding torque 56 kN·m / horizontal holding 38.7 kN·m
- Gear ratio 61:1 on both axes with precision ≤ 0.17°
- 24VDC IP65 reducer motors (24H/15/300) with hall A/B feedback
- Rated output speed 0.025 rpm for precise tracking
Technical specifications
| Drive type | 9-inch dual-axis electric slewing drive |
|---|---|
| Output torque | 7320 N·m (both axes) |
| Holding torque | Horizontal: 38.7 kN·m; Elevation: 56 kN·m |
| Tilting moment torque | Horizontal: 33.9 kN·m; Elevation: 12 kN·m |
| Axial load | 338 kN |
| Gear ratio | 61:1 / 61:1 |
| Backlash | ≤ 0.17° |
| Motor voltage | 24 V DC |
| IP rating | IP65 |
Configuration options
| Parameter | Horizontal Axis | Elevation Axis |
|---|---|---|
| Rated Output Speed | 0.025 rpm | 0.025 rpm |
| Output Torque | 7320 N·m | 7320 N·m |
| Tilting Moment | 33.9 kN·m | 12 kN·m |
| Holding Torque | 38.7 kN·m | 56 kN·m |
| Static Axial Rating | 338 kN | 338 kN |
| Static Radial Rating | 135 kN | 120 kN |
| Dynamic Axial Rating | 71 kN | 61 kN |
| Dynamic Radial Rating | 81 kN | 81 kN |
| Gear Ratio | 61:1 | 61:1 |
| Precision | ≤ 0.17° | ≤ 0.17° |
Request technical documents
FAQ
What is the SVH9?
The SVH9 is an Elerover slewing drive rated IP65.
Does Elerover manufacture the SVH9?
Yes. Elerover is a slewing drive manufacturer and supplier. Share your application requirements and quantity for a factory quote on this model.
What are the key specifications of the SVH9?
Key ratings from the product specifications include voltage 24V, load 7320 N, protection IP65. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SVH9?
Send load, stroke, voltage, IP rating, duty cycle and quantity via the contact form or WhatsApp.
