Slewing Drive
Model VH7-60S110-RC-2415300
VH7 7-Inch Slewing Drive for Solar Tracker | 24 V DC Vertical Worm Gear Drive
VH7 7-Inch Slewing Drive for Solar Tracker | 24VDC Vertical Worm Gear Drive from Elerover.
Key specifications
- Output torque
- 6300 N·m
- Holding torque
- 45 kN·m
- Tilting moment torque
- 10 kN·m
- Axial load
- 100 kN
Product overview
VH7 7-Inch Slewing Drive for Solar Tracker | 24VDC Vertical Worm Gear Drive from Elerover. This slewing drive provides controlled rotary torque for tracking, positioning and heavy rotary platforms.
- Output torque
- 6300 N·m
- Holding torque
- 45 kN·m
- Tilting moment torque
- 10 kN·m
- Axial load
- 100 kN
- Radial load
- 65 kN
- Gear ratio
- 60:1
Applications
- Horizontal single-axis solar trackers
- Utility-scale PV plants
- Commercial and industrial solar farms
- Desert and outdoor tracking systems
- OEM solar tracker platforms
Benefits
- 7-inch vertical slewing drive for solar trackers
- Rated output torque 6300 N·m / holding torque 45 kN·m
- Hard travel limit ±60°
- Gear ratio 60:1 with precision ≤ 0.2°
- 24VDC IP65 motor with Weipu SP21 connector
- C3 corrosion protection for outdoor solar sites

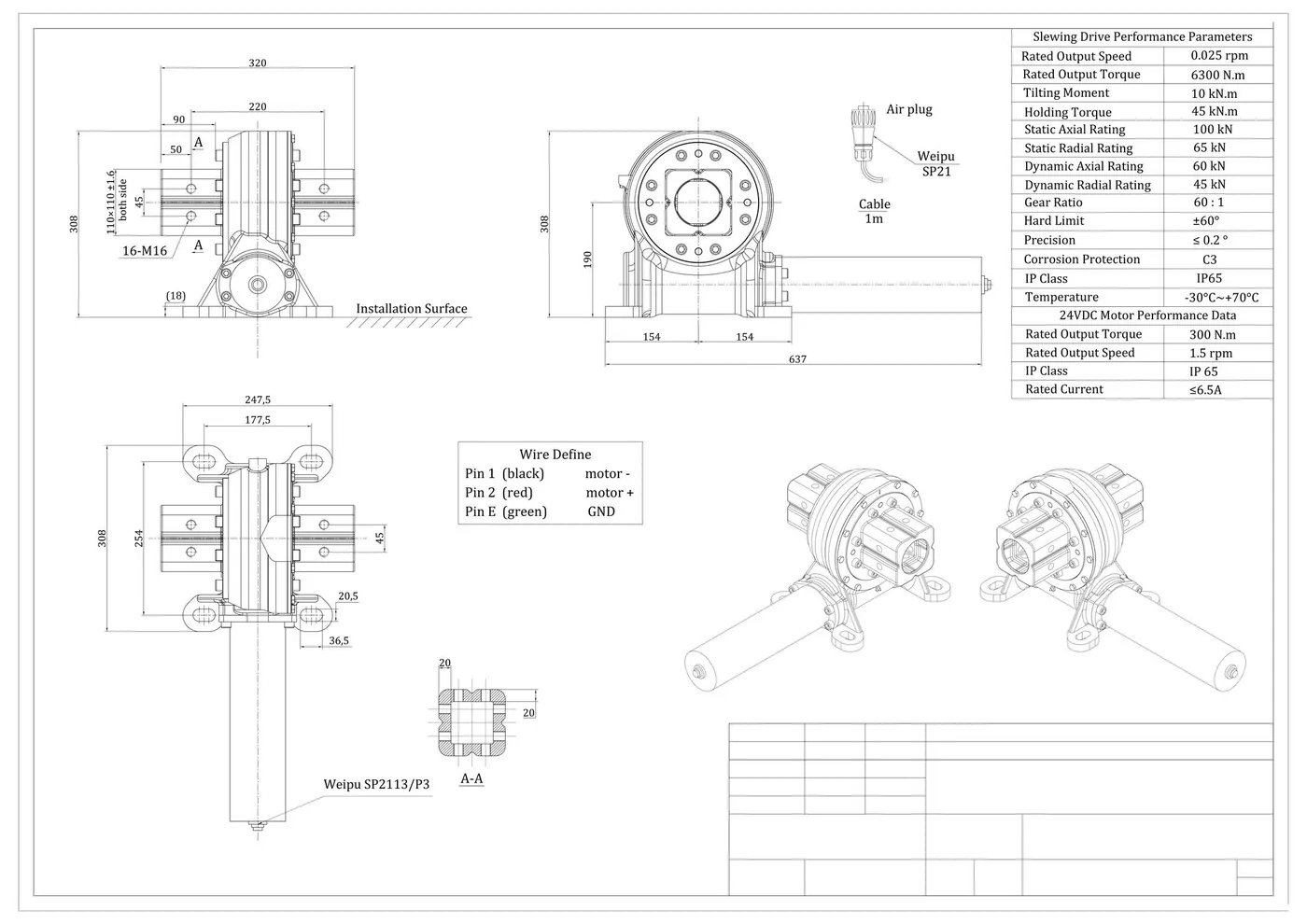

Technical specifications
| Drive type | 7-inch vertical slewing drive for solar tracker |
|---|---|
| Output torque | 6300 N·m |
| Holding torque | 45 kN·m |
| Tilting moment torque | 10 kN·m |
| Axial load | 100 kN |
| Radial load | 65 kN |
| Gear ratio | 60:1 |
| Backlash | ≤ 0.2° |
| Motor voltage | 24 V DC |
| IP rating | IP65 |
Request technical documents
FAQ
What is the VH7?
The VH7 is an Elerover slewing drive rated IP65.
Does Elerover manufacture the VH7?
Yes. Elerover is a slewing drive manufacturer and supplier. Share your application requirements and quantity for a factory quote on this model.
What are the key specifications of the VH7?
Key ratings from the product specifications include voltage 24V, load 6300 N, protection IP65. See the Technical Specifications section on this page for the full table.
How do I request a quote for the VH7?
Send load, stroke, voltage, IP rating, duty cycle and quantity via the contact form or WhatsApp.
Request an OEM quote
Share force, stroke, voltage and quantity. Elerover will map your RFQ to a published series or OEM configuration.
