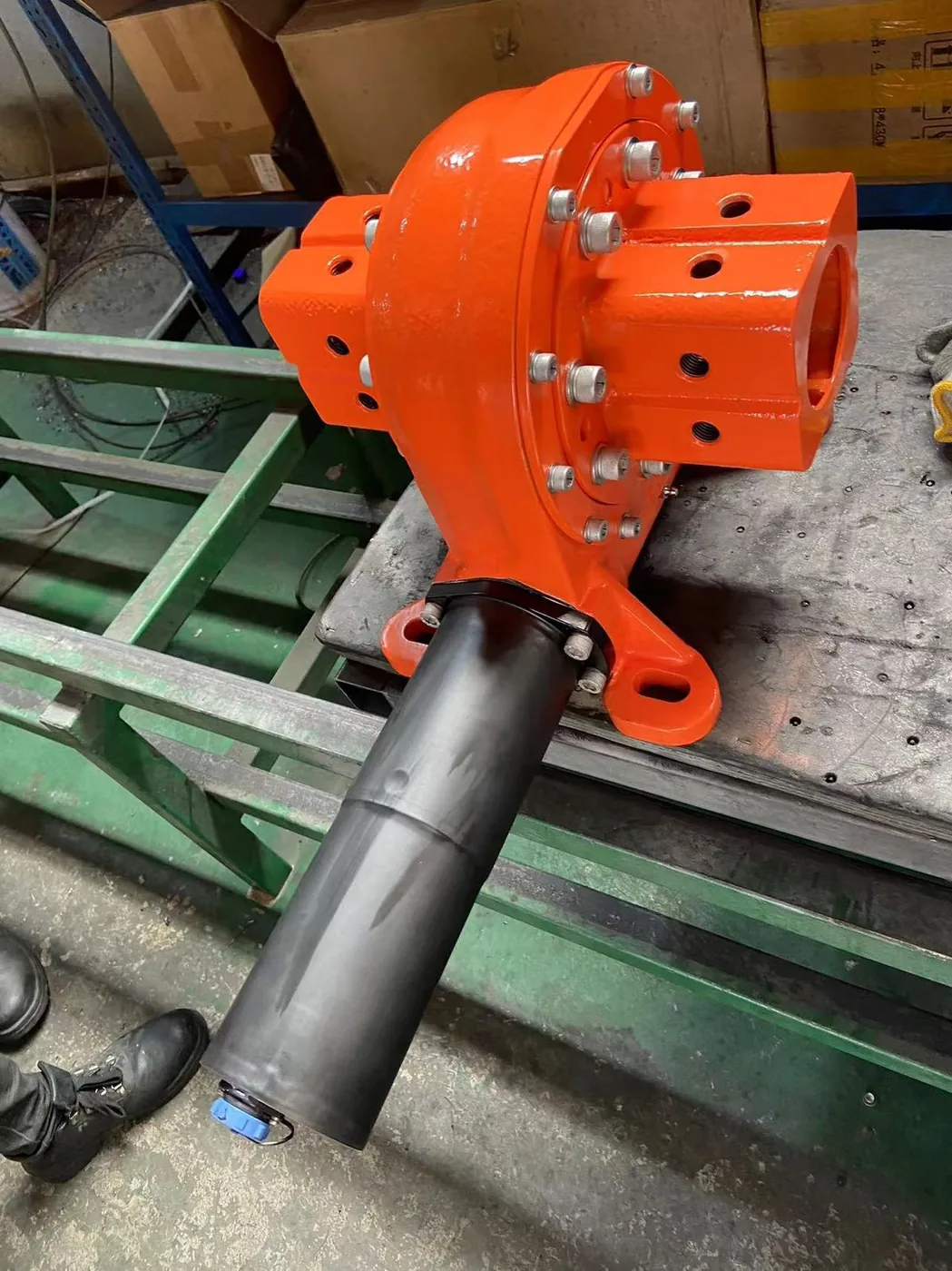

Slewing Drive

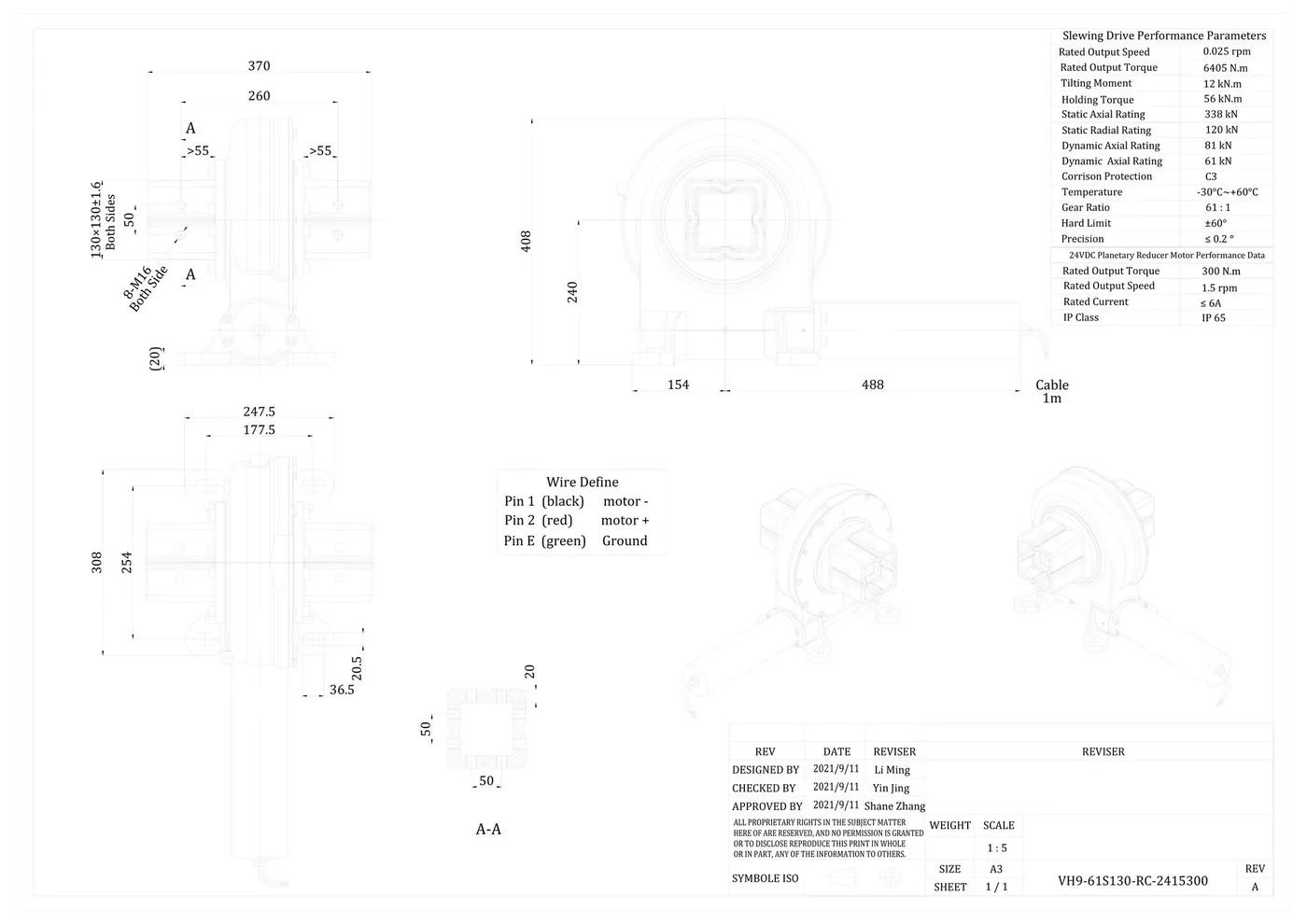

Model VH9-61S130-RC-2415300
VH9 9-Inch Slewing Drive for Solar Tracker | 24 V DC Vertical Worm Gear Drive
VH9 9-Inch Slewing Drive for Solar Tracker | 24VDC Vertical Worm Gear Drive from Elerover.
Key specifications
- Output torque
- 6405 N·m
- Holding torque
- 56 kN·m
- Tilting moment torque
- 12 kN·m
- Axial load
- 338 kN
Product overview
VH9 9-Inch Slewing Drive for Solar Tracker | 24VDC Vertical Worm Gear Drive from Elerover. This slewing drive provides controlled rotary torque for tracking, positioning and heavy rotary platforms.
- Output torque
- 6405 N·m
- Holding torque
- 56 kN·m
- Tilting moment torque
- 12 kN·m
- Axial load
- 338 kN
- Radial load
- 120 kN
- Gear ratio
- 61:1
Applications
- Horizontal single-axis solar trackers
- Utility-scale PV plants
- Commercial and industrial solar farms
- Desert and outdoor tracking systems
- OEM solar tracker platforms
Benefits
- 9-inch vertical slewing drive for solar trackers
- Rated output torque 6405 N·m / holding torque 56 kN·m
- Hard travel limit ±60°
- Gear ratio 61:1 with precision ≤ 0.2°
- Standard 24VDC IP65 motor; 36V / 48V / AC options available
- C3 corrosion protection for outdoor solar sites
Technical specifications
| Drive type | 9-inch vertical slewing drive for solar tracker |
|---|---|
| Output torque | 6405 N·m |
| Holding torque | 56 kN·m |
| Tilting moment torque | 12 kN·m |
| Axial load | 338 kN |
| Radial load | 120 kN |
| Gear ratio | 61:1 |
| Backlash | ≤ 0.2° |
| Motor voltage | 24 V DC |
| IP rating | IP65 |
Request technical documents
FAQ
What is the VH9?
The VH9 is an Elerover slewing drive rated IP65.
Does Elerover manufacture the VH9?
Yes. Elerover is a slewing drive manufacturer and supplier. Share your application requirements and quantity for a factory quote on this model.
What are the key specifications of the VH9?
Key ratings from the product specifications include voltage 24V, load 6405 N, protection IP65. See the Technical Specifications section on this page for the full table.
How do I request a quote for the VH9?
Send load, stroke, voltage, IP rating, duty cycle and quantity via the contact form or WhatsApp.
