Slewing Drive
Model SC12-78-RC-24H30100

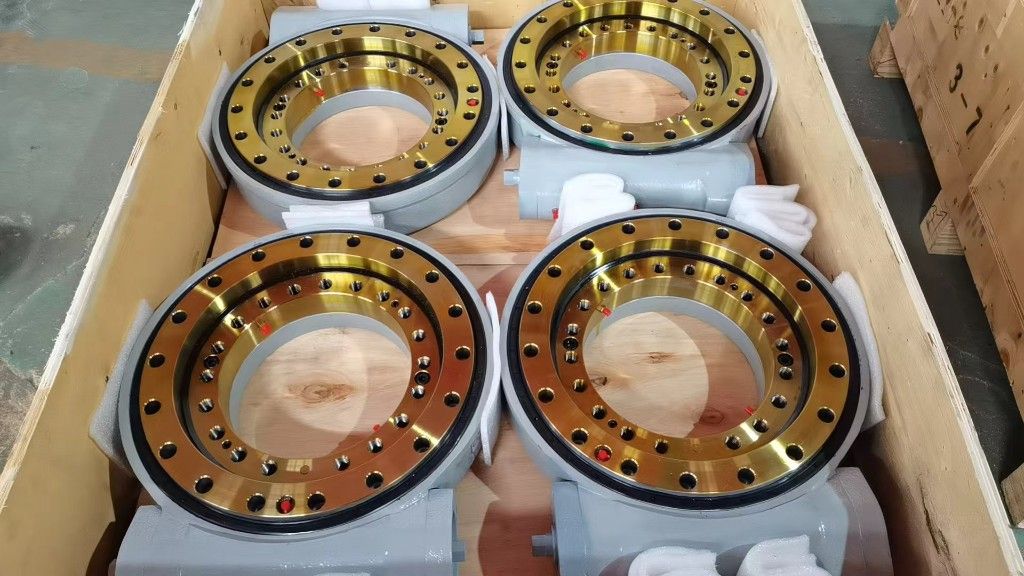

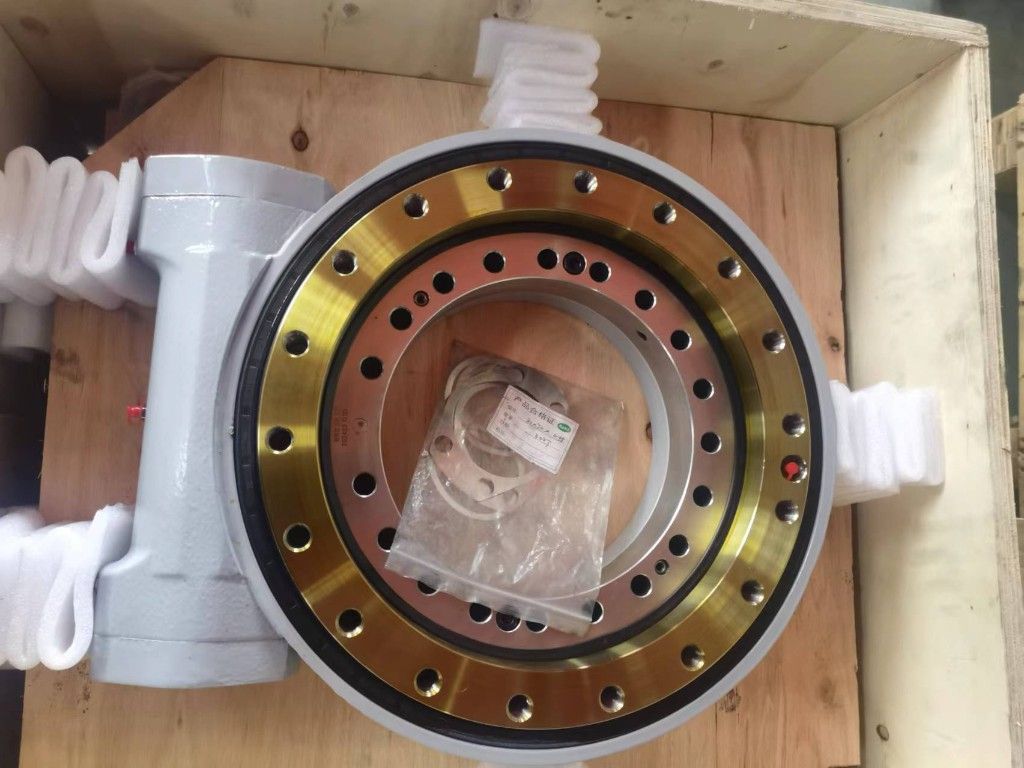

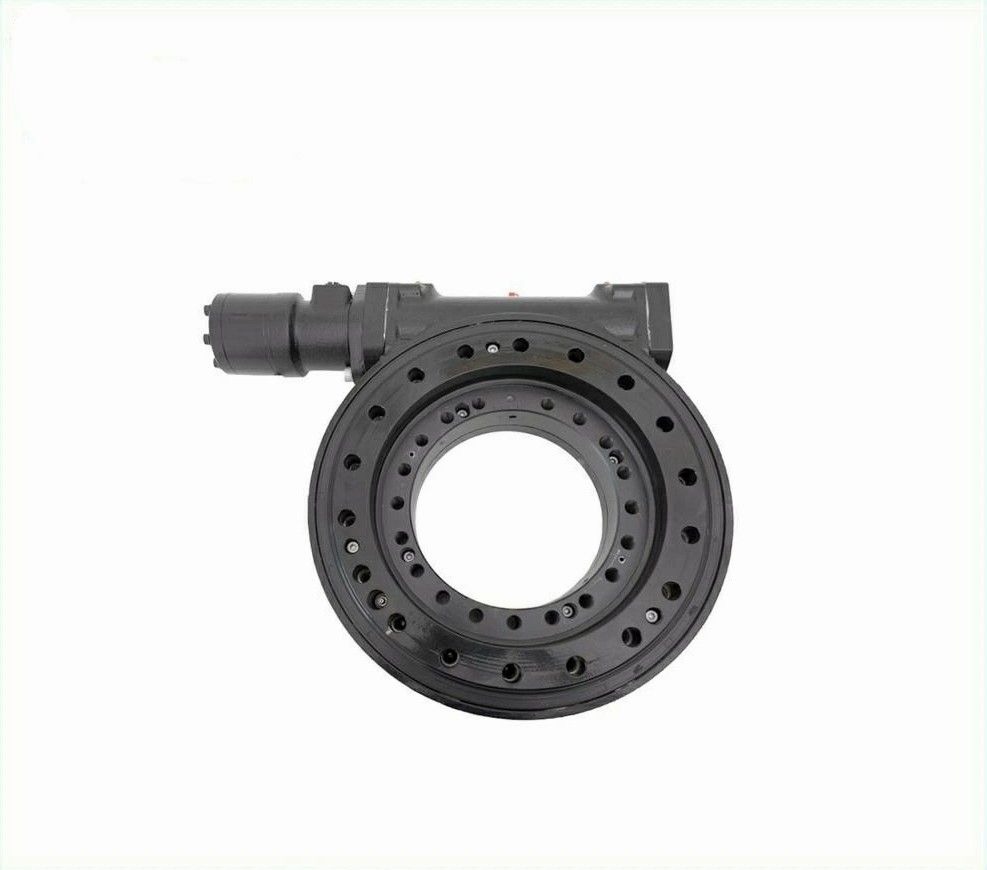

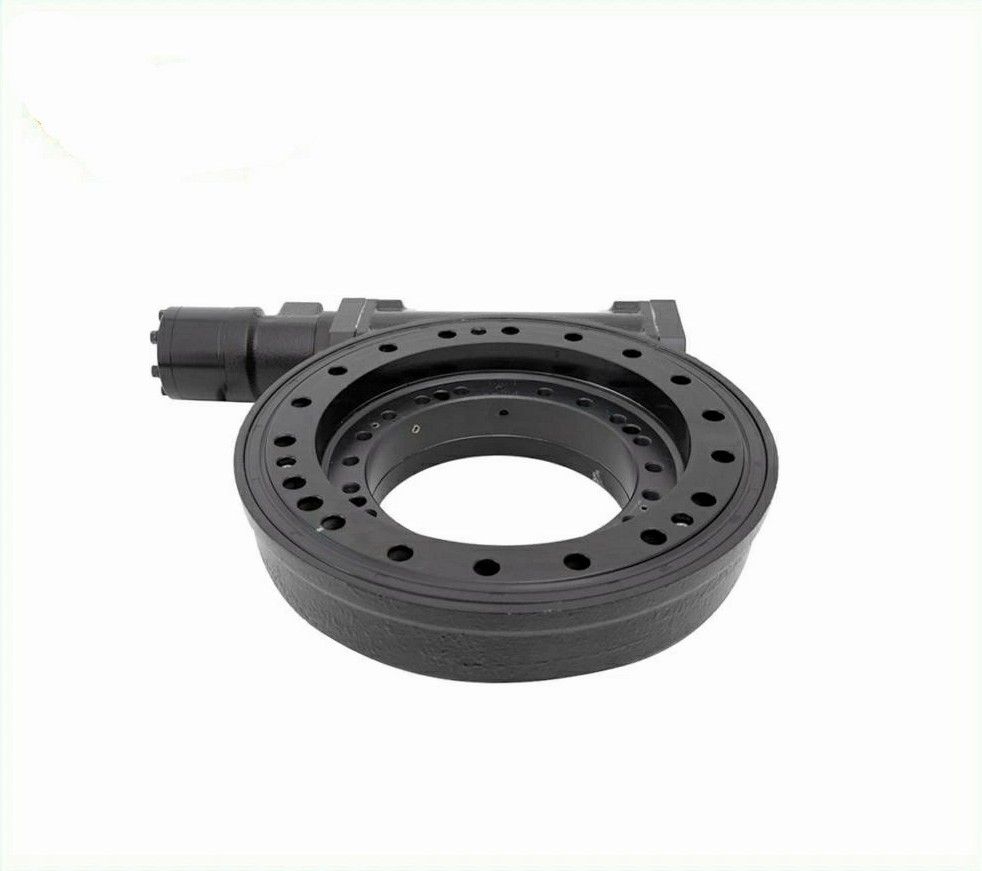

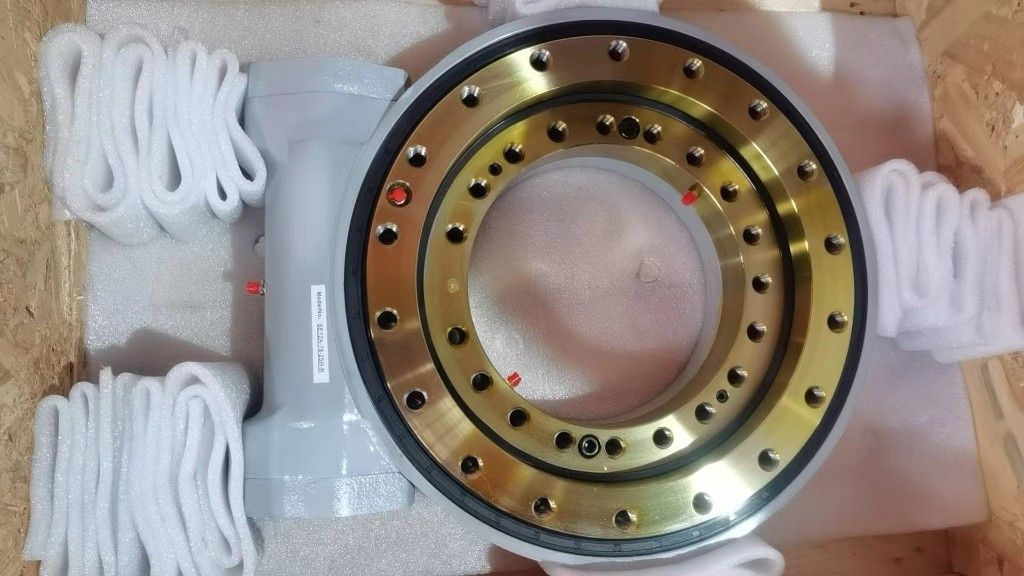

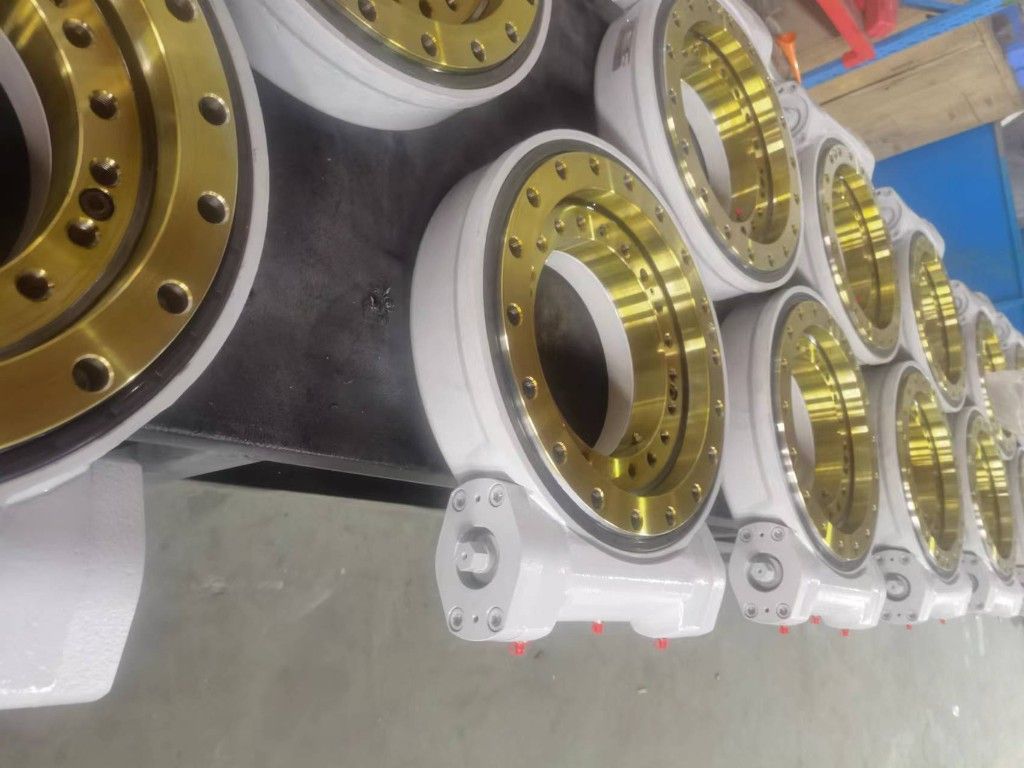

SC12 12-Inch Slewing Drive | 24 V DC Worm Gear Rotary Actuator for Solar Tracker
SC12 12-Inch Slewing Drive | 24VDC Worm Gear Rotary Actuator for Solar Tracker from Elerover.
Key specifications
- Output torque
- 3120 N·m / 2302 lbf·ft
- Holding torque
- 43 kN·m / 31.7×10³ lbf·ft
- Tilting moment torque
- 54.3 kN·m / 40×10³ lbf·ft
- Axial load
- 475 kN / 106.8×10³ lbf
Product overview
SC12 12-Inch Slewing Drive | 24VDC Worm Gear Rotary Actuator for Solar Tracker from Elerover. This slewing drive provides controlled rotary torque for tracking, positioning and heavy rotary platforms.
- Output torque
- 3120 N·m / 2302 lbf·ft
- Holding torque
- 43 kN·m / 31.7×10³ lbf·ft
- Tilting moment torque
- 54.3 kN·m / 40×10³ lbf·ft
- Axial load
- 475 kN / 106.8×10³ lbf
- Radial load
- 190 kN / 42.7×10³ lbf
- Gear ratio
- 78:1
Applications
- Large solar trackers
- PV / CSP tracking systems
- Antenna positioning
- Industrial rotary actuation
- Aerial platforms and machinery
Benefits
- 12-inch worm-gear slewing drive with 24VDC planetary reducer motor
- Output torque 3120 N·m / holding torque 43 kN·m
- Tilting moment 54.3 kN·m
- Gear ratio 78:1 with precision ≤ 0.17°
- Rated output speed 0.038 rpm
- Hall A/B feedback for closed-loop positioning

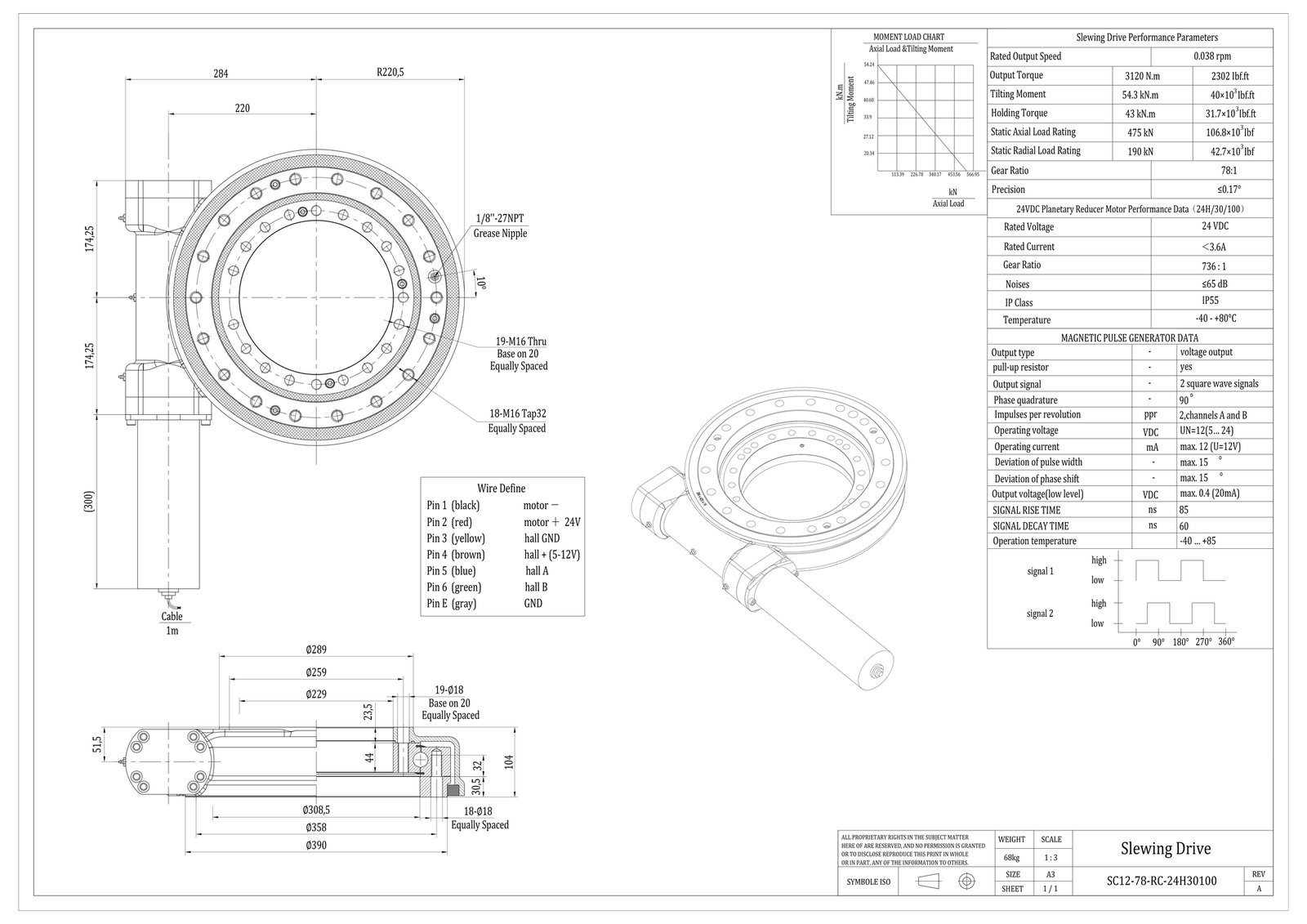

Technical specifications
| Drive type | 12-inch electric worm-gear slewing drive |
|---|---|
| Output torque | 3120 N·m / 2302 lbf·ft |
| Holding torque | 43 kN·m / 31.7×10³ lbf·ft |
| Tilting moment torque | 54.3 kN·m / 40×10³ lbf·ft |
| Axial load | 475 kN / 106.8×10³ lbf |
| Radial load | 190 kN / 42.7×10³ lbf |
| Gear ratio | 78:1 |
| Backlash | ≤ 0.17° |
| Motor voltage | 24 V DC |
| IP rating | IP55 |
Configuration options
| Parameter | Metric Value | Imperial Value |
|---|---|---|
| Rated Output Speed | 0.038 rpm | — |
| Output Torque | 3120 N·m | 2302 lbf·ft |
| Tilting Moment | 54.3 kN·m | 40×10³ lbf·ft |
| Holding Torque | 43 kN·m | 31.7×10³ lbf·ft |
| Static Axial Rating | 475 kN | 106.8×10³ lbf |
| Static Radial Rating | 190 kN | 42.7×10³ lbf |
| Gear Ratio | 78:1 | — |
| Precision | ≤ 0.17° | — |
| Approx. Weight | 68 kg | — |
Request technical documents
FAQ
What is the SC12?
The SC12 is an Elerover slewing drive rated IP55.
Does Elerover manufacture the SC12?
Yes. Elerover is a slewing drive manufacturer and supplier. Share your application requirements and quantity for a factory quote on this model.
What are the key specifications of the SC12?
Key ratings from the product specifications include voltage 24V, load 3120 N, protection IP55. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SC12?
Send load, stroke, voltage, IP rating, duty cycle and quantity via the contact form or WhatsApp.
Request an OEM quote
Share force, stroke, voltage and quantity. Elerover will map your RFQ to a published series or OEM configuration.
Quote context
