Slewing Drive
Model Rated Output Torque (N.m)

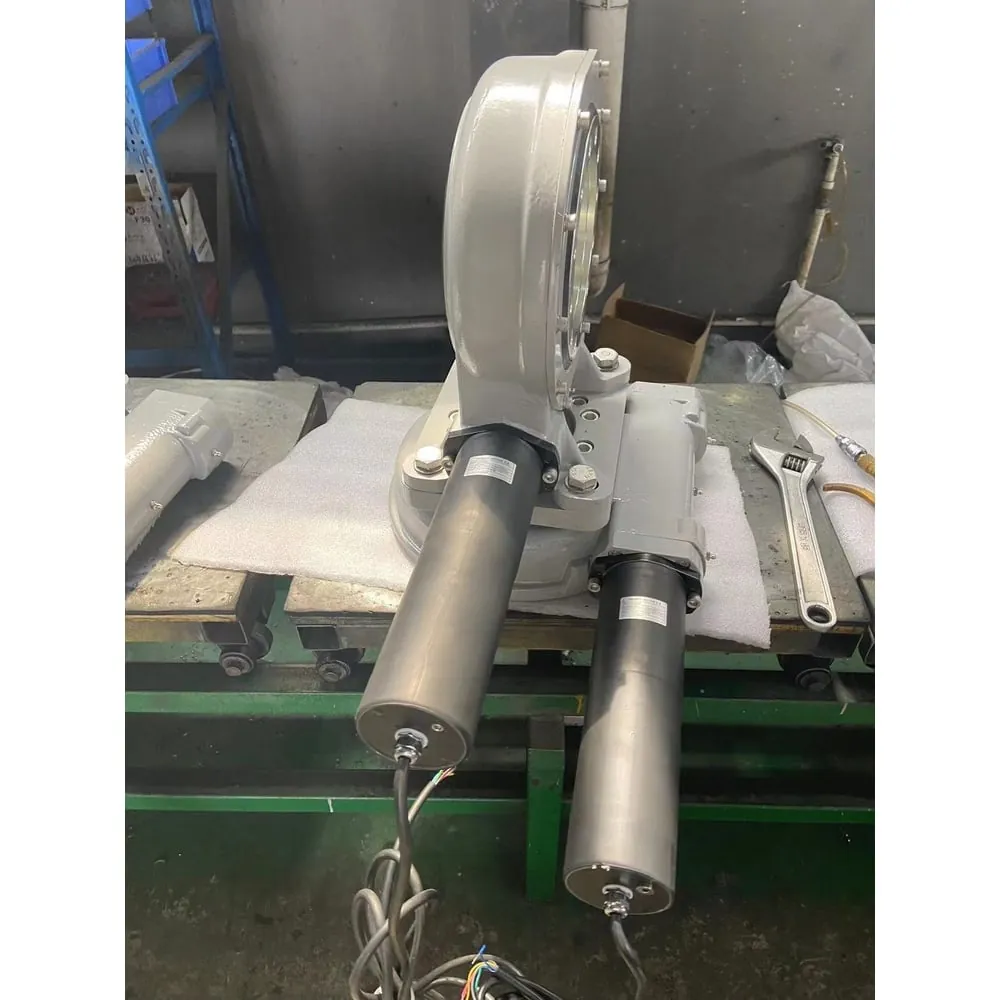

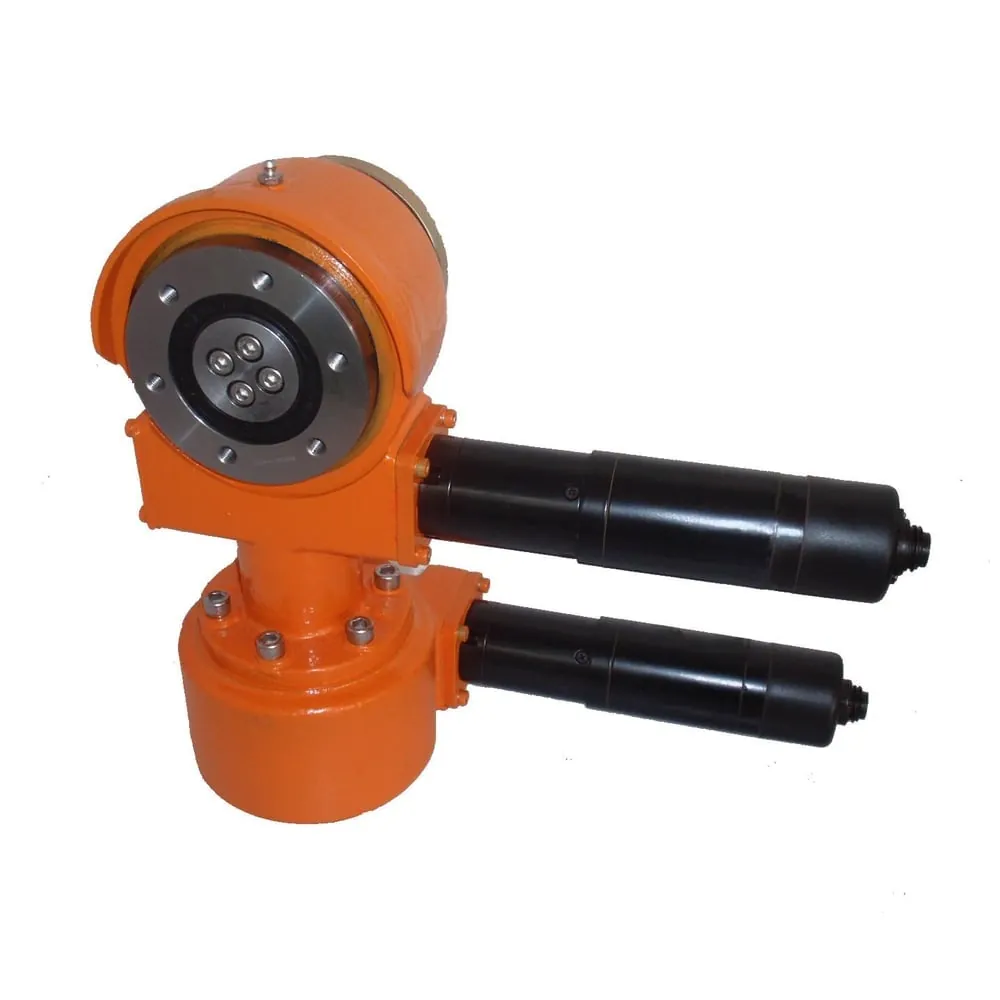

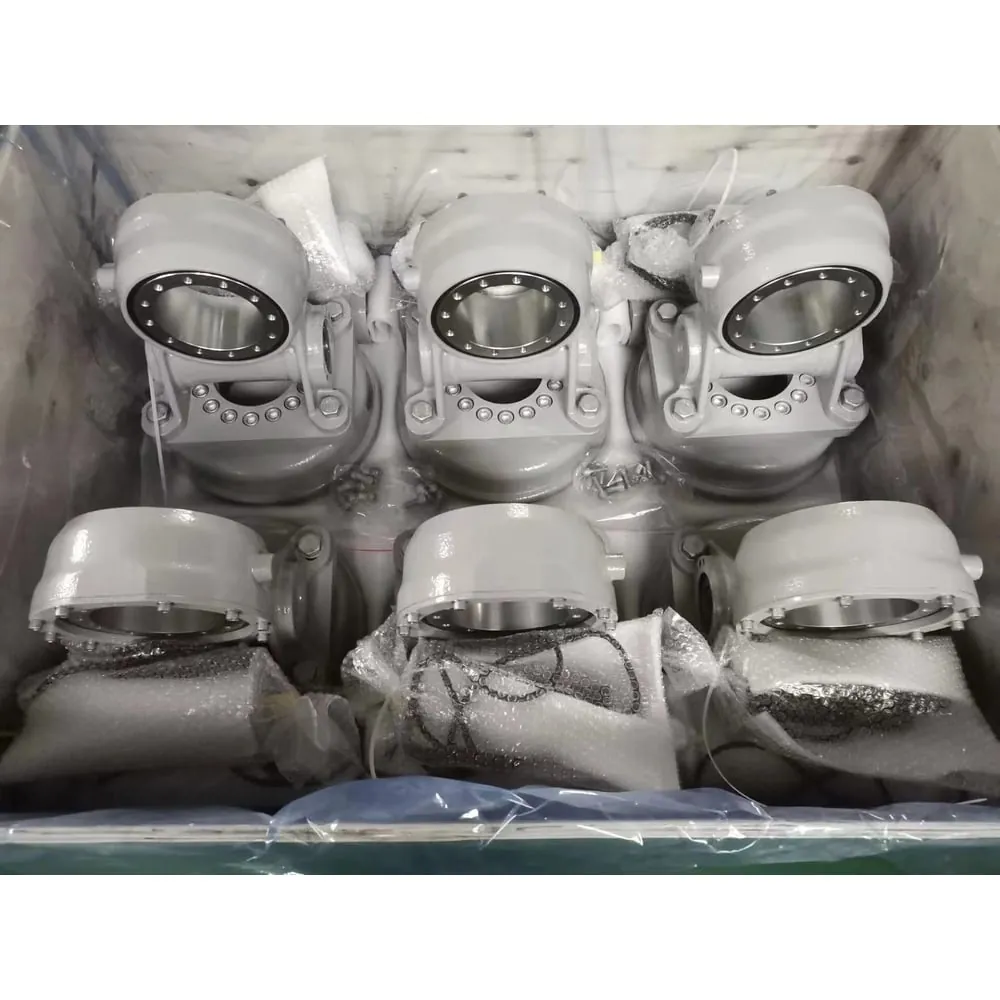

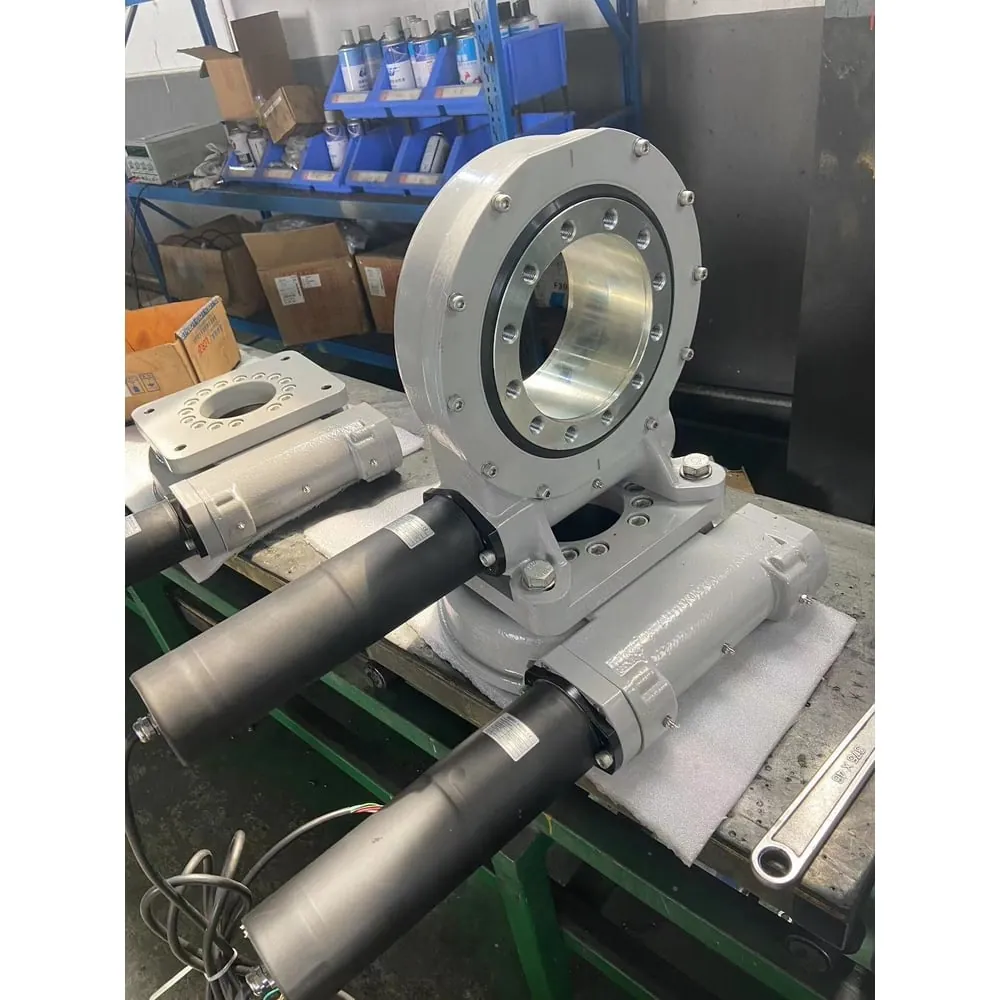

SDE3/SDE7/SDE14 Dual-axis Slewing drive
SDE3/SDE7/SDE14 Dual-axis Slewing drive from Elerover.
No reliable core specification is currently available for online display.
Product overview
SDE3/SDE7/SDE14 Dual-axis Slewing drive from Elerover. This slewing drive provides controlled rotary torque for tracking, positioning and heavy rotary platforms.
Applications
- Solar Tracking
Benefits
- High Output Torque: Enhanced performance for more challenging applications.
- Excellent Tracking Precision: Superior accuracy for maximum efficiency.
- Anti-Corrosion Coating: Prolongs the lifespan of the slewing drive.
- Anti-UV Sealing: Protects against UV radiation damage.
- IP66 Protection Class: Ensures resistance to dust and water ingress.
- Wide Application: Suitable for PV, CPV, and CSP systems.
Technical specifications
| Drive type | Series model matrix — confirm torque/load by selected model |
|---|
SDE Model Performance Parameters
| Parameter | Model | Rated Output Torque (N.m) | Tilting Torque (kN.m) | Holding Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency | Precision (degree) | IP | Working Tep (℃) | Self-locking | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 600 | 1.5 | 5.8 | 10 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 25kg | |
| 5 | 800 | 6 | 9.2 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 34kg | |
| 7 | 2000 | 7.5 | 13.2 | 34 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 56kg | |
| 9 | 4300 | 16 | 27.2 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 92kg | |
| 12 | 5800 | 25 | 41 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 160kg | |
| 14 | 6750 | 48 | 45 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 224kg | |
| 17 | 9460 | 67 | 54 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 320kg | |
| 21 | 16000 | 89 | 65 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 492kg | |
| 25 | 21450 | 112 | 89 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 705kg |
Request technical documents
FAQ
What is the SDE3/SDE7/SDE14 Dual-axis Slewing drive?
The SDE3/SDE7/SDE14 Dual-axis Slewing drive is an Elerover slewing drive for industrial and OEM motion projects.
Does Elerover manufacture the SDE3/SDE7/SDE14 Dual-axis Slewing drive?
Yes. Elerover is a slewing drive manufacturer and supplier. Share your application requirements and quantity for a factory quote on this model.
How do I request a quote for the SDE3/SDE7/SDE14 Dual-axis Slewing drive?
Send load, stroke, voltage, IP rating, duty cycle and quantity via the contact form or WhatsApp.
Request an OEM quote
Share force, stroke, voltage and quantity. Elerover will map your RFQ to a published series or OEM configuration.
