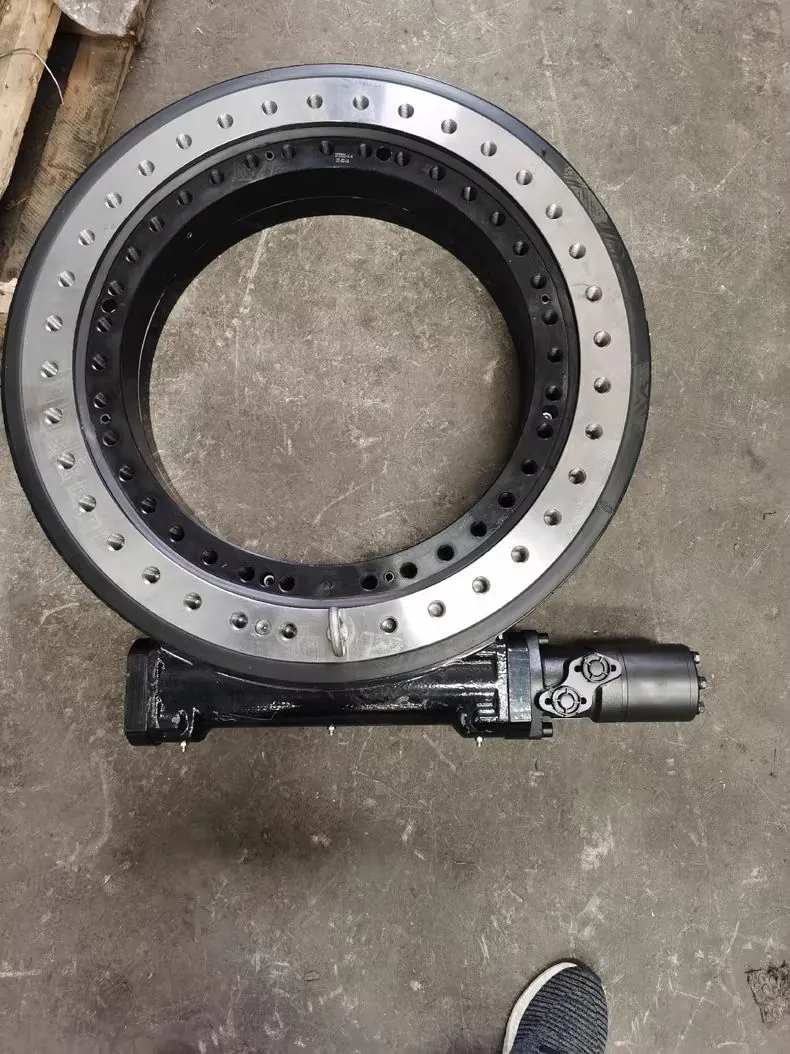

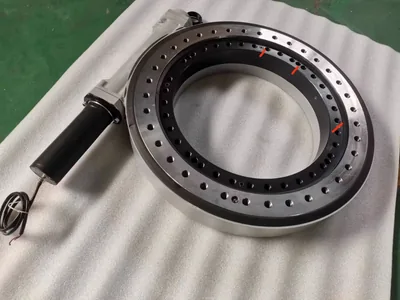

Slewing Drive
Model SC32-154B-25RC
SC32 32-Inch Slewing Drive | Heavy-Duty Worm Gear Rotary Drive for Solar & Machinery
SC32 32-Inch Slewing Drive | Heavy-Duty Worm Gear Rotary Drive for Solar & Machinery from Elerover.
Key specifications
- Output torque
- 25 kN·m / 18.5×10³ lbf·ft
- Holding torque
- 190 kN·m / 140×10³ lbf·ft
- Tilting moment torque
- 347 kN·m / 256×10³ lbf·ft
- Axial load
- 3021 kN / 680×10³ lbf
Product overview
SC32 32-Inch Slewing Drive | Heavy-Duty Worm Gear Rotary Drive for Solar & Machinery from Elerover. This slewing drive provides controlled rotary torque for tracking, positioning and heavy rotary platforms.
- Output torque
- 25 kN·m / 18.5×10³ lbf·ft
- Holding torque
- 190 kN·m / 140×10³ lbf·ft
- Tilting moment torque
- 347 kN·m / 256×10³ lbf·ft
- Axial load
- 3021 kN / 680×10³ lbf
- Radial load
- 1210 kN / 272×10³ lbf
- Gear ratio
- 154:1
Applications
- Large solar trackers
- PV / CSP tracking systems
- Truck-mounted cranes
- Aerial platforms and man lifts
- Industrial turntables
- Heavy construction machinery
Benefits
- 32-inch worm-gear slewing drive for extra-heavy rotary loads
- Output torque 25 kN·m / holding torque 190 kN·m
- Tilting moment 347 kN·m
- Gear ratio 154:1 with precision ≤ 0.17°
- Output speed ≤ 2 rpm
- Motor-ready Ø25 keyed input for electric or hydraulic drives

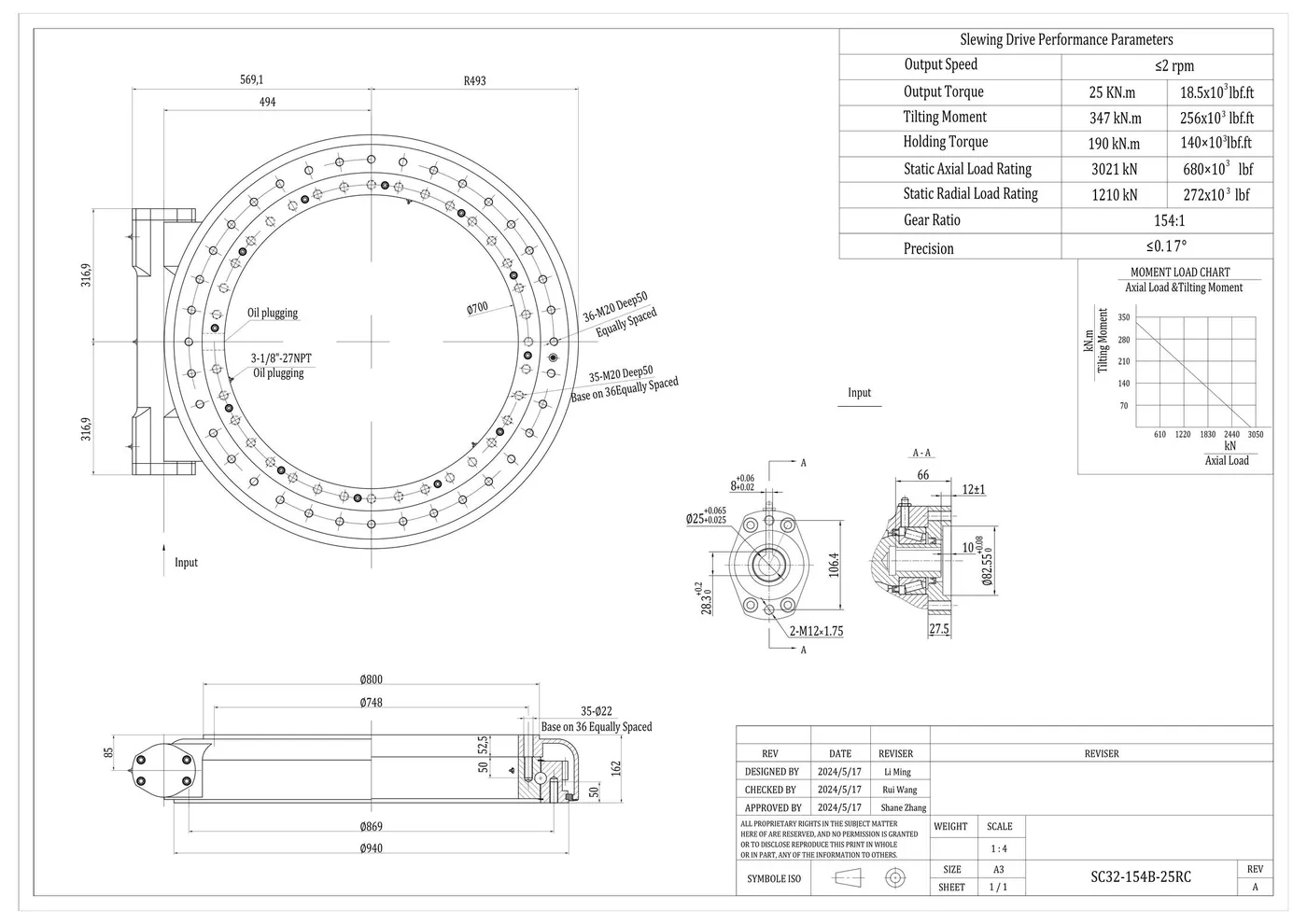

Technical specifications
| Drive type | 32-inch worm-gear slewing drive |
|---|---|
| Output torque | 25 kN·m / 18.5×10³ lbf·ft |
| Holding torque | 190 kN·m / 140×10³ lbf·ft |
| Tilting moment torque | 347 kN·m / 256×10³ lbf·ft |
| Axial load | 3021 kN / 680×10³ lbf |
| Radial load | 1210 kN / 272×10³ lbf |
| Gear ratio | 154:1 |
| Backlash | ≤ 0.17° |
Configuration options
| Parameter | Metric Value | Imperial Value |
|---|---|---|
| Output Speed | ≤ 2 rpm | — |
| Output Torque | 25 kN·m | 18.5×10³ lbf·ft |
| Tilting Moment | 347 kN·m | 256×10³ lbf·ft |
| Holding Torque | 190 kN·m | 140×10³ lbf·ft |
| Static Axial Load Rating | 3021 kN | 680×10³ lbf |
| Static Radial Load Rating | 1210 kN | 272×10³ lbf |
| Gear Ratio | 154:1 | — |
| Precision | ≤ 0.17° | — |
Request technical documents
FAQ
What is the SC32?
The SC32 is an Elerover slewing drive for industrial and OEM motion projects.
Does Elerover manufacture the SC32?
Yes. Elerover is a slewing drive manufacturer and supplier. Share your application requirements and quantity for a factory quote on this model.
What are the key specifications of the SC32?
Key ratings from the product specifications include load 25 kN·m / 18.5×10³ lbf·ft. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SC32?
Send load, stroke, voltage, IP rating, duty cycle and quantity via the contact form or WhatsApp.
Request an OEM quote
Share force, stroke, voltage and quantity. Elerover will map your RFQ to a published series or OEM configuration.
