Linear Actuator
Model SLA01
SLA01 900 N Heavy-Duty DC Linear Actuator
The SLA01 is a compact DC linear actuator for OEM equipment that needs reliable push/pull motion at moderate loads — up to 900 N, 20–800 mm stroke, IP54.
Key specifications
- Maximum load
- 900 N
- Stroke
- 20 – 800 mm
- Speed
- 5 mm/s – 80 mm/s
- Voltage
- 12 V / 24 V / 36 V / 48 V DC
Product overview
The SLA01 is a compact DC linear actuator for OEM equipment that needs reliable push/pull motion at moderate loads — up to 900 N, 20–800 mm stroke, IP54.
- Maximum load
- 900 N
- Stroke
- 20 – 800 mm
- Speed
- 5 mm/s – 80 mm/s
- Voltage
- 12 V / 24 V / 36 V / 48 V DC
- IP rating
- IP54
- Feedback

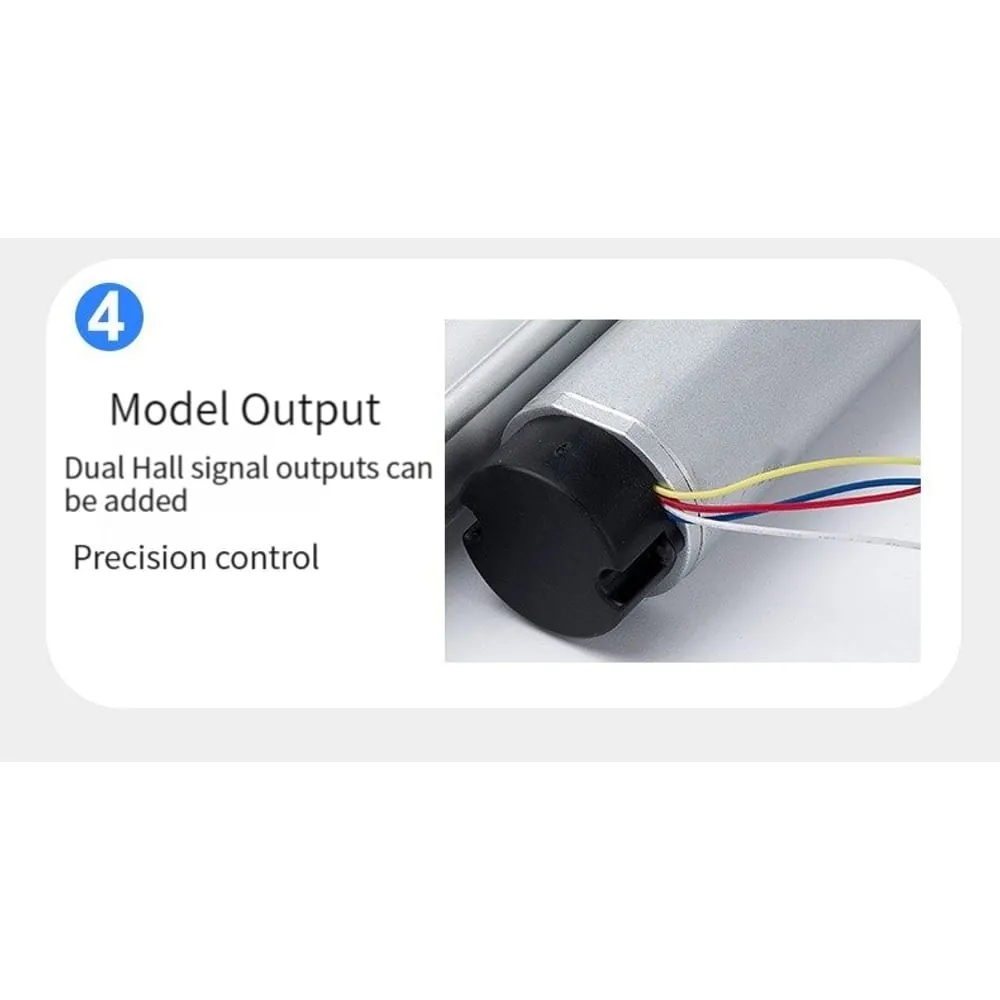

- Potentiometer (10K / 5K) or encoder
Applications
- Doors and windows
- Trapdoors
- Light solar tracking
- OEM automation
Benefits
- Up to 900 N at the 5 mm/s gear option
- Stroke 20 – 800 mm (custom within range)
- 12 / 24 / 36 / 48 V DC input
- Built-in limit switches; optional potentiometer or encoder
- IP54 sealing with optional rubber cover

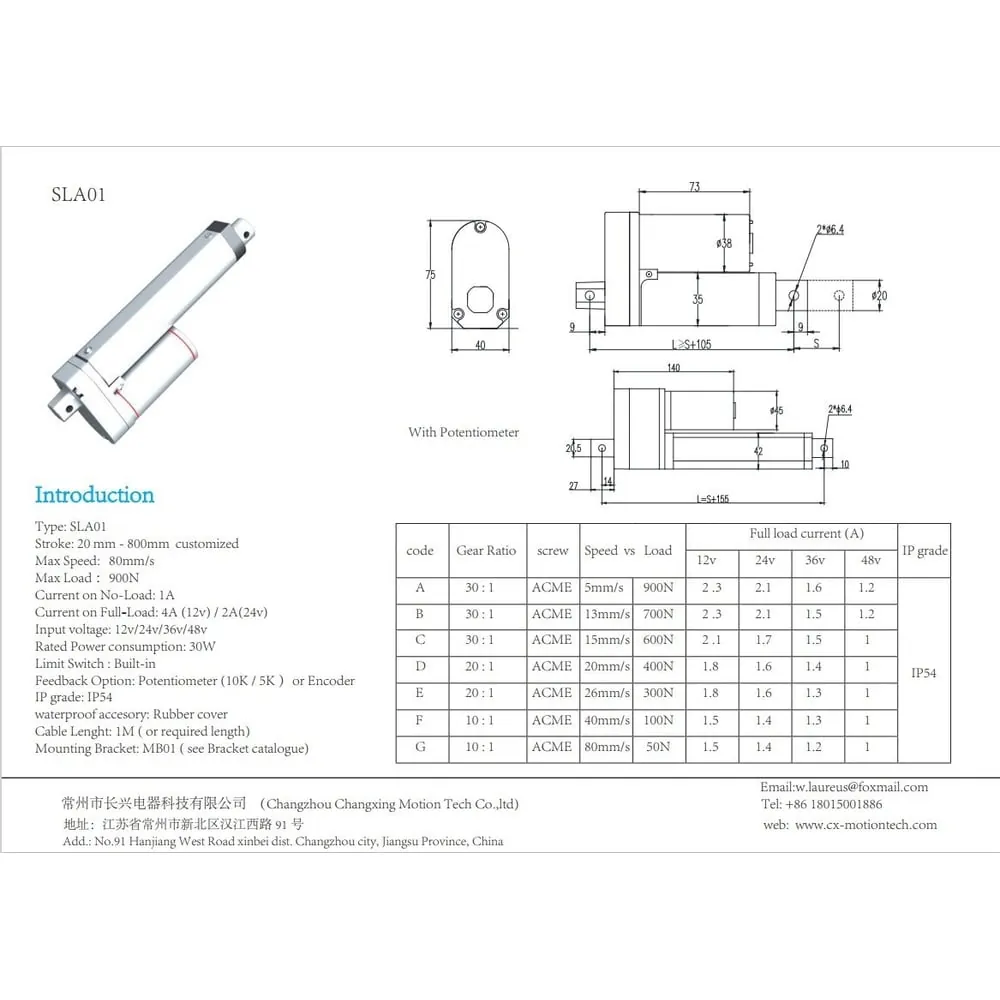

Technical specifications
| Maximum load | 900 N |
|---|---|
| Stroke | 20 – 800 mm |
| Speed | 5 mm/s – 80 mm/s |
| Voltage | 12 V / 24 V / 36 V / 48 V DC |
| IP rating | IP54 |
| Feedback | Potentiometer (10K / 5K) or encoder |
| Limit switch | Built-in |
| Cable length | 1 m |
Performance matrix
| Speed | Thrust |
|---|---|
| 5 mm/s | 900 N |
| 13 mm/s | 700 N |
| 15 mm/s | 600 N |
| 20 mm/s | 400 N |
| 26 mm/s | 300 N |
| 40 mm/s | 100 N |
| 80 mm/s | 50 N |
Configuration options
| Parameter | Code | Gear ratio | Speed / load | Full-load current 12/24/36/48 V (A) | IP |
|---|---|---|---|---|---|
| A | 30:1 | 5 mm/s / 900 N | 2.3 / 2.1 / 1.6 / 1.2 | IP54 | |
| B | 30:1 | 13 mm/s / 700 N | 2.3 / 2.1 / 1.5 / 1.2 | IP54 | |
| C | 30:1 | 15 mm/s / 600 N | 2.1 / 1.7 / 1.5 / 1 | IP54 | |
| D | 20:1 | 20 mm/s / 400 N | 1.8 / 1.6 / 1.4 / 1 | IP54 | |
| E | 20:1 | 26 mm/s / 300 N | 1.8 / 1.6 / 1.3 / 1 | IP54 | |
| F | 10:1 | 40 mm/s / 100 N | 1.5 / 1.4 / 1.3 / 1 | IP54 | |
| G | 10:1 | 80 mm/s / 50 N | 1.5 / 1.4 / 1.2 / 1 | IP54 |
Request technical documents
FAQ
What is the SLA01?
The SLA01 is an Elerover linear actuator rated IP54.
Does Elerover manufacture the SLA01?
Yes. Elerover is a linear actuator manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SLA01?
Key ratings from the product specifications include voltage 12 V / 24 V / 36 V / 48 V DC, load 900 N, stroke 20 – 800 mm, protection IP54. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA01?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
Manufacturer trust
Verified manufacturer identity for B2B sourcing — certificates and OEM capability without unverified capacity claims.
Request an OEM quote
Share force, stroke, voltage and quantity. Elerover will map your RFQ to a published series or OEM configuration.
