Linear Actuator
Model SLA01-WP
12 V DC 24 V DC SLA01-WP IP69 waterproof linear actuator for doors, windows and outdoor OEM motion
12V 24V SLA01-WP IP69 waterproof linear actuator for doors, windows and outdoor OEM motion from Elerover.
Key specifications
- Maximum load
- Up to 1200 N class
- Stroke
- 10–1000 mm (custom)
- Speed
- Up to 80 mm/s
- Voltage
- 12 V / 24 V / 36 V / 48 V DC
Product overview
12V 24V SLA01-WP IP69 waterproof linear actuator for doors, windows and outdoor OEM motion from Elerover. This DC linear actuator is built for OEM equipment that needs repeatable push/pull motion under industrial duty.
- Maximum load
- Up to 1200 N class
- Stroke
- 10–1000 mm (custom)
- Speed
- Up to 80 mm/s
- Voltage
- 12 V / 24 V / 36 V / 48 V DC
- IP rating
- IP69
- Feedback
- Potentiometer (10K / 5K) or encoder (optional)
Applications
- Doors and windows
- Trapdoors and cellars
- Solar tracking
- Agricultural machinery
- Medical equipment
- Vehicle and OEM automation
Benefits
- IP69 waterproof rating with rubber cover accessory
- Compact parallel-motor design

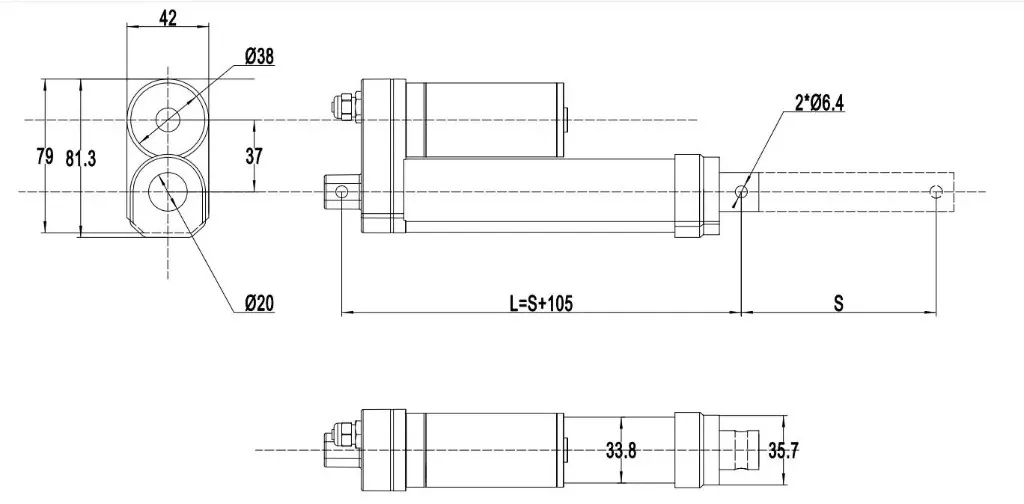

- Stroke 10–1000mm custom; L = S + 105mm
- Speed / load options from 50N@80mm/s to 900N@5mm/s
- 12V / 24V / 36V / 48V DC
- Built-in limit switches; optional potentiometer or encoder
- Low noise, maintenance-free sealed construction

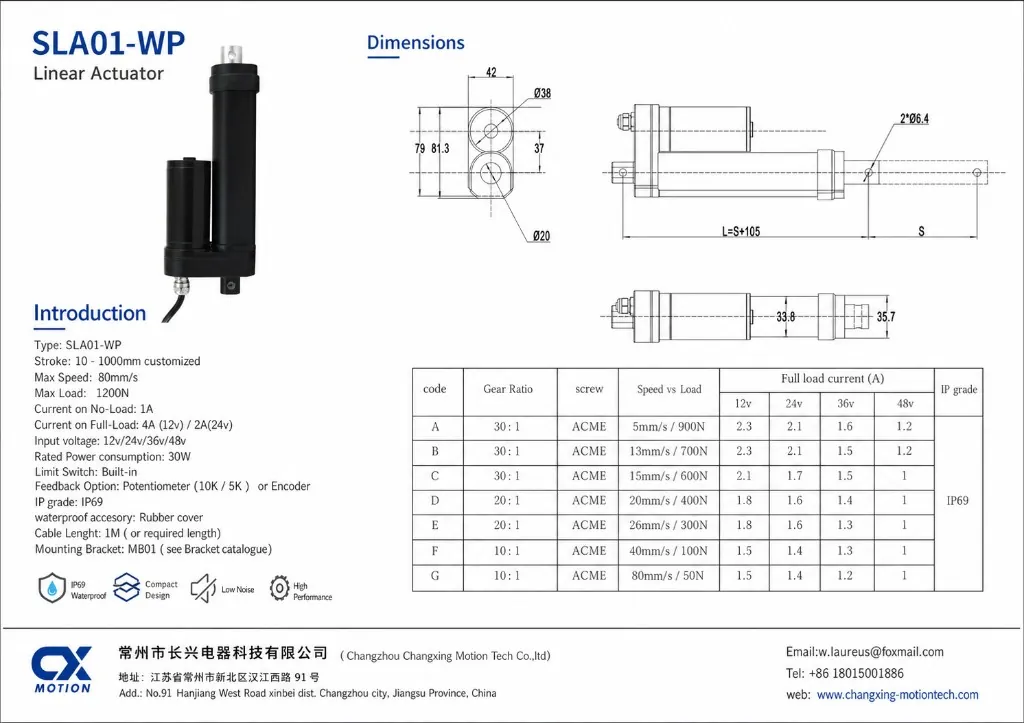

Technical specifications
| Maximum load | Up to 1200 N class |
|---|---|
| Stroke | 10–1000 mm (custom) |
| Speed | Up to 80 mm/s |
| Voltage | 12 V / 24 V / 36 V / 48 V DC |
| IP rating | IP69 |
| Feedback | Potentiometer (10K / 5K) or encoder (optional) |
| Limit switch | Built-in |
| Cable length | 1m standard (custom available) |
Performance matrix
| Speed | Thrust |
|---|---|
| 5 mm/s | 900 N |
| 13 mm/s | 700 N |
| 15 mm/s | 600 N |
| 20 mm/s | 400 N |
| 26 mm/s | 300 N |
| 40 mm/s | 100 N |
| 80 mm/s | 50 N |
Configuration options
| Parameter | Code | Gear Ratio | Screw | Speed / Load | Full-load Current @12V | @24V | @36V | @48V | IP |
|---|---|---|---|---|---|---|---|---|---|
| A | 30:1 | ACME | 5mm/s / 900N | 2.3A | 2.1A | 1.6A | 1.2A | IP69 | |
| B | 30:1 | ACME | 13mm/s / 700N | 2.3A | 2.1A | 1.5A | 1.2A | IP69 | |
| C | 30:1 | ACME | 15mm/s / 600N | 2.1A | 1.7A | 1.5A | 1.0A | IP69 | |
| D | 20:1 | ACME | 20mm/s / 400N | 1.8A | 1.6A | 1.4A | 1.0A | IP69 | |
| E | 20:1 | ACME | 26mm/s / 300N | 1.8A | 1.6A | 1.3A | 1.0A | IP69 | |
| F | 10:1 | ACME | 40mm/s / 100N | 1.5A | 1.4A | 1.3A | 1.0A | IP69 | |
| G | 10:1 | ACME | 80mm/s / 50N | 1.5A | 1.4A | 1.2A | 1.0A | IP69 |
Request technical documents
FAQ
What is the SLA01-WP?
The SLA01-WP is an Elerover linear actuator rated IP69.
Does Elerover manufacture the SLA01-WP?
Yes. Elerover is a linear actuator manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SLA01-WP?
Key ratings from the product specifications include voltage 12 V / 24 V / 36 V / 48 V DC, stroke 10–1000 mm (custom), protection IP69. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA01-WP?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
