Linear Actuator
Model SLA-PT02

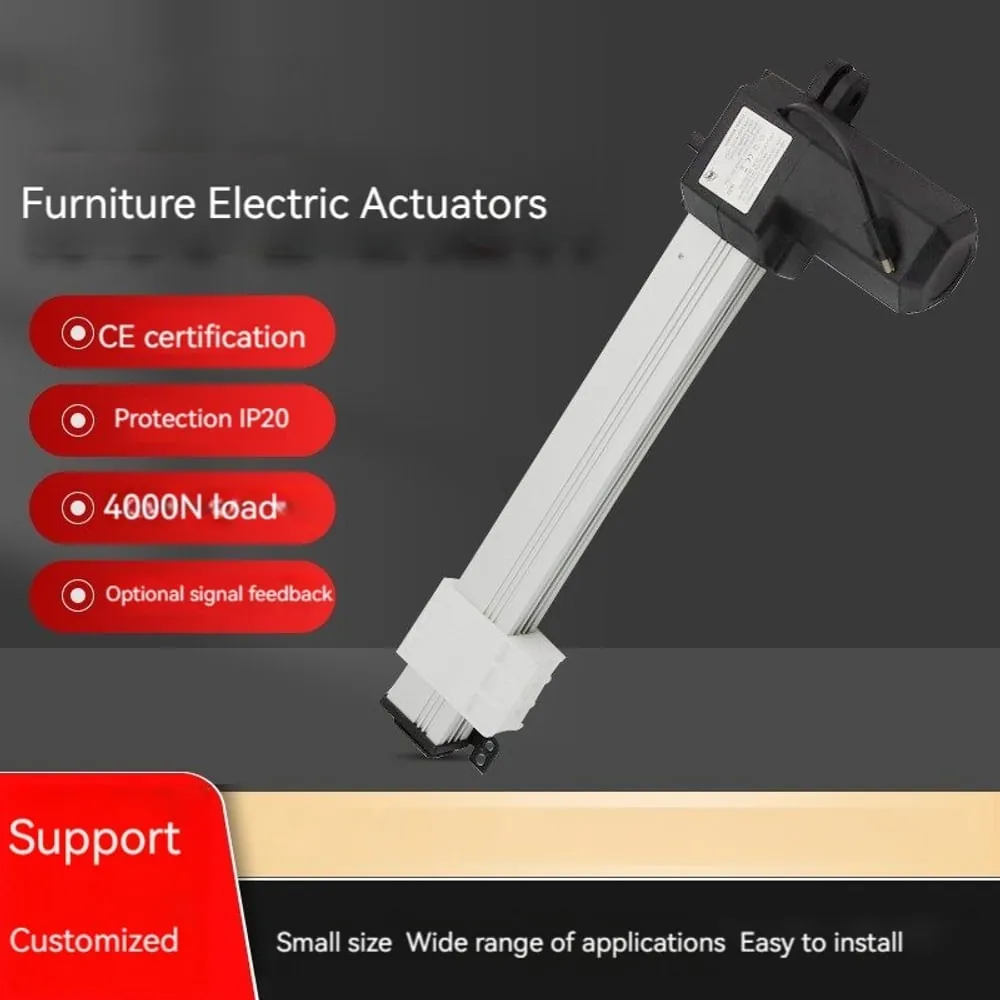

SLA-PT02 linear actuator for bed
SLA-PT02 linear actuator for bed from Elerover.
Key specifications
- Maximum load
- 750 N, 1500 N, 4000 N
- Stroke
- 50 mm — 1000 mm (Optional)
- Voltage
- 12 V or 24 V DC
- IP rating
- IP43
Product overview
SLA-PT02 linear actuator for bed from Elerover. This DC linear actuator is built for OEM equipment that needs repeatable push/pull motion under industrial duty.
- Maximum load
- 750 N, 1500 N, 4000 N
- Stroke
- 50 mm — 1000 mm (Optional)
- Voltage
- 12 V or 24 V DC
- IP rating
- IP43
- Duty cycle
- Maximum duty cycle of 10%, allowing for
Benefits
- High Thrust Capacity: Capable of up to 4000N thrust, providing powerful and stable movement.
- Voltage Options: Operates with 12V or 24V DC input voltage for versatile application.

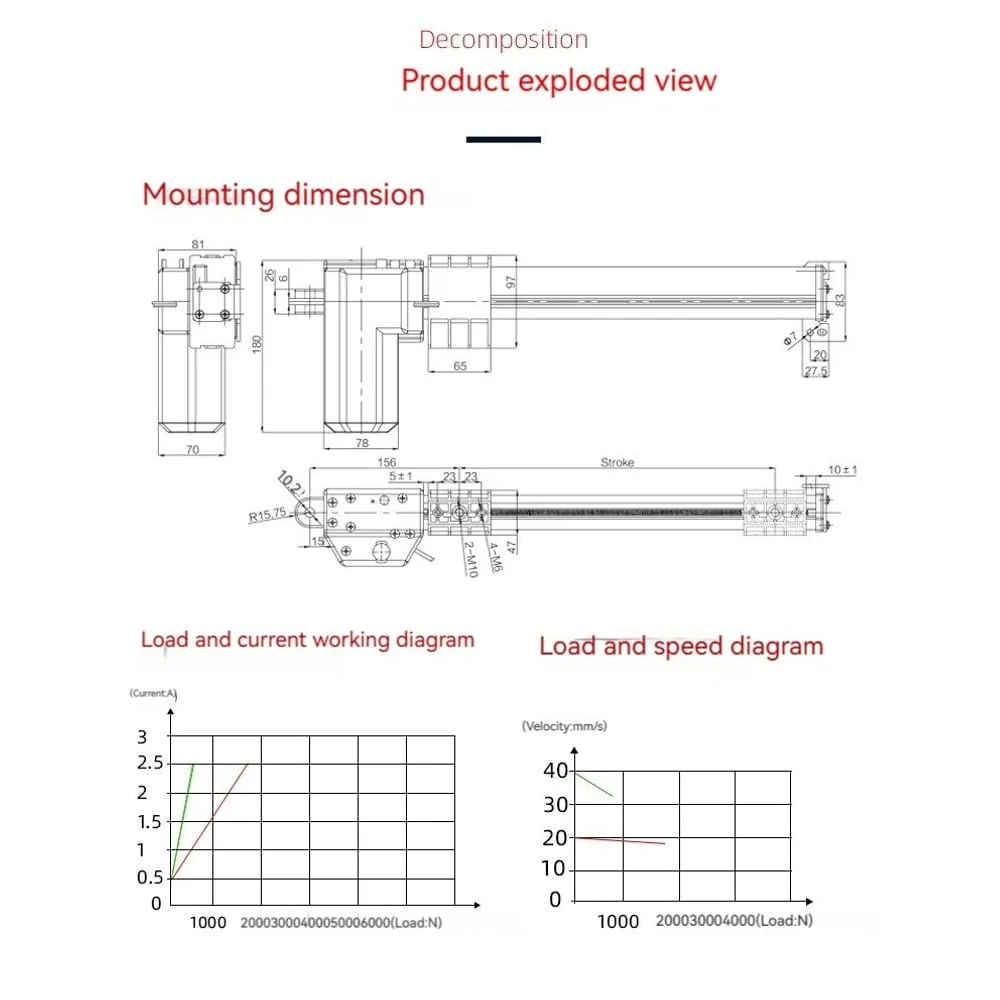

- Compact Design: Minimum installation dimension of S + 155mm, making it ideal for space-constrained environments.
- Standard Protection: IP43 protection class ensures durability and safe operation.
- Durable Construction: High-strength plastic housing protects the motor and gears, with black plastic parts and an anodized aluminum profile for added strength.
- Low Noise Level: Operates at a noise level of 48 dB when not loaded, ensuring a quiet and comfortable user experience.
- Elegant Appearance: Combines black plastic components with a natural anodized aluminum profile for a sleek and modern look.
- Duty Cycle: Maximum duty cycle of 10%, allowing for 2 minutes of continuous use followed by 18 minutes of rest.

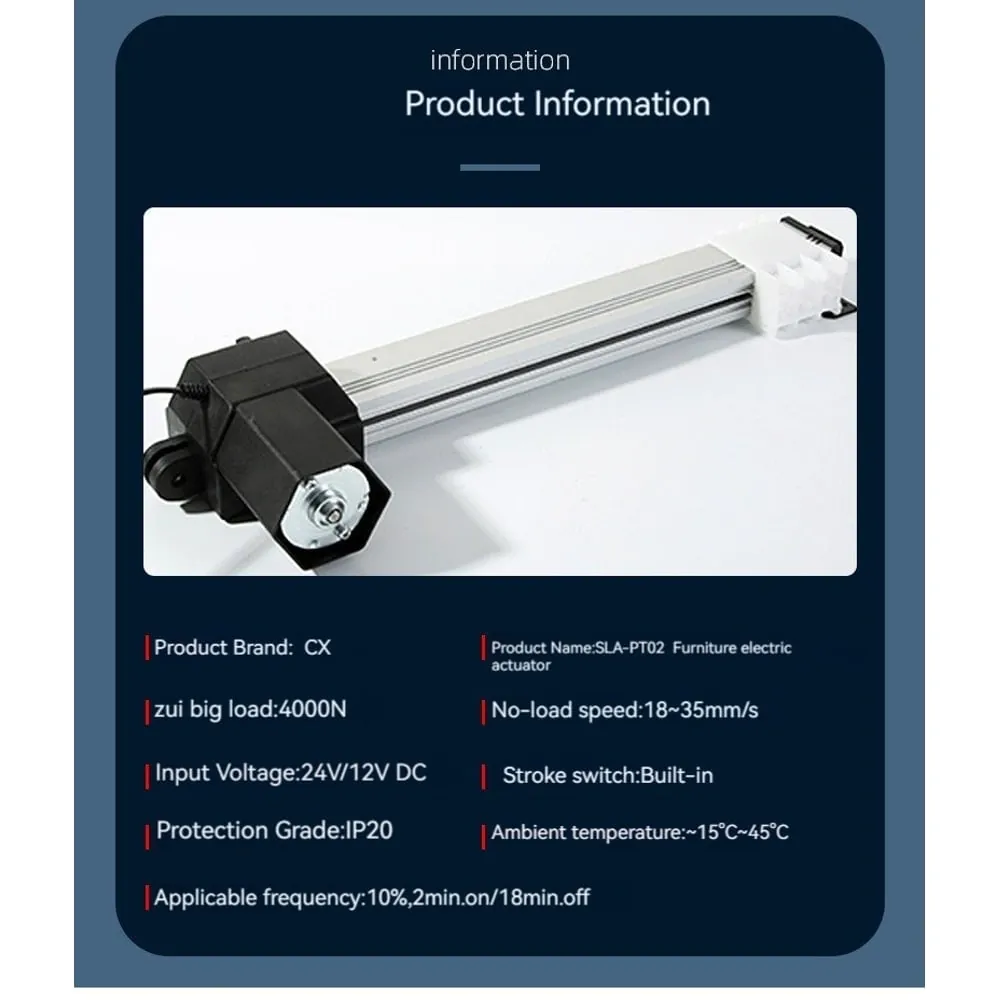

Technical specifications
| Maximum load | 750 N, 1500 N, 4000 N |
|---|---|
| Stroke | 50 mm — 1000 mm (Optional) |
| Voltage | 12 V or 24 V DC |
| IP rating | IP43 |
| Duty cycle | Maximum duty cycle of 10%, allowing for |
| Limit switch | Builtin / Inner (can not be adjust after left factory) |
Applications
- recliner sofas: smoothly adjusting the backrest position for optimal comfort.
- recliner chairs: providing precise and quiet backrest adjustments.
- home furniture: enhancing the functionality and comfort of various seating solutions.
Request technical documents
FAQ
What is the SLA-PT02?
The SLA-PT02 is an Elerover linear actuator rated IP43.
Does Elerover manufacture the SLA-PT02?
Yes. Elerover is a linear actuator manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SLA-PT02?
Key ratings from the product specifications include voltage 12 V or 24 V DC, stroke 50 mm — 1000 mm (Optional), protection IP43. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA-PT02?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
Request an OEM quote
Share force, stroke, voltage and quantity. Elerover will map your RFQ to a published series or OEM configuration.
