Electric Hydraulic Actuator
SLA-TG20S 4,000 N Electric hydraulic linear actuator
SLA-TG20S 4000N Electric hydraulic linear actuator from Elerover.
Key specifications
- Maximum push force
- 4000 N
- Maximum pull force
- 1100 N
- Stroke
- 50~800 mm
- Speed
- 26 mm/s – 50 mm/s
Product overview
SLA-TG20S 4000N Electric hydraulic linear actuator from Elerover. This electric-hydraulic actuator combines electric drive with hydraulic force for high-load linear motion.
- Maximum push force
- 4000 N
- Maximum pull force
- 1100 N
- Stroke
- 50~800 mm
- Voltage
- DC12 V / 24 V / 48 V
- Speed
- 26 mm/s – 50 mm/s
Applications
- lifting platforms
- industrial automation equipment
- heavy machinery
- construction equipment
- agricultural machinery
- medical devices
Benefits
- High Force Capability : Provides a robust 4000N jacking force and 1100N retracting force, ideal for demanding applications.

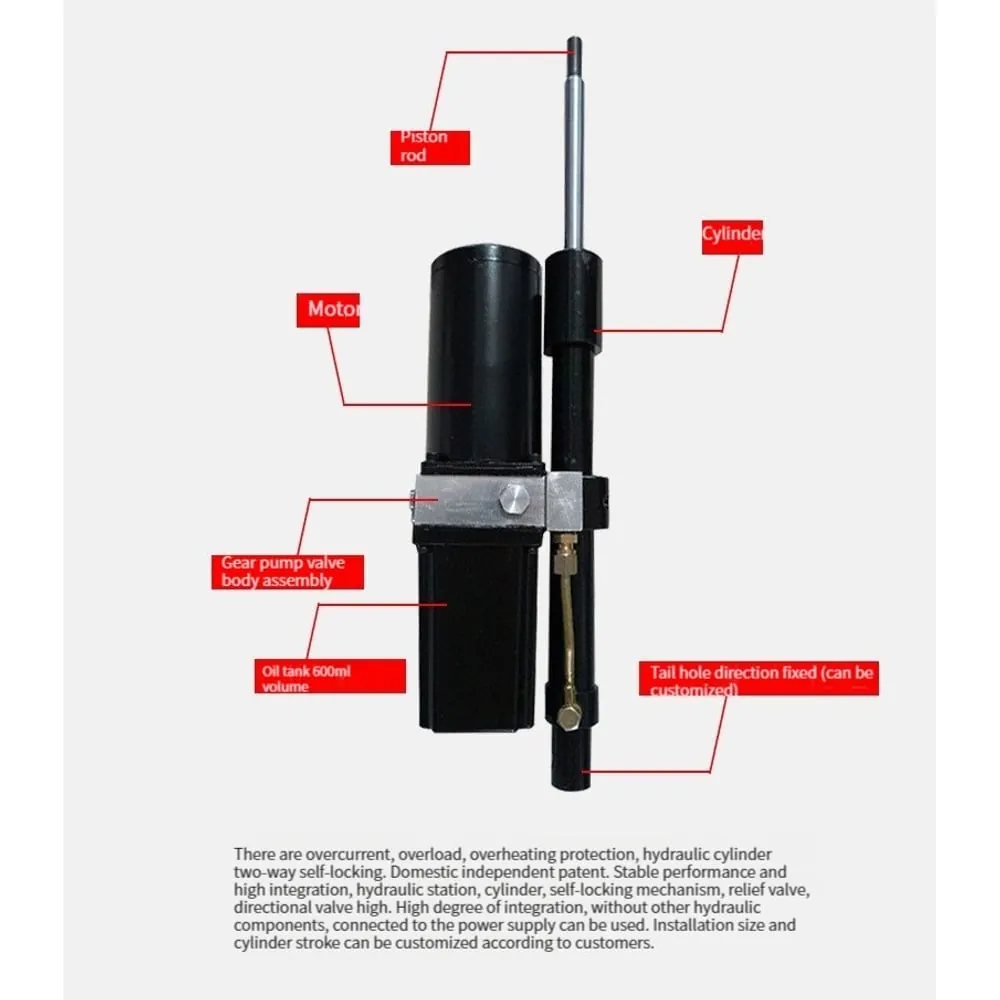

- Integrated Protection Mechanisms : Comes with over-current, overload, and overheat protection, along with a hydraulic cylinder two-way pressure self-locking system.
- High Stability and Performance : Features a self-locking valve, reversing valve, and over-pressure valve for enhanced stability.
- Ease of Use : Ready to use upon connection to a power supply, with no need for additional hydraulic components.

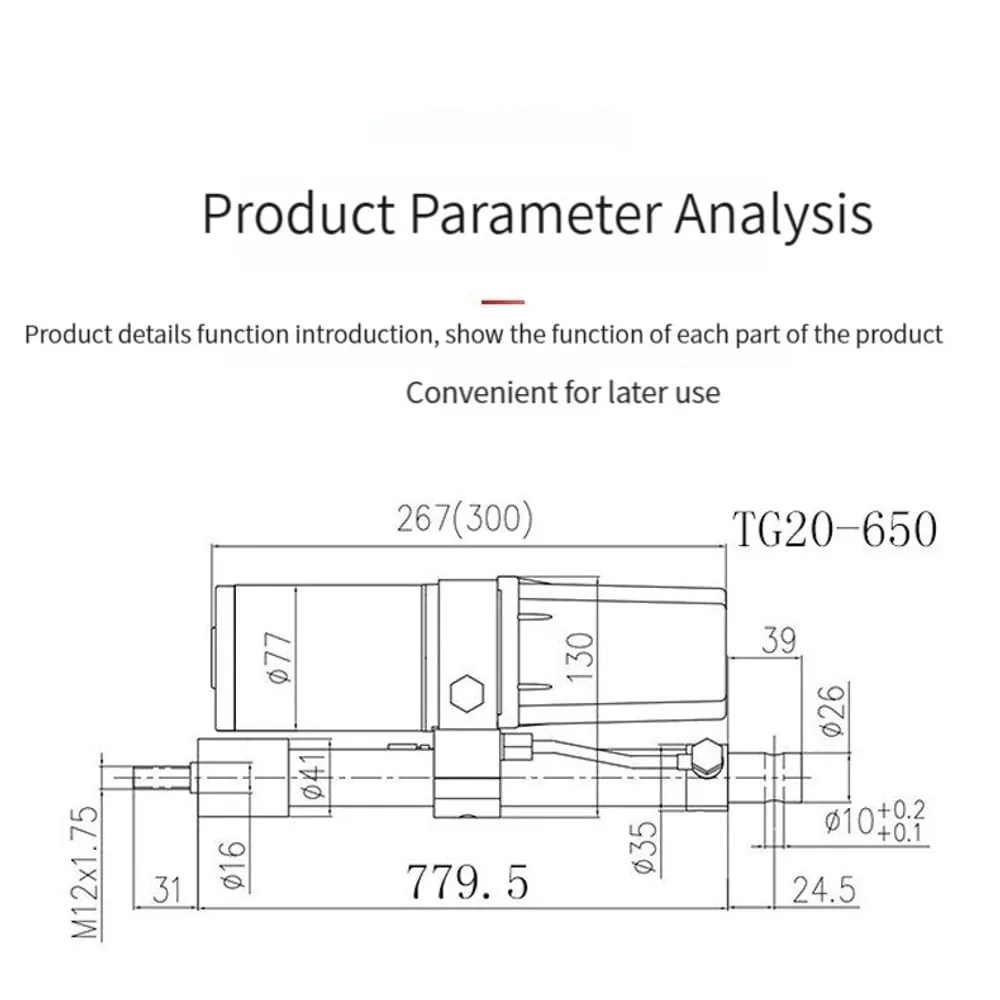

- Customizable Options : Pressure output interface and mounting dimensions can be tailored to specific requirements.
- Model : SLA-TG-20S
- Input Voltage : 12V / 24V / 48V DC
- Power : 300W / 800W
Technical specifications
| Maximum push force | 4000 N |
|---|---|
| Maximum pull force | 1100 N |
| Stroke | 50~800 mm |
| Voltage | DC12 V / 24 V / 48 V |
| Speed | 26 mm/s – 50 mm/s |
Performance matrix
| Speed | Thrust |
|---|---|
| 26 mm/s | 4000 N |
| 50 mm/s | 4000 N |
Configuration options
| Parameter | TG20 Customized | TG20 Customized |
|---|---|---|
| Voltage | DC12V/24V/48V | DC24V/48V |
| Power | 300W | 800W |
| Stroke | 50~800mm | 50~800mm |
| Push force | 4000N | 4000N |
| Pull force | 1100N | 1100N |
| Max Speed | 26-30mm/s | 50-58mm/s |
| Temperature | -20~60℃ | -20~60℃ |
| Frequency | 4min/each time | 4min/each time |
| Waterproof rate | IP6X | IP6X |
Request technical documents
FAQ
What is the SLA-TG20S?
The SLA-TG20S is an Elerover electric hydraulic actuator for industrial and OEM motion projects.
Does Elerover manufacture the SLA-TG20S?
Yes. Elerover is a electric hydraulic actuator manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SLA-TG20S?
Key ratings from the product specifications include voltage DC12 V / 24 V / 48 V, load 4000 N, stroke 50~800 mm. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA-TG20S?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
Request an OEM quote
Share force, stroke, voltage and quantity. Elerover will map your RFQ to a published series or OEM configuration.
