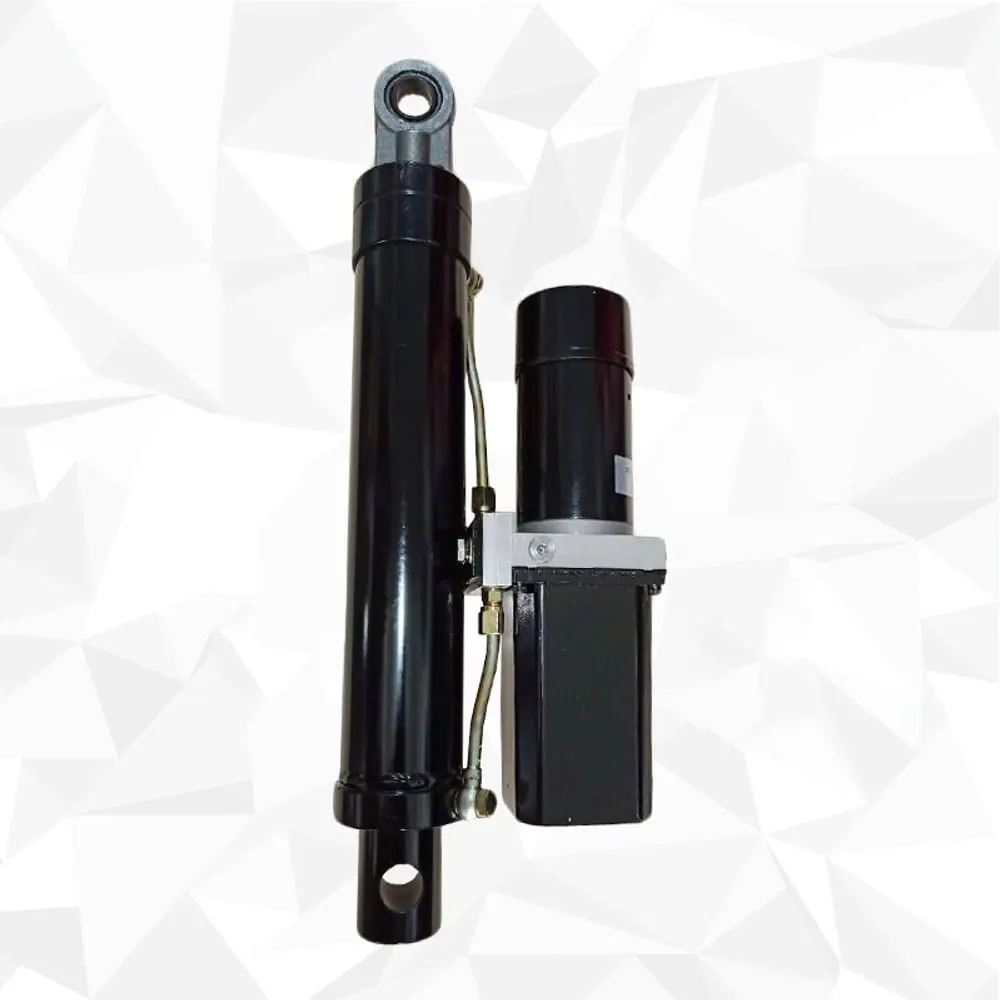

SLA-NH63S electric hydraulic actuator, main product view

1 / 5

Electric Hydraulic Actuator

Model SLA-NH63S

SLA-NH63S Electric Hydraulic Actuator — 50,000 N Max Push Force

SLA-NH63S 50000N load electric hydraulic linear actuator from Elerover.

Key specifications

Maximum push force
50,000 N
Maximum pull force
35,000 N
Stroke
100–600 mm
Speed
6-7 mm/s
Request OEM Quote WhatsApp

WhatsApp View in Selector Compare Email

Product overview

SLA-NH63S 50000N load electric hydraulic linear actuator from Elerover. This electric-hydraulic actuator combines electric drive with hydraulic force for high-load linear motion.

Maximum push force
50,000 N
Maximum pull force
35,000 N
Stroke
100–600 mm
Voltage
24 / 48 V DC
Speed
6-7 mm/s

Applications

  • lifting platforms
  • industrial automation equipment
  • heavy machinery
  • construction equipment
  • agricultural machinery
  • medical devices

Benefits

  • High Force Capability : Delivers a robust 5T jacking force and 3.2T retracting force, perfect for heavy-duty applications.
  • Integrated Protection Mechanisms : Features over-current, overload, and overheat protection, along with a hydraulic cylinder two-way pressure self-locking system.
  • High Stability and Performance : Includes a self-locking valve, reversing valve, and over-pressure valve for enhanced stability.
  • Ease of Use : Ready to use upon connection to a power supply, eliminating the need for additional hydraulic components.
  • Customizable Options : Pressure output interface and mounting dimensions can be tailored to specific requirements.
  • Model : SLA-NH-63S
  • Input Voltage : 24V / 48V DC
  • Power : 800W / 1000W / 1200W

Technical specifications

Maximum push force 50,000 N
Maximum pull force 35,000 N
Stroke 100–600 mm
Voltage 24 / 48 V DC
Speed 6-7 mm/s

Performance matrix

Speed Thrust
6 mm/s 50000 N
10 mm/s 50000 N
14 mm/s 50000 N

Configuration options

Parameter NH63 CustomizeNH63 CustomizeNH63 Customize
voltage DC24V/48VDC24V/48VDC24V/48V
power 800W1000W1200W
displacement 0.38CC0.6CC0.88CC
stroke 100-600mm100-600mm100-600mm
push force 50000N50000N50000N
pull force 35000N35000N35000N
speed 6-7mm/s10-11mm/s14-15mm/s
temperature -30-70℃-30-70℃-30-70℃
frequency 6min/ each time6min/ each time6min/ each time
waterproof rate IPX6IPX6IPX6

Request technical documents

FAQ

What is the SLA-NH63S?

The SLA-NH63S is an Elerover electric hydraulic actuator for industrial and OEM motion projects.

Does Elerover manufacture the SLA-NH63S?

Yes. Elerover is a electric hydraulic actuator manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.

What are the key specifications of the SLA-NH63S?

Key ratings from the product specifications include voltage 24 / 48 V DC, load 50000 N, stroke 100–600 mm. See the Technical Specifications section on this page for the full table.

How do I request a quote for the SLA-NH63S?

Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.

Request an OEM quote

Share force, stroke, voltage and quantity. Elerover will map your RFQ to a published series or OEM configuration.

WhatsApp Chat on WhatsApp for a fast OEM reply

SLA-NH63S

Optional technical details

Required: email, application, force/load, stroke length, quantity, and privacy consent.
