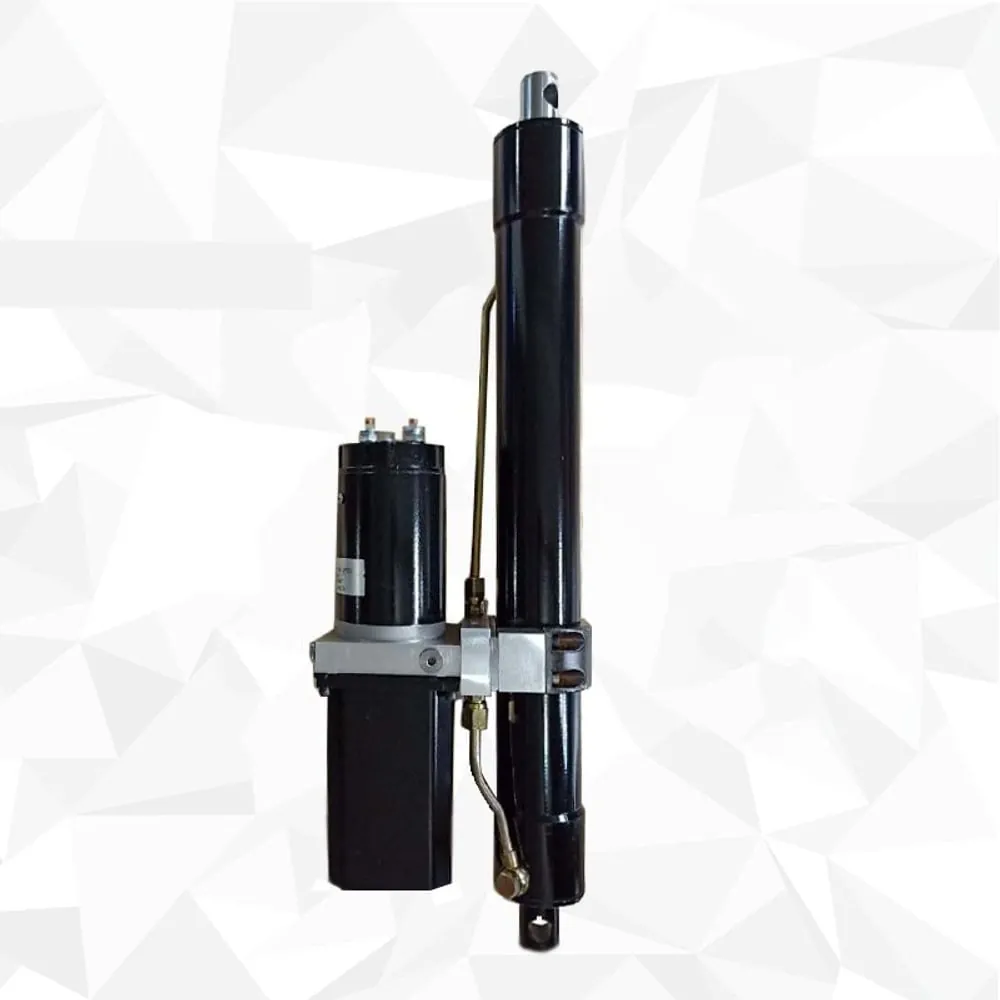

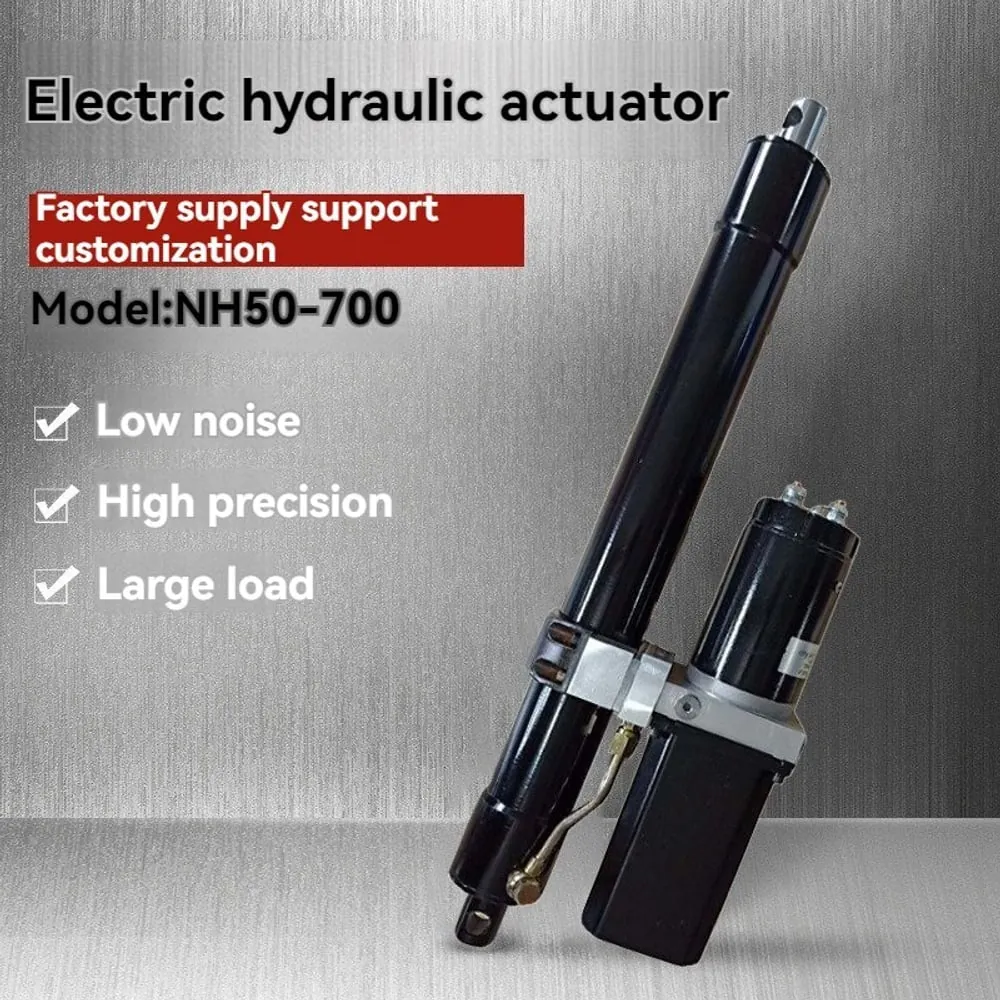

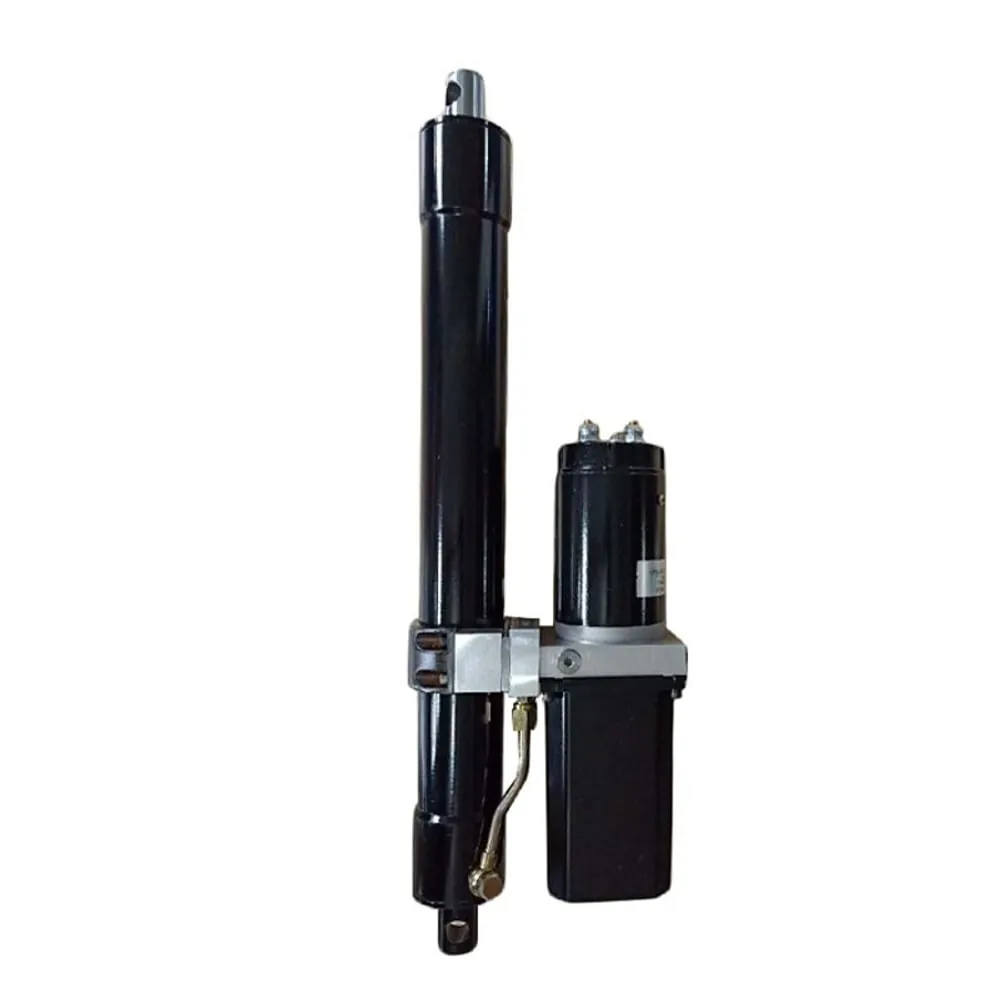

SLA-NH50S electric hydraulic actuator, main product view

1 / 5

Electric Hydraulic Actuator

SLA-NH50S 32,000 N load electric hydraulic linear actuator

SLA-NH50S 32000N load electric hydraulic linear actuator from Elerover.

Key specifications

Maximum push force
3.2 t
Maximum pull force
2.5 t
Stroke
50~800 mm
Speed
10 mm/s – 16 mm/s
Request OEM Quote WhatsApp

WhatsApp View in Selector Compare Email

Product overview

SLA-NH50S 32000N load electric hydraulic linear actuator from Elerover. This electric-hydraulic actuator combines electric drive with hydraulic force for high-load linear motion.

Maximum push force
3.2 t
Maximum pull force
2.5 t
Stroke
50~800 mm
Voltage
DC24 V / 48 V
Speed
10 mm/s – 16 mm/s

Applications

  • lifting platforms
  • industrial automation equipment
  • heavy machinery
  • construction equipment
  • agricultural machinery
  • medical devices

Benefits

  • High Force Capability : Delivers a powerful 3.2T jacking force and 2.5T retracting force, ideal for heavy-duty applications.
  • Integrated Protection Mechanisms : Features over-current, overload, and overheat protection, along with a hydraulic cylinder two-way pressure self-locking system.
  • High Stability and Performance : Includes a self-locking valve, reversing valve, and over-pressure valve for enhanced stability.
  • Ease of Use : Ready to use upon connection to a power supply, with no need for additional hydraulic components.
  • Customizable Options : Pressure output interface and mounting dimensions can be tailored to specific requirements.
  • Model : SLA-NH-50S
  • Input Voltage : 12V / 24V / 48V DC
  • Power : 800W / 1000W

Technical specifications

Maximum push force 3.2 t
Maximum pull force 2.5 t
Stroke 50~800 mm
Voltage DC24 V / 48 V
Speed 10 mm/s – 16 mm/s

Performance matrix

Speed Thrust
10 mm/s 32000 N
16 mm/s 32000 N

Configuration options

Parameter NH50 CustomizeNH50 Customize
Voltage DC24V/48VDC 24V/48V
Power 800W1000W
Stroke 50~800mm50~800mm
Push force 3.2T3.2T
Pull force 2.5T2.5T
Max speed 10-11mm/s16-17mm/s
Temperature -20-60℃-20-60℃
Frequency 4min/each time4min/each time
waterproof IP6XIP6X

Request technical documents

FAQ

What is the SLA-NH50S?

The SLA-NH50S is an Elerover electric hydraulic actuator for industrial and OEM motion projects.

Does Elerover manufacture the SLA-NH50S?

Yes. Elerover is a electric hydraulic actuator manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.

What are the key specifications of the SLA-NH50S?

Key ratings from the product specifications include voltage DC24 V / 48 V, load 32000 N, stroke 50~800 mm. See the Technical Specifications section on this page for the full table.

How do I request a quote for the SLA-NH50S?

Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
