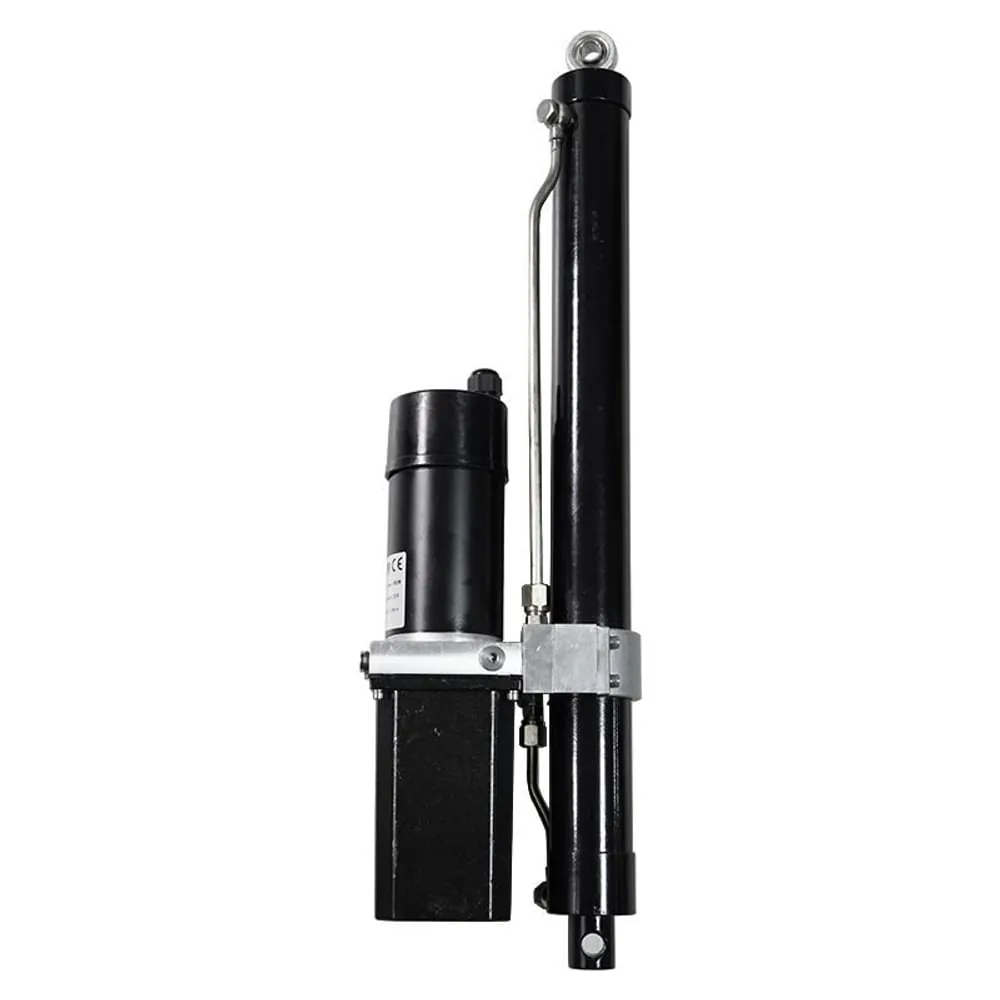

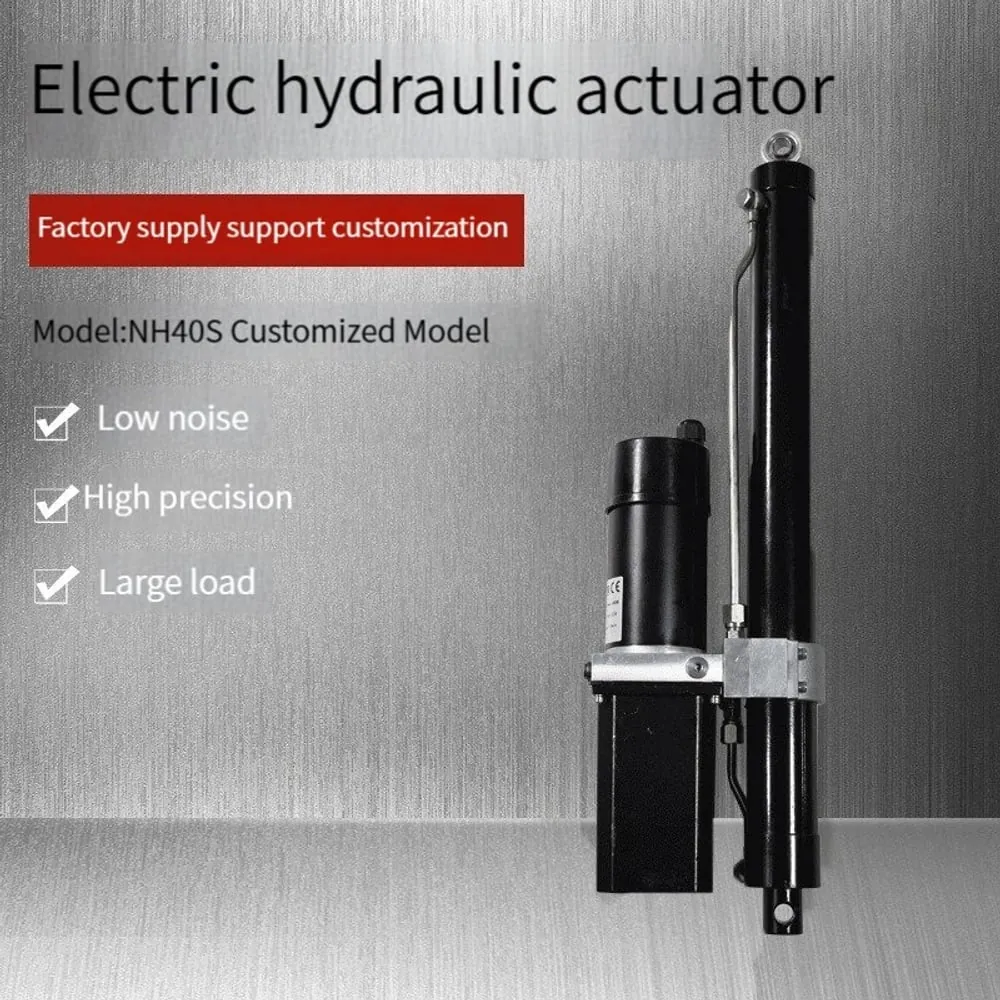

SLA-NH40S electric hydraulic actuator, main product view

1 / 5

Electric Hydraulic Actuator

SLA-NH40S 20,000 N load electric hydraulic linear actuator

SLA-NH40S 20000N load electric hydraulic linear actuator from Elerover.

Key specifications

Maximum push force
2 t
Maximum pull force
1.3 t
Stroke
50~800 mm
Speed
16 mm/s – 25 mm/s
Request OEM Quote WhatsApp

WhatsApp View in Selector Compare Email

Product overview

SLA-NH40S 20000N load electric hydraulic linear actuator from Elerover. This electric-hydraulic actuator combines electric drive with hydraulic force for high-load linear motion.

Maximum push force
2 t
Maximum pull force
1.3 t
Stroke
50~800 mm
Voltage
DC 24 V / 48 V
Speed
16 mm/s – 25 mm/s

Applications

  • lifting platforms
  • industrial automation equipment
  • heavy machinery
  • construction equipment
  • agricultural machinery
  • medical devices

Benefits

  • High Force Capability : Delivers 2T jacking force and 1.3T retracting force, perfect for heavy-duty applications.
  • Integrated Protection Mechanisms : Features over-current, overload, and overheat protection, along with a hydraulic cylinder two-way pressure self-locking system.
  • High Stability and Performance : Includes a self-locking valve, reversing valve, and over-pressure valve for enhanced stability.
  • Ease of Use : Ready to use upon connection to a power supply, eliminating the need for additional hydraulic components.
  • Customizable Options : Pressure output interface and mounting dimensions can be tailored to specific requirements.
  • Model : SLA-NH-40S
  • Input Voltage : 24V / 48V DC
  • Power : 800W / 1000W

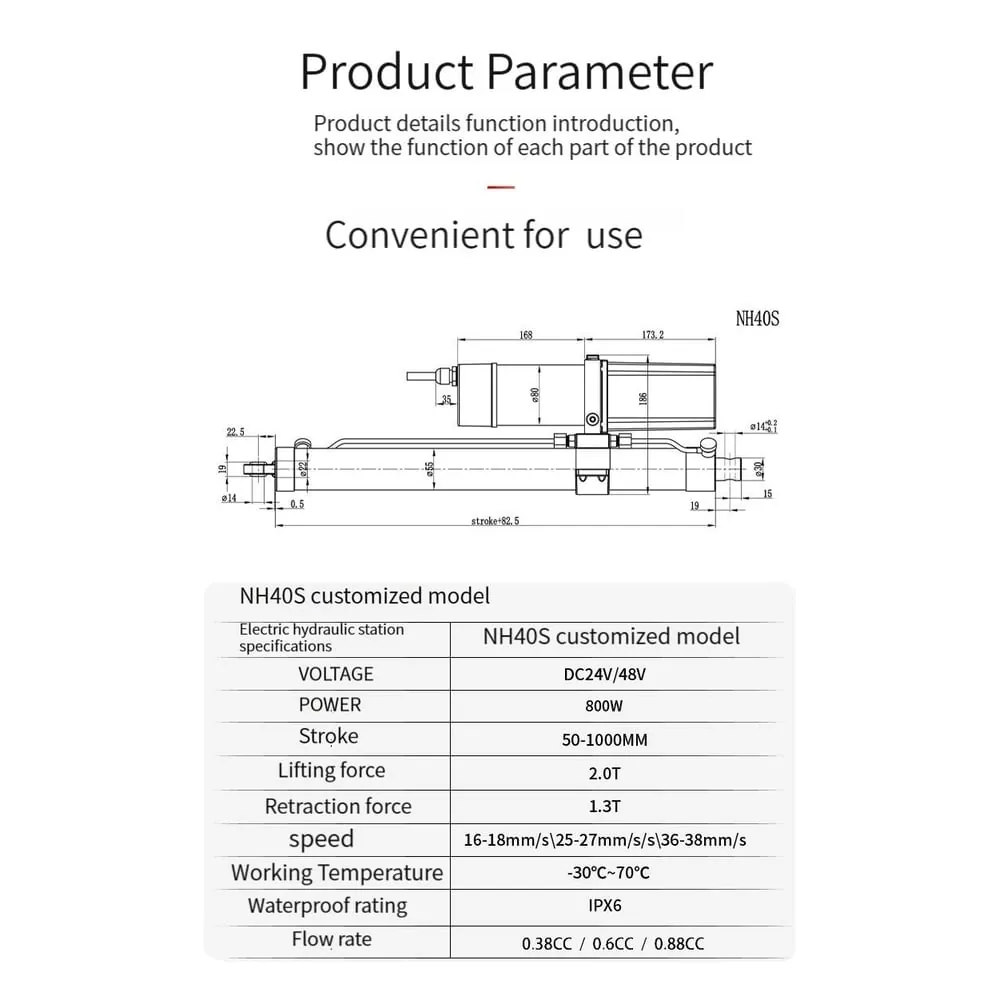

Technical specifications

Maximum push force 2 t
Maximum pull force 1.3 t
Stroke 50~800 mm
Voltage DC 24 V / 48 V
Speed 16 mm/s – 25 mm/s

Performance matrix

Speed Thrust
16 mm/s 20000 N
25 mm/s 20000 N

Configuration options

Parameter NH40 CustomizedNH40 Customized
Voltage DC 24V/48VDC 24V/48V
Power 800W1000W
Stroke 50~800mm50~800mm
Push force 2T2T
Pull force 1.3T1.3T
Max Speed 16-18mm/s25-27mm/s
Temperature -20~60℃-20~60℃
Frequency 4min/ each time4min/ each time
Waterproof rate IP6XIP6X

Request technical documents

FAQ

What is the SLA-NH40S?

The SLA-NH40S is an Elerover electric hydraulic actuator for industrial and OEM motion projects.

Does Elerover manufacture the SLA-NH40S?

Yes. Elerover is a electric hydraulic actuator manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.

What are the key specifications of the SLA-NH40S?

Key ratings from the product specifications include voltage DC 24 V / 48 V, load 20000 N, stroke 50~800 mm. See the Technical Specifications section on this page for the full table.

How do I request a quote for the SLA-NH40S?

Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
