Linear Actuator
Model SLA-17K
12 V DC 24 V DC SLA-17K 17,000 N industrial linear actuator
12V 24V SLA-17K 17000N industrial linear actuator from Elerover.
Key specifications
- Maximum load
- 17000 N / 1700 kg / 3800 lbs
- Stroke
- 50–1000mm (customizable)
- Speed
- 6.5 mm/s – 35 mm/s
- Voltage
- 12 V / 24 V / 36 V / 48 V DC
Product overview
12V 24V SLA-17K 17000N industrial linear actuator from Elerover. This DC linear actuator is built for OEM equipment that needs repeatable push/pull motion under industrial duty.
- Maximum load
- 17000 N / 1700 kg / 3800 lbs
- Stroke
- 50–1000mm (customizable)
- Speed
- 6.5 mm/s – 35 mm/s
- Voltage
- 12 V / 24 V / 36 V / 48 V DC
- IP rating
- IP67
- Feedback
- Optional Hall / potentiometer / end-stop / magnetic / analog
Applications
- Construction vehicles and machinery
- Agricultural machinery
- Industrial automation
- PV solar and CSP plants
- Outdoor power equipment
- Medical bed and accessibility equipment
- Ventilation and animal husbandry
Benefits
- Heavy-duty industrial electric linear actuator up to 17000N dynamic force
- Working voltage: 12V / 24V / 36V / 48V DC
- IP67 weather protection for outdoor and harsh environments
- Ball screw and ACME screw transmission options (codes A–J)

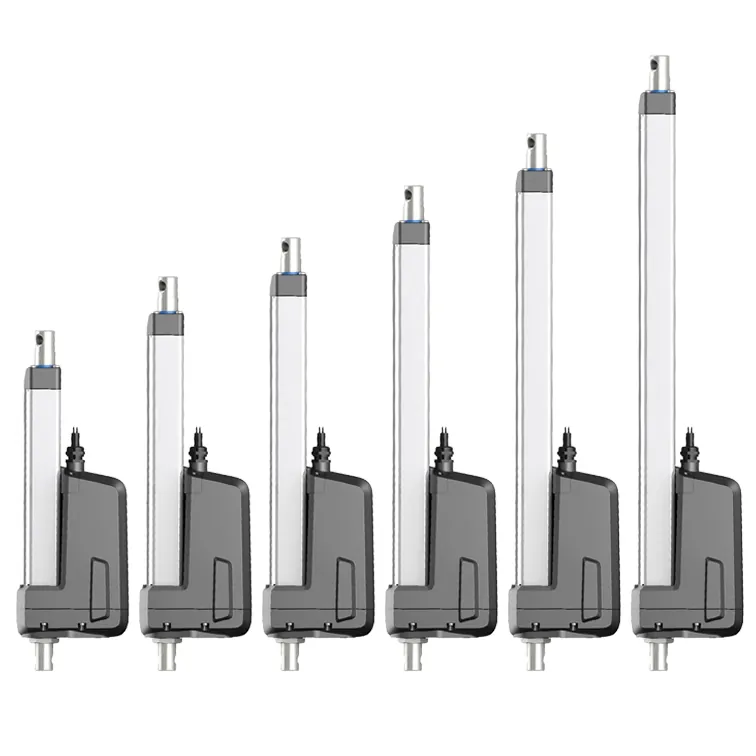

- Stroke range 50–1000mm (customizable)

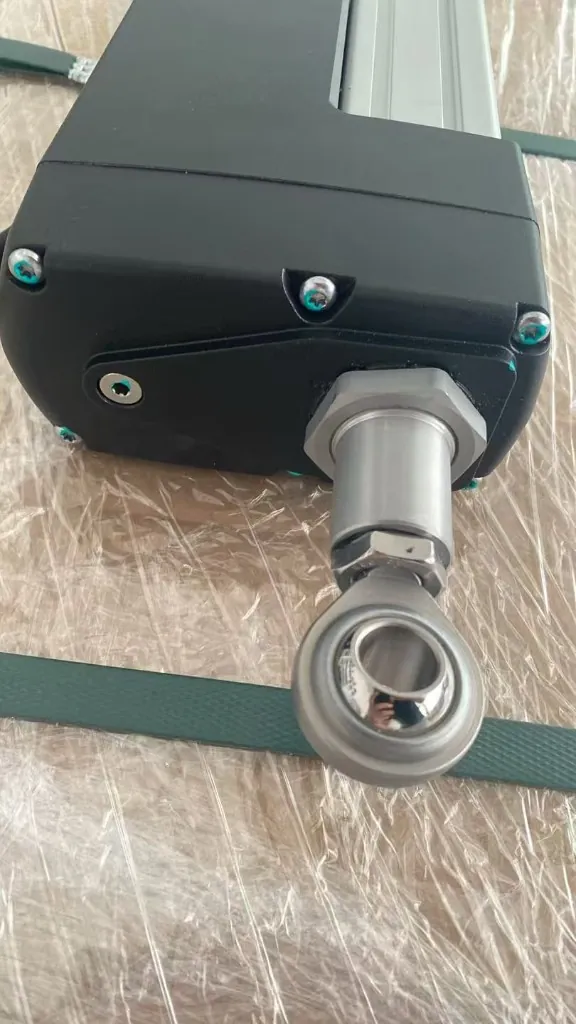

- Spherical rod-end mounts with Ø20mm mounting holes
- Aluminum alloy housing with stainless steel piston rod
- Standard manual override for emergency operation without power
Technical specifications
| Maximum load | 17000 N / 1700 kg / 3800 lbs |
|---|---|
| Stroke | 50–1000mm (customizable) |
| Stroke options | 50–1000mm (customizable) |
| Speed | 6.5 mm/s – 35 mm/s |
| Voltage | 12 V / 24 V / 36 V / 48 V DC |
| IP rating | IP67 |
| Duty cycle | 20–35% (by transmission code) |
| Feedback | Optional Hall / potentiometer / end-stop / magnetic / analog |
| Mounting type | Ø20mm spherical rod ends |
| Noise level | ≤65 dB |
| Motor type | Brushed DC |
| Manual override | Yes (standard) |
Performance matrix
| No-load speed | Full-load speed | Thrust | Self-locking force |
|---|---|---|---|
| 6.5 mm/s | 5 mm/s | 17000 N | 20000 N |
| 7 mm/s | 5 mm/s | 12000 N | 15000 N |
| 9 mm/s | 6.5 mm/s | 13500 N | 15000 N |
| 10 mm/s | 7 mm/s | 10000 N | 12000 N |
| 14 mm/s | 9 mm/s | 10000 N | 12000 N |
| 18 mm/s | 13 mm/s | 7500 N | 10000 N |
| 23 mm/s | 13 mm/s | 5000 N | 8000 N |
| 28 mm/s | 20 mm/s | 5000 N | 8000 N |
| 35 mm/s | 23 mm/s | 3500 N | 5000 N |
Request technical documents
FAQ
What is the SLA-17K?
The SLA-17K is an Elerover linear actuator rated IP67.
Does Elerover manufacture the SLA-17K?
Yes. Elerover is a linear actuator manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SLA-17K?
Key ratings from the product specifications include voltage 12 V / 24 V / 36 V / 48 V DC, load 17000 N, stroke 50–1000mm (customizable), protection IP67. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA-17K?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
Request an OEM quote
Share force, stroke, voltage and quantity. Elerover will map your RFQ to a published series or OEM configuration.
