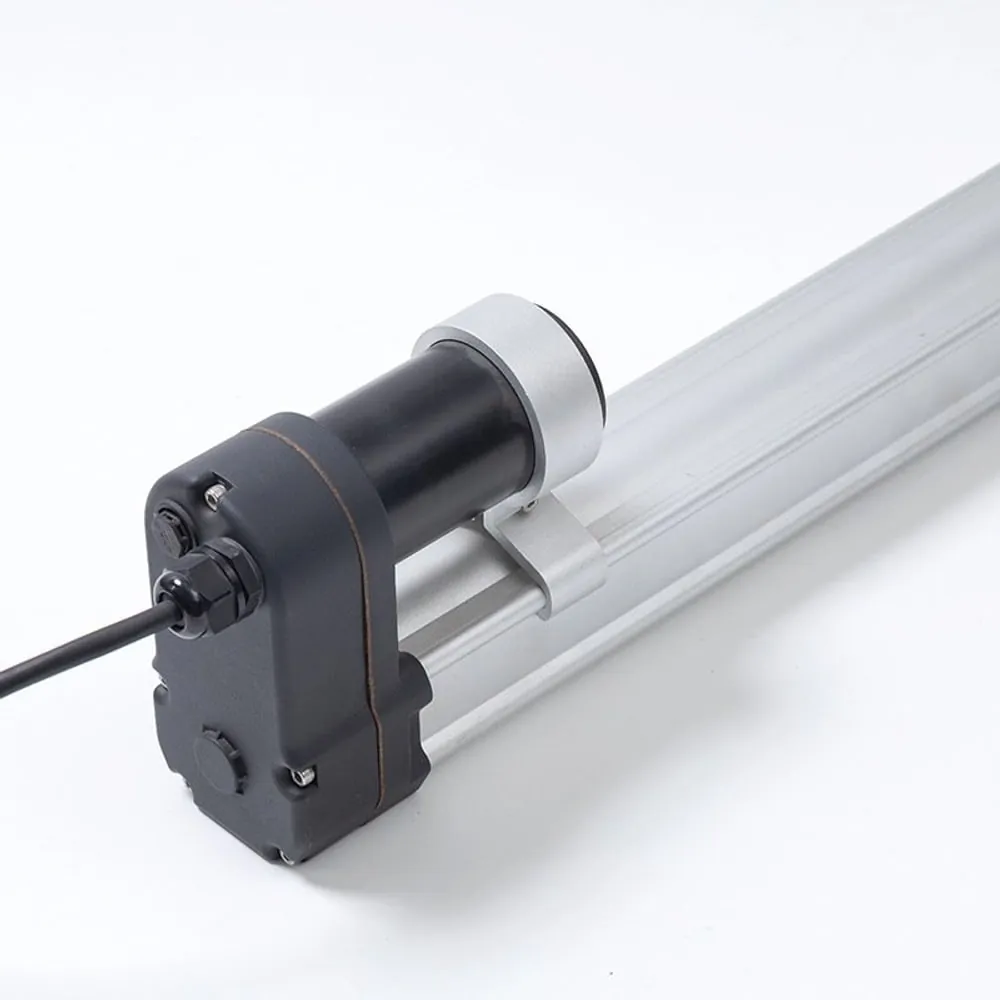

SLA-15KB linear actuator, main product view

1 / 5

Linear Actuator

Model SLA-15KB

SLA-15KB 15,000 N linear actuator for solar tracker

SLA-15KB 15000N linear actuator for solar tracker from Elerover.

Key specifications

Maximum load
10000 / 12000 / 15000 N (Optional and other loads can be customized)
Stroke
50 / 100 / 150 / 200 / 250 / 300 / 350 / 400 / 450 / 500 / 550 / 600 / 650 / 700 / 750 / 800 / 850 / 900 / 950 / 1200 mm (Optional)
Speed
1.4 mm/s, 2.0 mm/s, 3.0 mm/s
Voltage
12 V / 24 V DC
Request OEM Quote WhatsApp

WhatsApp View in Selector Compare Email

Product overview

SLA-15KB 15000N linear actuator for solar tracker from Elerover. This DC linear actuator is built for OEM equipment that needs repeatable push/pull motion under industrial duty.

Maximum load
10000 / 12000 / 15000 N (Optional and other loads can be customized)
Stroke
50 / 100 / 150 / 200 / 250 / 300 / 350 / 400 / 450 / 500 / 550 / 600 / 650 / 700 / 750 / 800 / 850 / 900 / 950 / 1200 mm (Optional)
Speed
1.4 mm/s, 2.0 mm/s, 3.0 mm/s
Voltage
12 V / 24 V DC
IP rating
IP66 for outdoor use (dynamic)
Feedback
Hall sensor

Benefits

  • High-Strength Aluminum Housing: Ideal for harsh environments, ensuring durability and longevity.
  • Comprehensive Braking & Strong Self-Locking: Features a non-rotating piston rod eye, perfect for precise solar angle adjustments.
  • DC Permanent Magnet Motor: Compact, sturdy, and easy to install, providing consistent performance.
  • Customizable Options: Choose from various stroke lengths (50mm to 1200mm) and travel speeds (1.4mm/s, 2.0mm/s, 3.0mm/s) to meet your specific needs.
  • Signal Feedback Hall Sensor: Supported for enhanced control and monitoring.
  • Limit Switch Options: Available with built-in or external magnetic limit switches for flexible installation.
  • High and Stable Quality: Passed over 500 hours of salt spray, waterproof, high/low temperature, ultraviolet light, and impact tests, ensuring long service life.
  • Voltage: 12V/24V DC

Technical specifications

Maximum load 10000 / 12000 / 15000 N (Optional and other loads can be customized)
Stroke 50 / 100 / 150 / 200 / 250 / 300 / 350 / 400 / 450 / 500 / 550 / 600 / 650 / 700 / 750 / 800 / 850 / 900 / 950 / 1200 mm (Optional)
Speed 1.4 mm/s, 2.0 mm/s, 3.0 mm/s
Voltage 12 V / 24 V DC
IP rating IP66 for outdoor use (dynamic)
Feedback Hall sensor
Limit switch Built-in limit switch or external magnetic limit switch
Noise level 56 dB DS/EN IS08746
Cable length Standard: 500-800mm, cable length can also be customized.
Certifications CE

Applications

No product-specific application list is published.

Request technical documents

FAQ

What is the SLA-15KB?

The SLA-15KB is an Elerover linear actuator rated IP66.

Does Elerover manufacture the SLA-15KB?

Yes. Elerover is a linear actuator manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.

What are the key specifications of the SLA-15KB?

Key ratings from the product specifications include voltage 12 V / 24 V DC, load 15000 N, stroke 50 / 100 / 150 / 200 / 250 / 300 / 350 / 400 / 450 / 500 / 550 / 600 / 650 / 700 / 750 / 800 / 850 / 900 / 950 / 1200 mm (Optional), protection IP66. See the Technical Specifications section on this page for the full table.

How do I request a quote for the SLA-15KB?

Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
