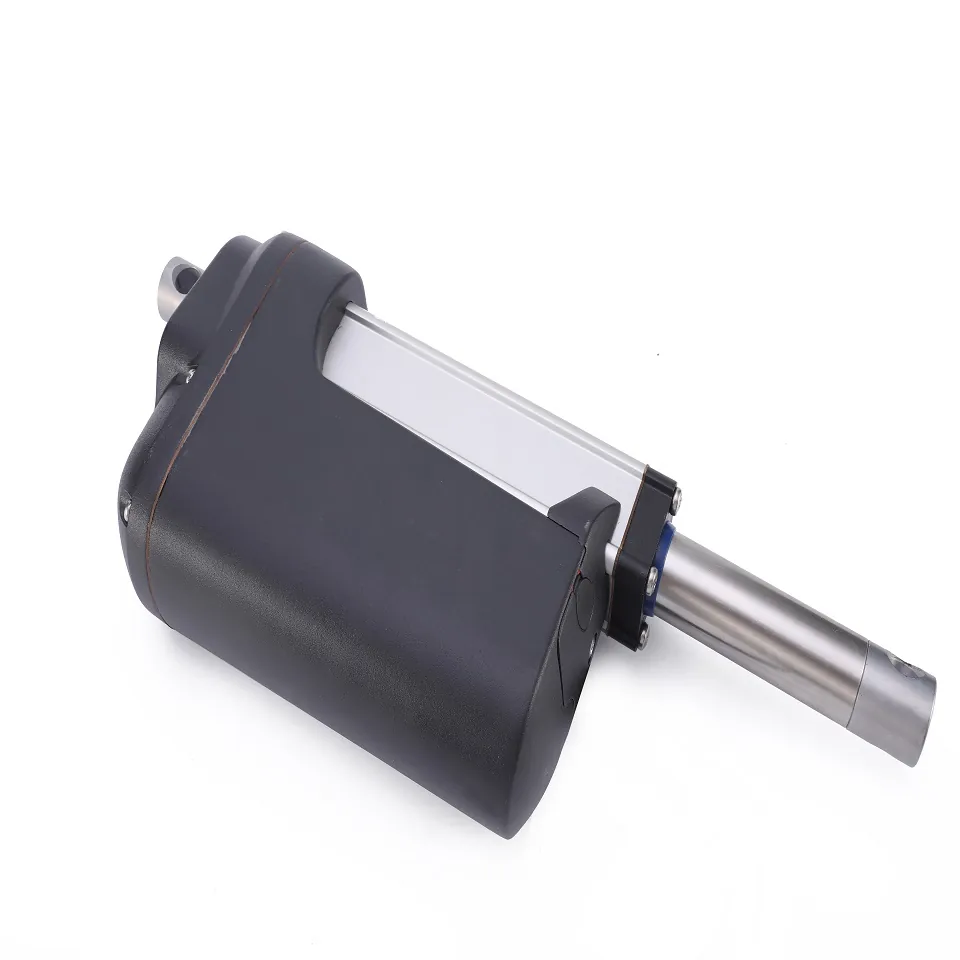

SLA-12K linear actuator, main product view

1 / 5

Linear Actuator

SLA-12K linear actuator 12,000 N heavy duty dc actuator

The SLA-12K is a heavy-duty DC linear actuator rated to 12,000 N maximum thrust for industrial OEM motion.

Key specifications

Maximum load
12000 N / 1200 kg / 2700 lbs at 6 mm/s
Stroke
300 mm
Speed
6 mm/s – 60 mm/s
Voltage
DC 12 V or DC 24 V, 24 V
Request OEM Quote WhatsApp

WhatsApp View in Selector Compare Email

Product overview

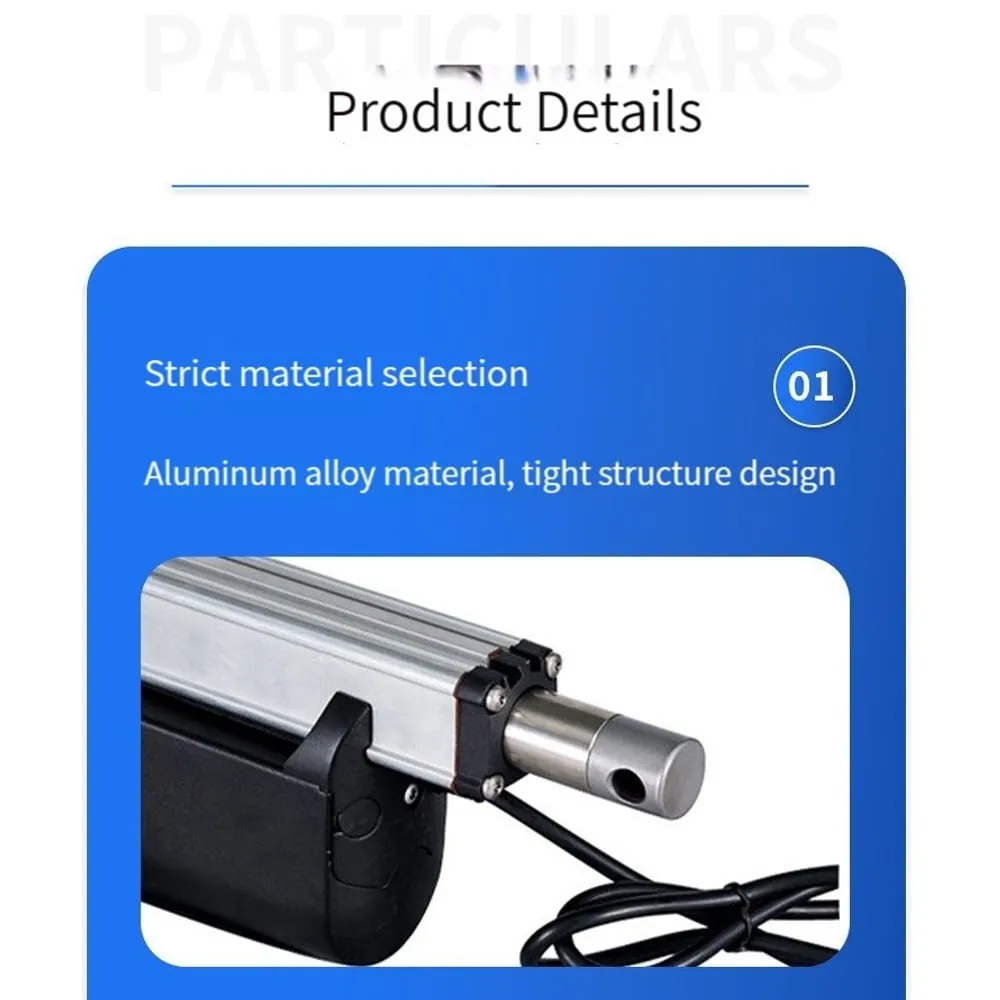

The SLA-12K is a heavy-duty DC linear actuator rated to 12,000 N maximum thrust for industrial OEM motion. It combines a metal housing and metal gearbox with a stainless-steel telescopic tube and aluminum outer tube for harsh environments.

Maximum load
12000 N / 1200 kg / 2700 lbs at 6 mm/s
Stroke
300 mm
Speed
6 mm/s – 60 mm/s
Voltage
DC 12 V or DC 24 V, 24 V
IP rating
IP66
Duty cycle
10%, maximum 2 min continuous use

Applications

  • Solar Tracking
  • Agricultural
  • Construction
  • Lifting

Benefits

  • Heavy duty design with maximum thrust up to 12000 N.
  • Metal housing and metal gearbox for harsh working environments.
  • Stainless steel telescopic tube with aluminum alloy outer tube.
  • Advanced waterproof and dustproof technology with IP66 rating.
  • Built-in overload and overheat protection for the motor.
  • Built-in limit switches stop the actuator automatically at both ends.
  • Manual override allows operation with hand tools during power failure.
  • Maintenance-free electric linear motion solution.

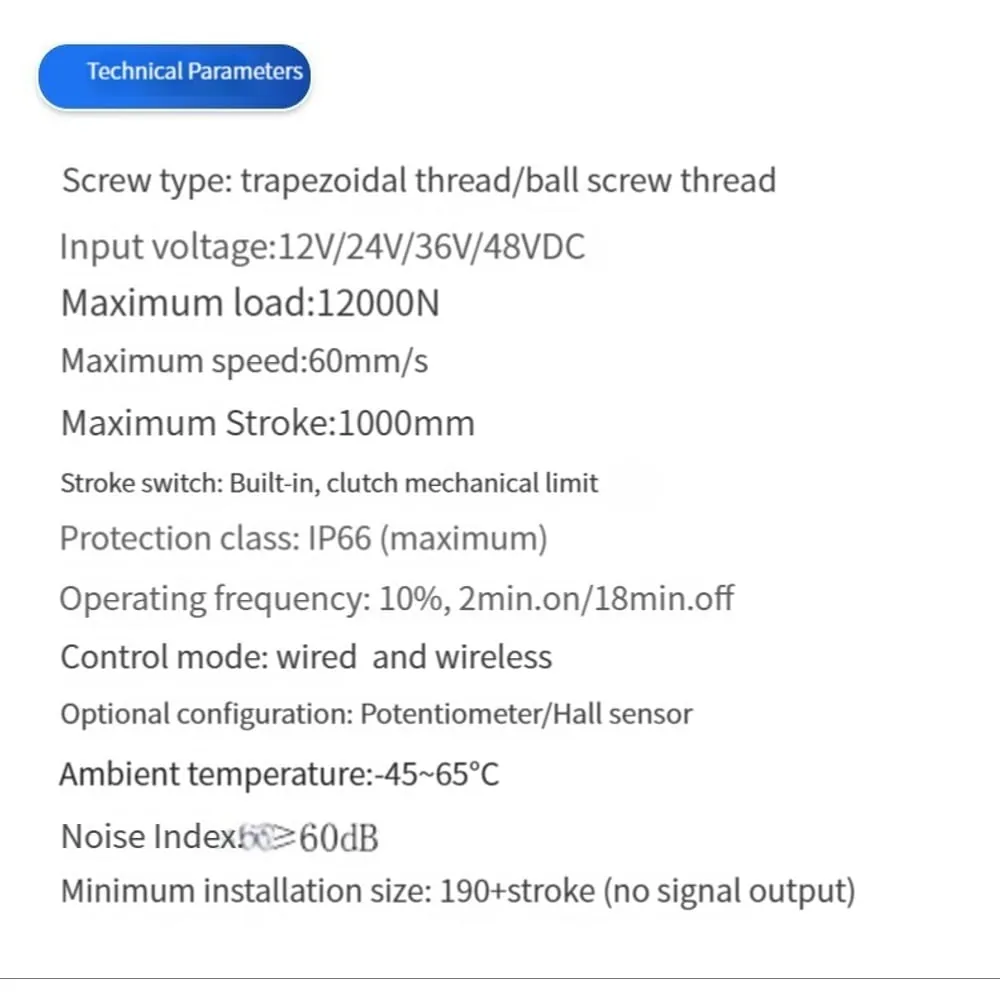

Technical specifications

Maximum load 12000 N / 1200 kg / 2700 lbs at 6 mm/s
Stroke 300 mm
Stroke options 12 inches / 300 mm standard example; customizable from 10 mm to 2000 mm
Speed 6 mm/s – 60 mm/s
Speed options 6±1 mm/s, 8±2 mm/s, 12±2 mm/s, 16±3 mm/s, 20±4 mm/s, 25±5 mm/s, 38±6 mm/s, 60±12 mm/s
Voltage DC 12 V or DC 24 V, 24 V
IP rating IP66
Duty cycle 10%, maximum 2 min continuous use

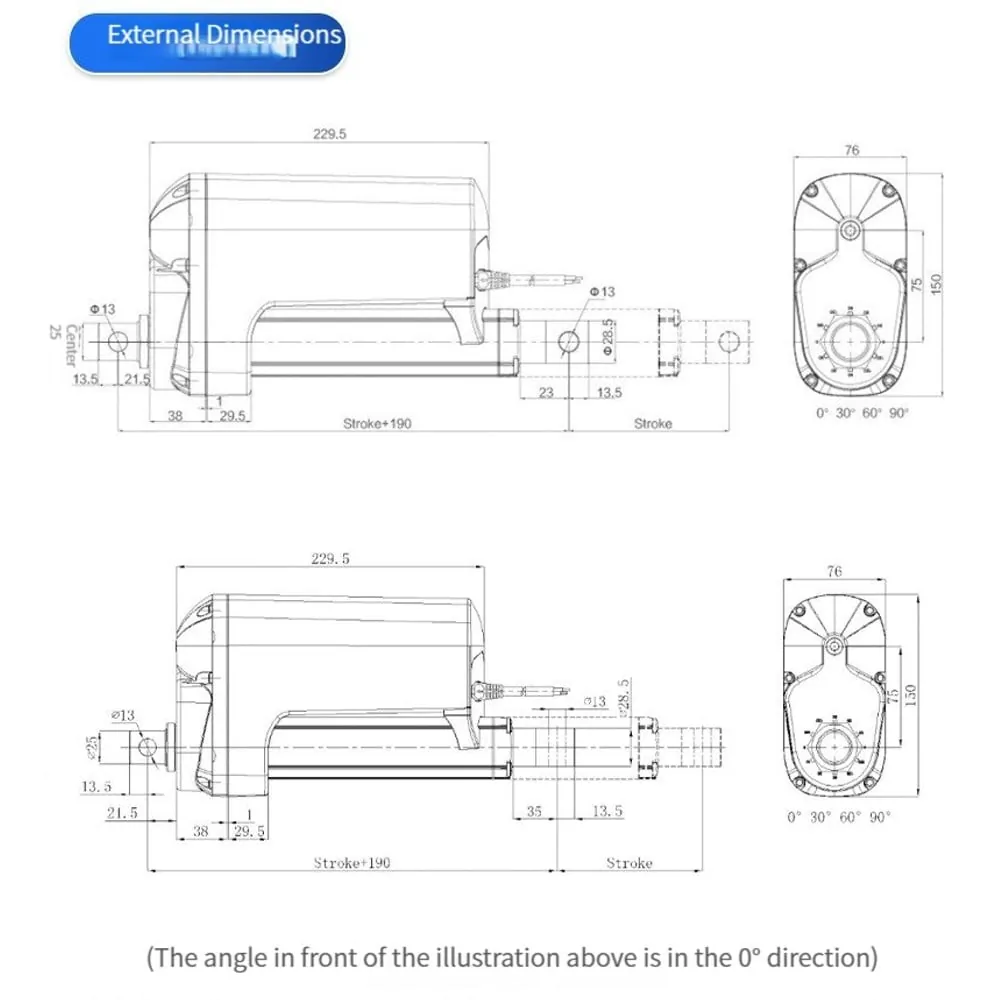

Retracted length 500 mm
Extended length 800 mm
Noise level About 65 dB to 80 dB, depending on actuator parameters
Motor type Brushed DC motor
Housing material Cast aluminum alloy
Rod material Stainless steel
Operating temperature -26℃ to 85℃
Service life Approximately 25,000 cycles
Cable length 1500±10% mm / 60 in, customizable
Certifications CE

Performance matrix

No-load speed Full-load speed Thrust Self-locking force
6 mm/s 5 mm/s 12000 N / 1200 kg / 2700 lbs 15000 N / 1500 kg / 3300 lbs
8 mm/s 6 mm/s 11000 N / 1100 kg / 2400 lbs 12000 N / 1200 kg / 2700 lbs
12 mm/s 9 mm/s 10000 N / 1000 kg / 2200 lbs 12000 N / 1200 kg / 2700 lbs
16 mm/s 10 mm/s 7000 N / 700 kg / 1500 lbs 8000 N / 800 kg / 1800 lbs
20 mm/s 11 mm/s 6500 N / 650 kg / 1400 lbs 8000 N / 800 kg / 1800 lbs
25 mm/s 14 mm/s 5000 N / 500 kg / 1100 lbs 6000 N / 600 kg / 1300 lbs
38 mm/s 24 mm/s 3200 N / 320 kg / 700 lbs 4000 N / 400 kg / 900 lbs
60 mm/s 30 mm/s 2000 N / 200 kg / 440 lbs 3000 N / 300 kg / 660 lbs

Request technical documents

FAQ

What is the SLA-12K?

The SLA-12K is an Elerover linear actuator rated IP66.

Does Elerover manufacture the SLA-12K?

Yes. Elerover is a linear actuator manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.

What are the key specifications of the SLA-12K?

Key ratings from the product specifications include voltage DC 12 V or DC 24 V, 24 V, load 12000 N, stroke 300 mm, protection IP66. See the Technical Specifications section on this page for the full table.

How do I request a quote for the SLA-12K?

Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.

Request an OEM quote

Share force, stroke, voltage and quantity. Elerover will map your RFQ to a published series or OEM configuration.
