Lifting Column

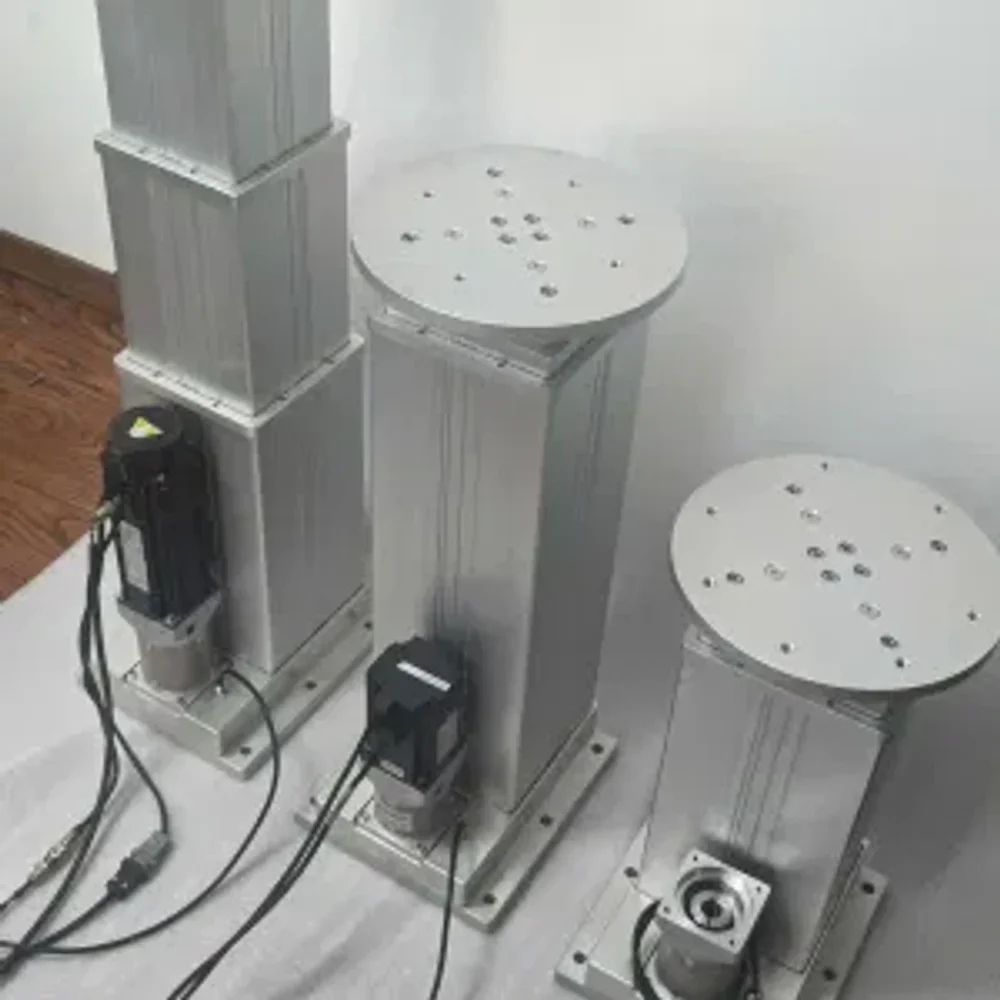

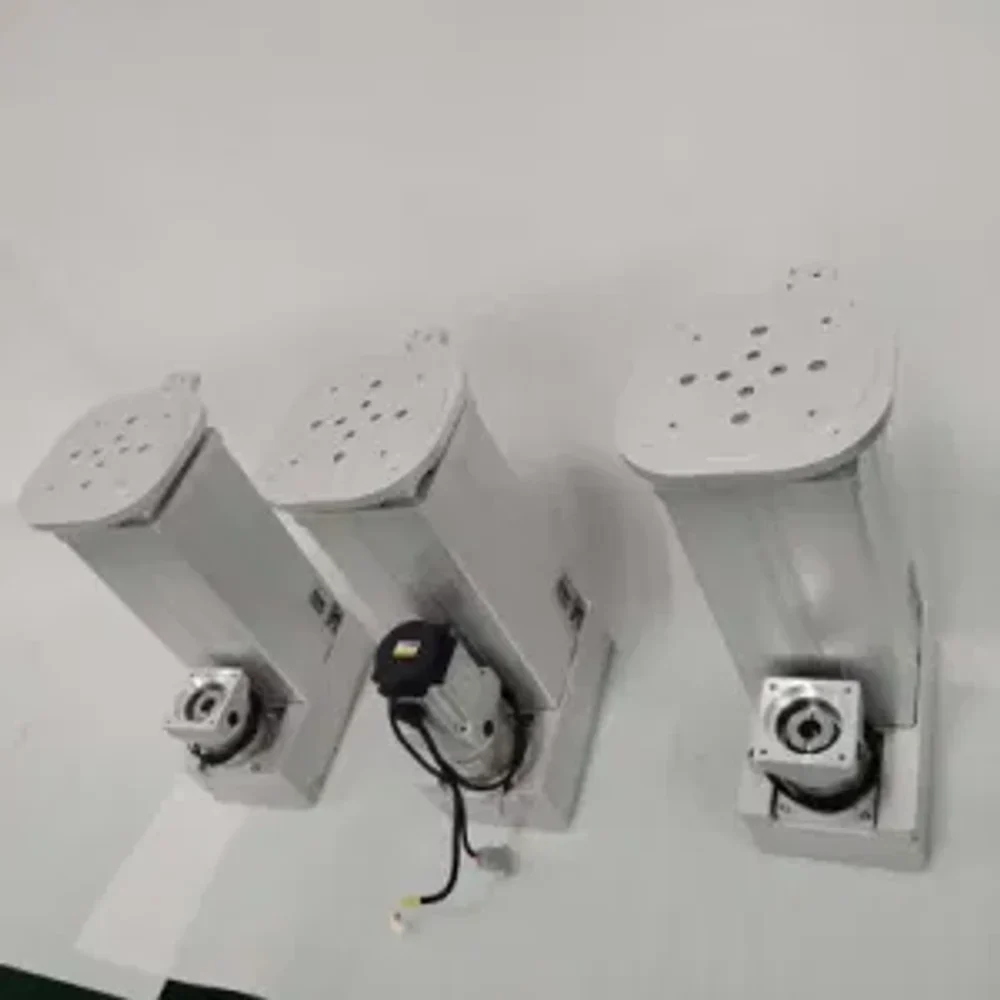

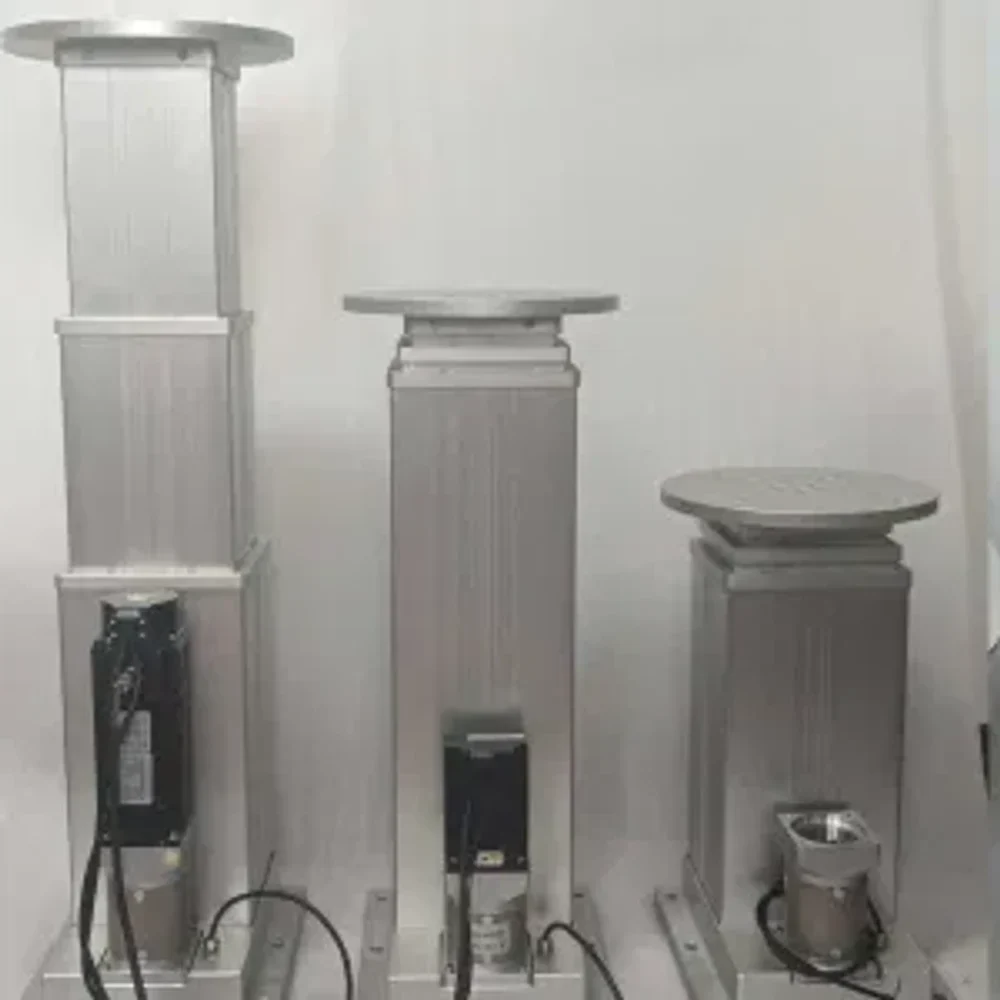

SLA-LC03-RC Servo Lifting Column
SLA-LC03-RC Servo Lifting Column from Elerover.
Key specifications
- Maximum load
- 5,000 N push / 3,000 N pull (configuration dependent)
- Retracted height
- Stroke / 2 + 350 mm
- Speed
- 100 mm/s with load of 2,000N
Product overview
SLA-LC03-RC Servo Lifting Column from Elerover. This lifting column supports stable vertical motion for desks, medical and industrial height adjustment systems.
- Maximum load
- 5,000 N push / 3,000 N pull (configuration dependent)
- Retracted height
- Stroke / 2 + 350 mm
- Speed
- 100 mm/s with load of 2,000N
- Voltage
- 48 V DC / 220 V AC
Applications

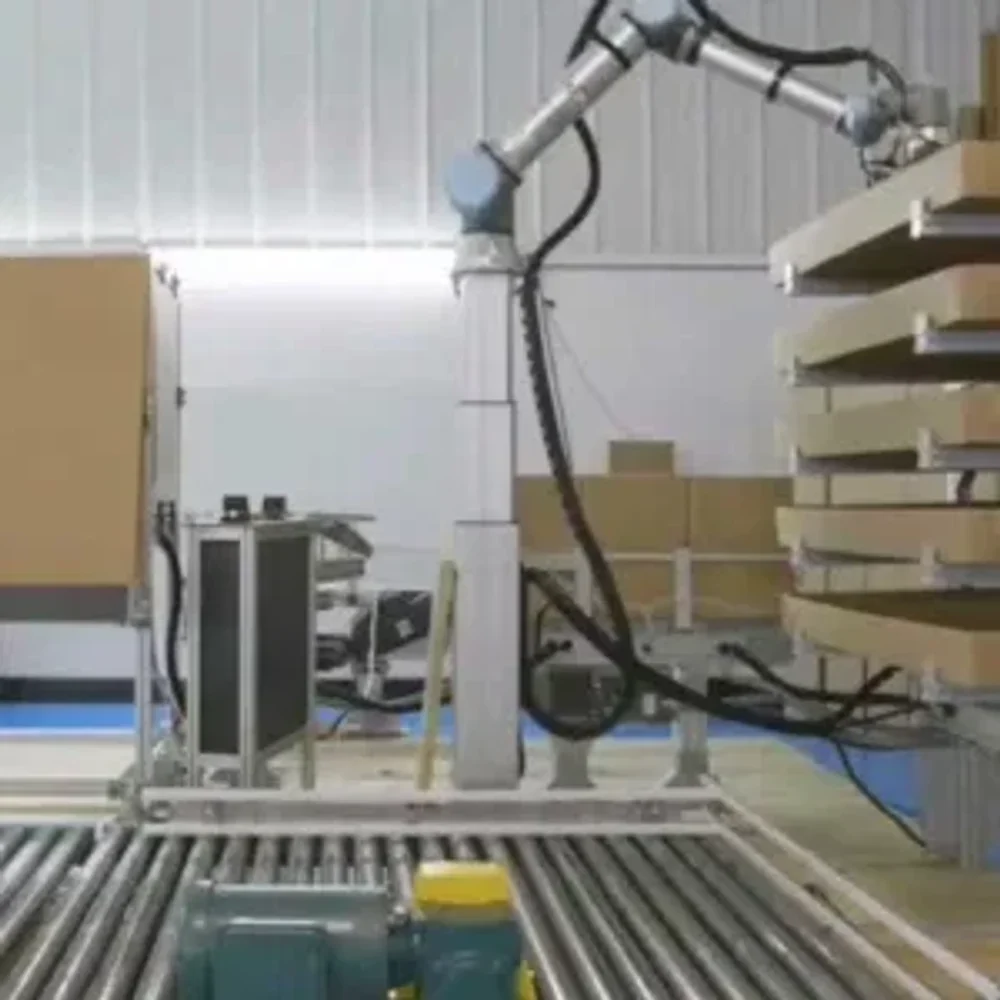

- Industrial Automation
- Lifting
Benefits
- Up to 5,000N maximum thrust force
- 100 mm/s maximum speed under 2,000N load
- 48V DC and 220V AC servo motor options
- Dynamic lateral moment up to 1,000Nm
- Static lateral moment up to 1,800Nm
- CAN bus control for automation integration
- Built-in limit signal for enhanced operational safety
Technical specifications
| Maximum load | 5,000 N push / 3,000 N pull (configuration dependent) |
|---|---|
| Retracted height | Stroke / 2 + 350 mm |
| Speed | 100 mm/s with load of 2,000N |
| Voltage | 48 V DC / 220 V AC |
| Noise level | 55~68 dB |
Request technical documents
FAQ
What is the SLA-LC03-RC?
The SLA-LC03-RC is an Elerover lifting column for industrial and OEM motion projects.
Does Elerover manufacture the SLA-LC03-RC?
Yes. Elerover is a lifting column manufacturer and supplier. Share your application requirements and quantity for a factory quote on this model.
What are the key specifications of the SLA-LC03-RC?
Key ratings from the product specifications include voltage 48 V DC / 220 V AC. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA-LC03-RC?
Send load, stroke, voltage, IP rating, duty cycle and quantity via the contact form or WhatsApp.
Request an OEM quote
Share force, stroke, voltage and quantity. Elerover will map your RFQ to a published series or OEM configuration.
