Request Datasheet
Lifting Column

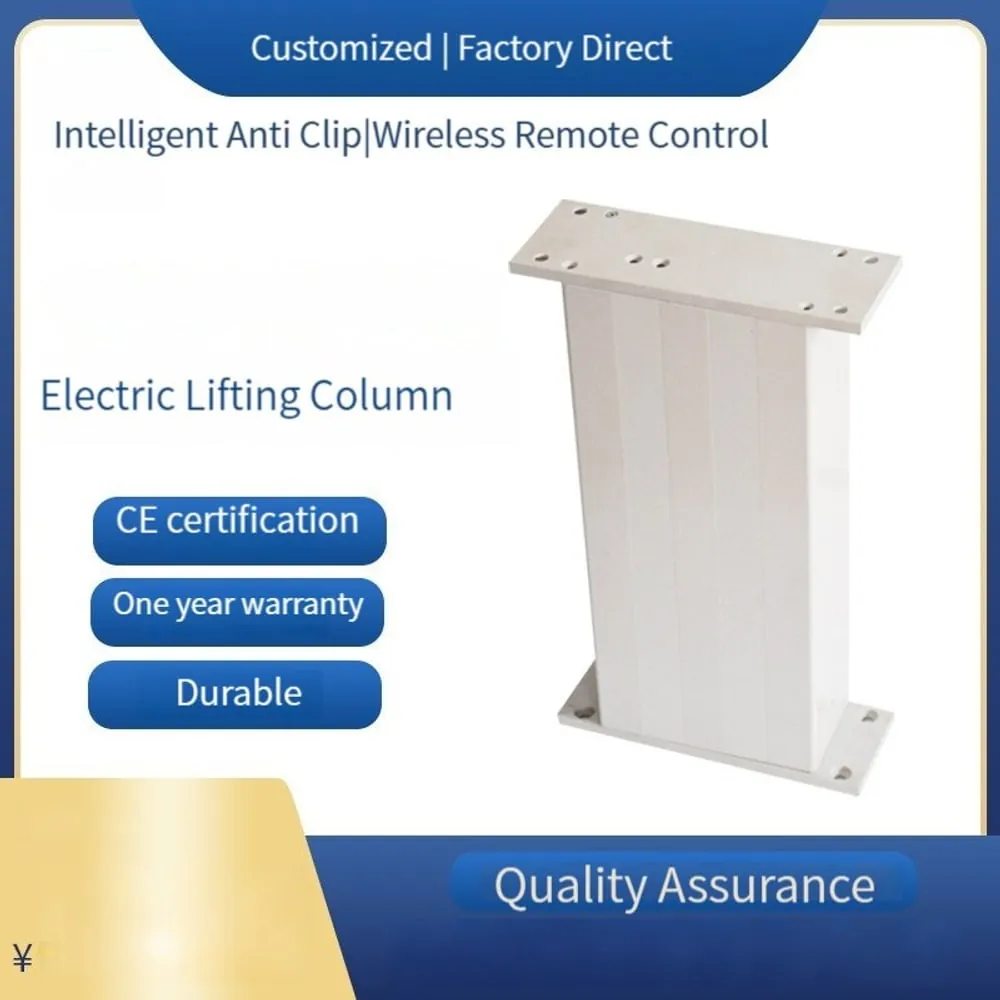

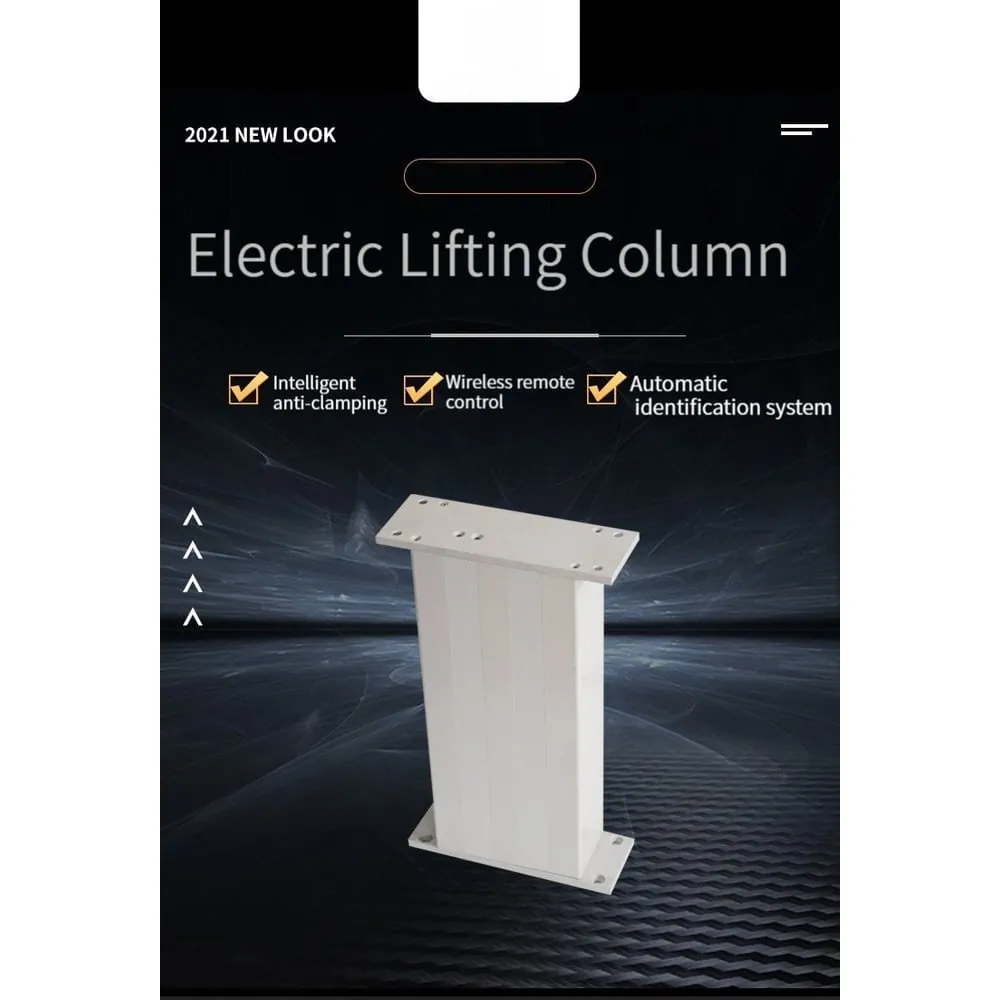

SLA-LC01 4,000 N load Lifting column
SLA-LC01 4000N load Lifting column from Elerover.
Key specifications
- Maximum load
- 4000 N
- Stroke
- Standard strokes of 50 mm, 100 mm, 150 mm, and 600 mm, with customization options av
- Speed
- 4 mm/s – 30 mm/s
Product overview
SLA-LC01 4000N load Lifting column from Elerover. This lifting column supports stable vertical motion for desks, medical and industrial height adjustment systems.
- Maximum load
- 4000 N
- Stroke
- Standard strokes of 50 mm, 100 mm, 150 mm, and 600 mm, with customization options av
- Speed
- 4 mm/s – 30 mm/s
- Voltage
- 12 V / 24 V
Applications
- Furniture
- Desk
- Lifting

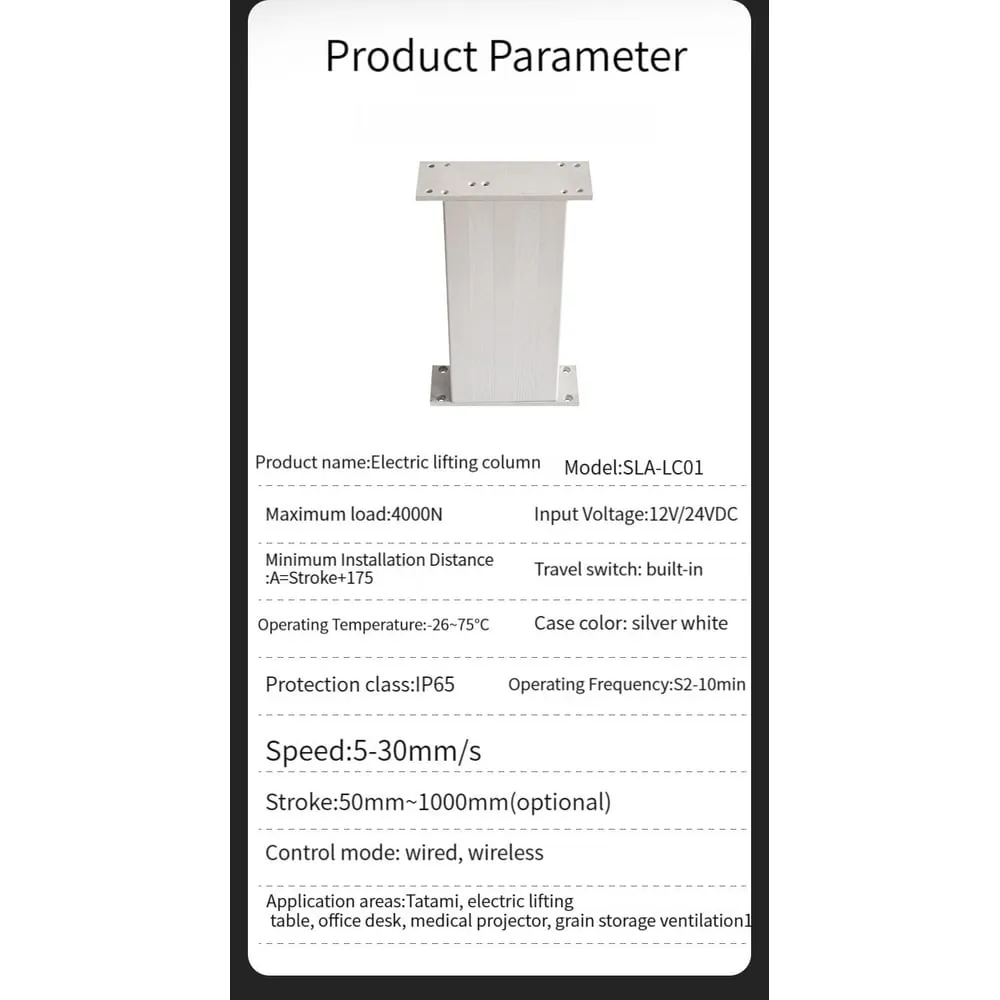

Technical specifications
| Maximum load | 4000 N |
|---|---|
| Stroke | Standard strokes of 50 mm, 100 mm, 150 mm, and 600 mm, with customization options av |
| Speed | 4 mm/s – 30 mm/s |
| Voltage | 12 V / 24 V |
| Duty cycle | 20% |
| Limit switch | Built-in |
| IP rating | IP54 |
| Operating temperature | -26℃~65℃ |
| Certifications | CE,ROHS |
Performance matrix
| Speed | Thrust |
|---|---|
| 4 mm/s | 4000 N |
| 12 mm/s | 2000 N |
| 21 mm/s | 1000 N |
| 26 mm/s | 800 N |
| 29 mm/s | 600 N |
| 30 mm/s | 500 N |
Request technical documents
FAQ
What is the SLA-LC01?
The SLA-LC01 is an Elerover lifting column rated IP54.
Does Elerover manufacture the SLA-LC01?
Yes. Elerover is a lifting column manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SLA-LC01?
Key ratings from the product specifications include voltage 12 V / 24 V, load 4000 N, stroke Standard strokes of 50 mm, 100 mm, 150 mm, and 600 mm, with customization options av, protection IP54. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA-LC01?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
Manufacturer trust
Verified manufacturer identity for B2B sourcing — certificates and OEM capability without unverified capacity claims.
Request an OEM quote
Share force, stroke, voltage and quantity. Elerover will map your RFQ to a published series or OEM configuration.
