Linear Actuator

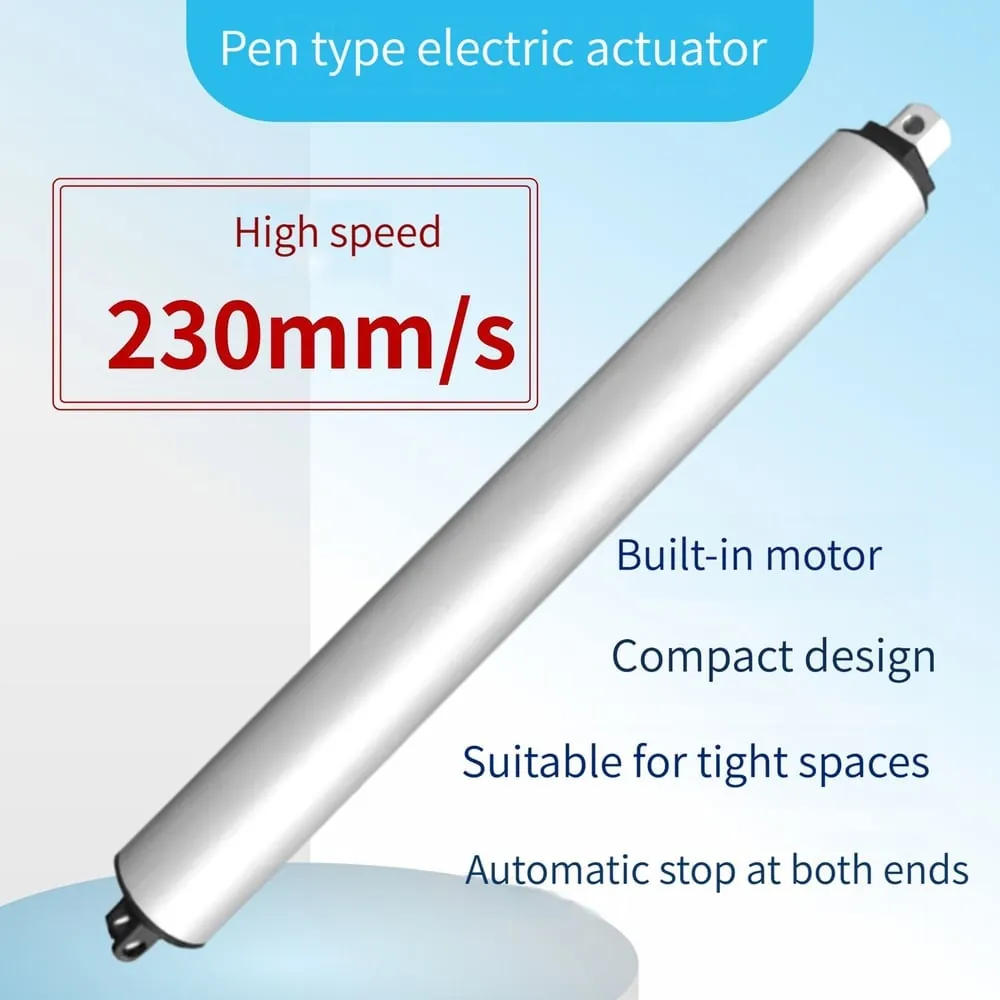

SLA04 200 N linear actuator
SLA04 200N linear actuator from Elerover.
Key specifications
- Maximum load
- 200 N

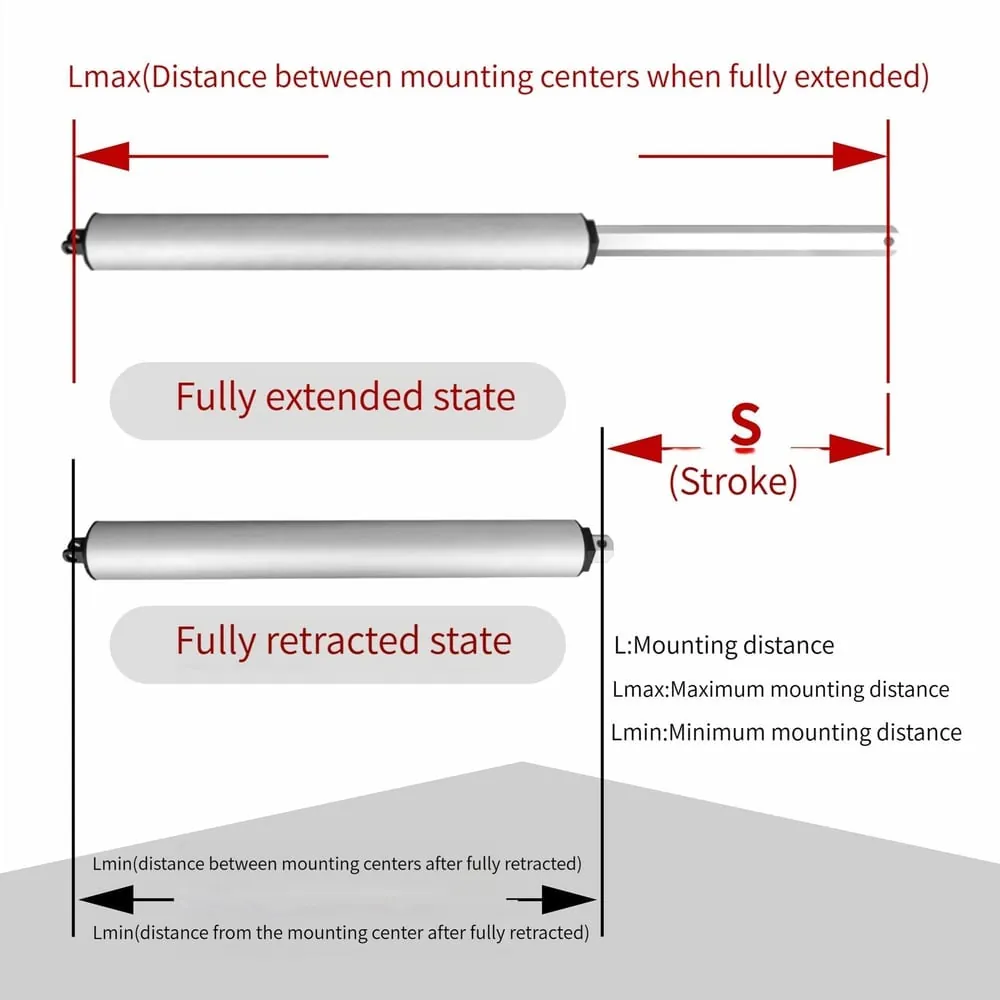

- Stroke
- 50 mm-800 mm stroke customized
- Speed
- 230 mm/s
- Voltage
- 12 / 24 / 36 / 48 V DC
Product overview
SLA04 200N linear actuator from Elerover. This DC linear actuator is built for OEM equipment that needs repeatable push/pull motion under industrial duty.
- Maximum load
- 200 N
- Stroke
- 50 mm-800 mm stroke customized
- Speed
- 230 mm/s
- Voltage
- 12 / 24 / 36 / 48 V DC
- IP rating
- IP54
- Feedback
- Hall sensor
Applications
- strong thrust : provides up to 200n / 20 kgs / 40 lbs of force.

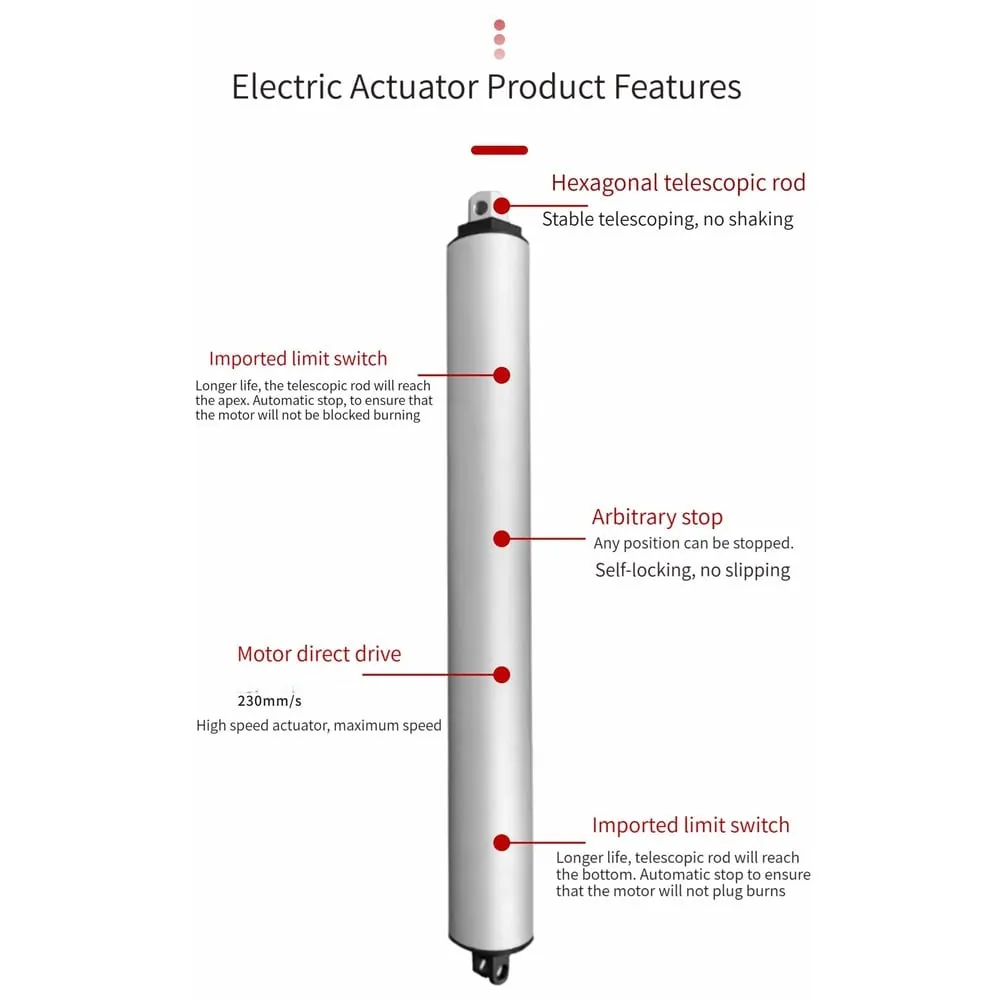

Benefits
- High-Quality Products and Services : We offer top-tier actuators along with exceptional customer support.
- Durable Metal Housing : Engineered to operate in extremely harsh environments.
- Wear-Resistant Gear : High-strength design for long-lasting performance.
- Corrosion-Resistant Construction : Made with aluminum alloy telescopic and outer tubes.
- Strong Thrust : Provides up to 200N / 20 Kgs / 40 lbs of force.
- Customizable Speed Options : Speed ranges from 45 mm/second to 230 mm/second.
- Customizable Stroke Options : Stroke lengths from 50 mm to 600 mm, with custom lengths available.
- Waterproof and Dustproof : Advanced technology ensures reliable operation.

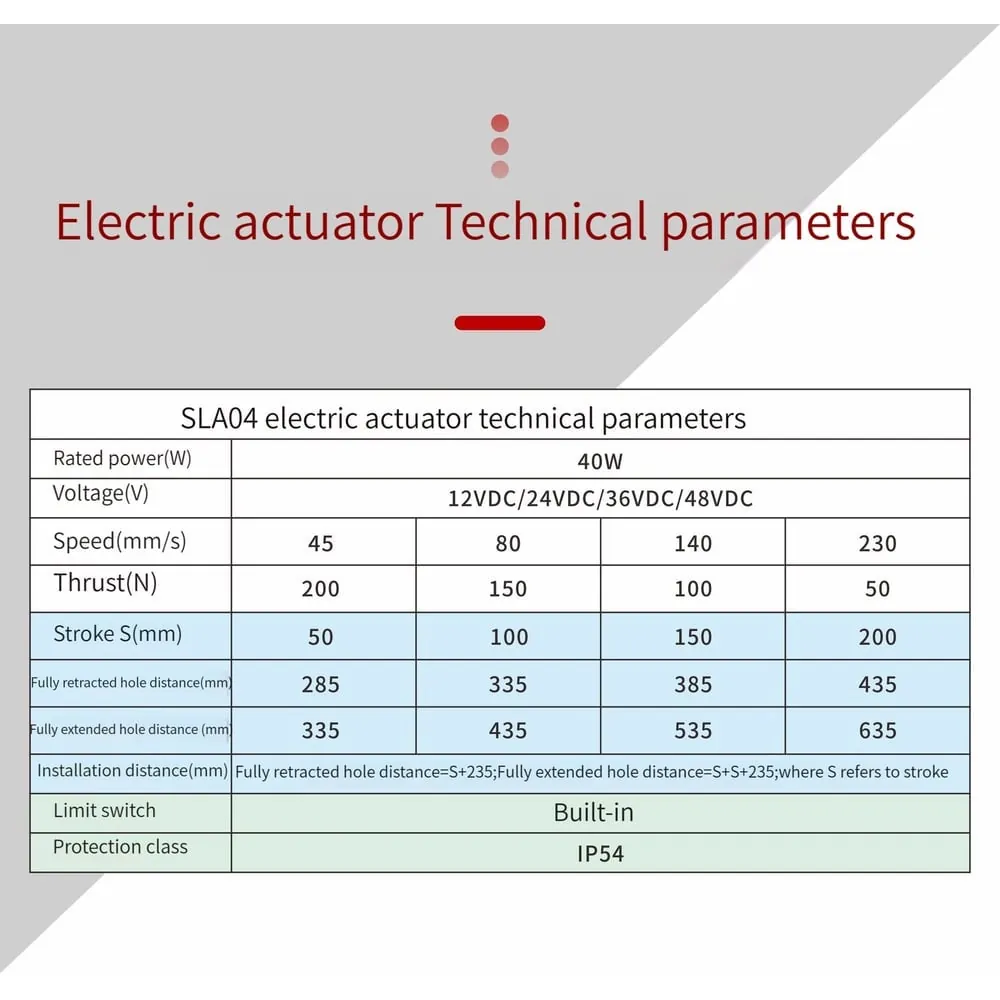

Technical specifications
| Maximum load | 200 N |
|---|---|
| Stroke | 50 mm-800 mm stroke customized |
| Speed | 230 mm/s |
| Voltage | 12 / 24 / 36 / 48 V DC |
| IP rating | IP54 |
| Duty cycle | 20%, Max 2 mins continuous use Plug Stan |
| Feedback | Hall sensor |
| Limit switch | Built-in |
Request technical documents
FAQ
What is the SLA04?
The SLA04 is an Elerover linear actuator rated IP54.
Does Elerover manufacture the SLA04?
Yes. Elerover is a linear actuator manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SLA04?
Key ratings from the product specifications include voltage 12 / 24 / 36 / 48 V DC, load 200 N, stroke 50 mm-800 mm stroke customized, protection IP54. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA04?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
Request an OEM quote
Share force, stroke, voltage and quantity. Elerover will map your RFQ to a published series or OEM configuration.
Quote context
