SLA024 linear actuator, main product view

1 / 5

Linear Actuator

Model SLA024

SLA024 5,000 N AC/DC linear actuator for Farm Ventilation

SLA024 5000N AC/DC linear actuator for Farm Ventilation from Elerover.

Key specifications

Maximum load
5000 N
Stroke
50 / 100 / 150 / 200 / 250 / 300 / 350 / 400 / 450 mm (Optional, 50-1200 mm can be customized)
Speed
No-load 4.5 mm/s; full-load 4 mm/s
Voltage
24 V DC, 36 V DC, 48 V DC, 120 V AC, 230 V AC
Request OEM Quote WhatsApp

WhatsApp View in Selector Compare Email

Product overview

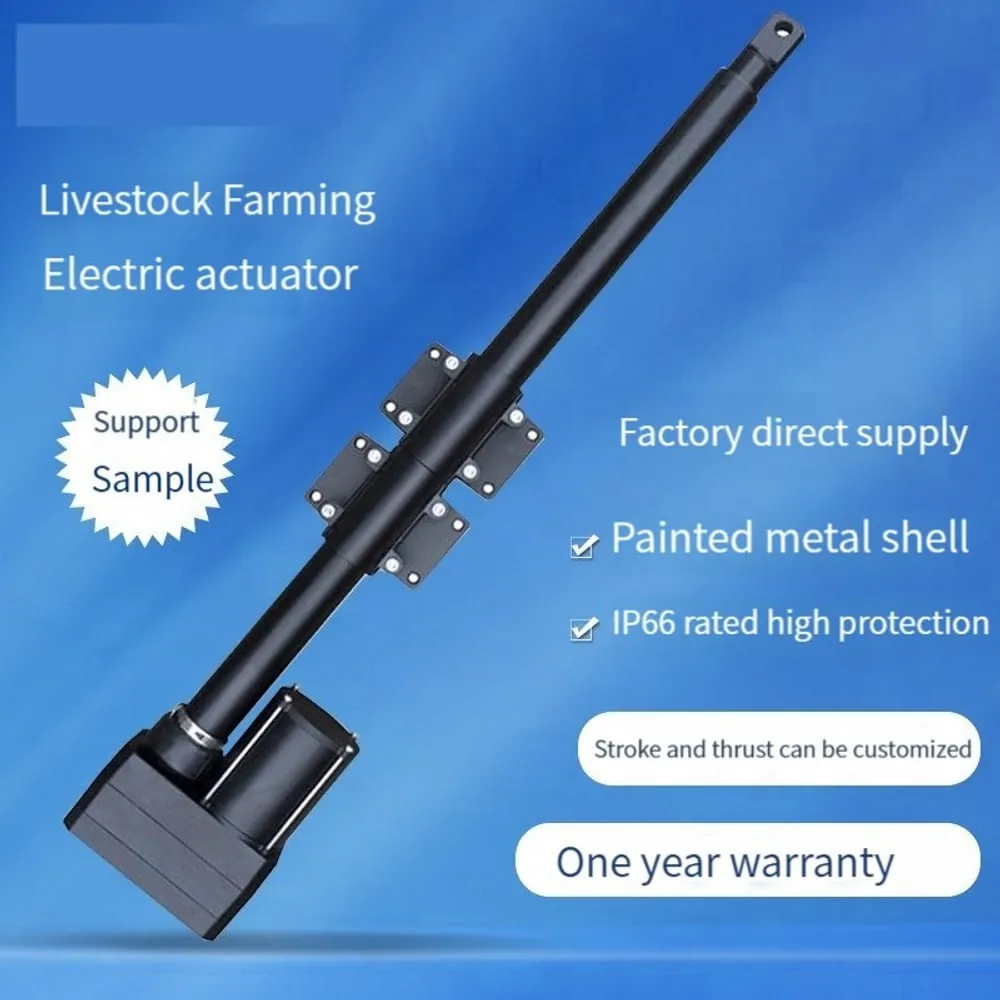

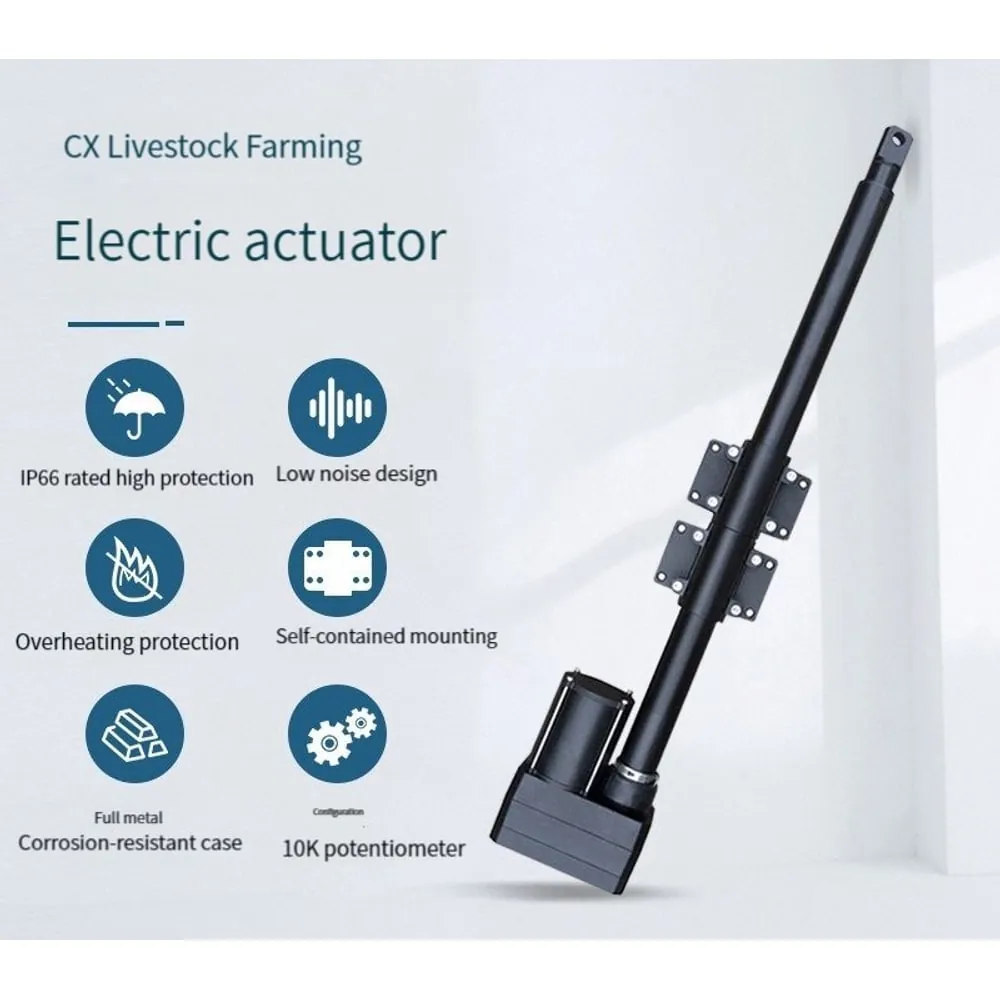

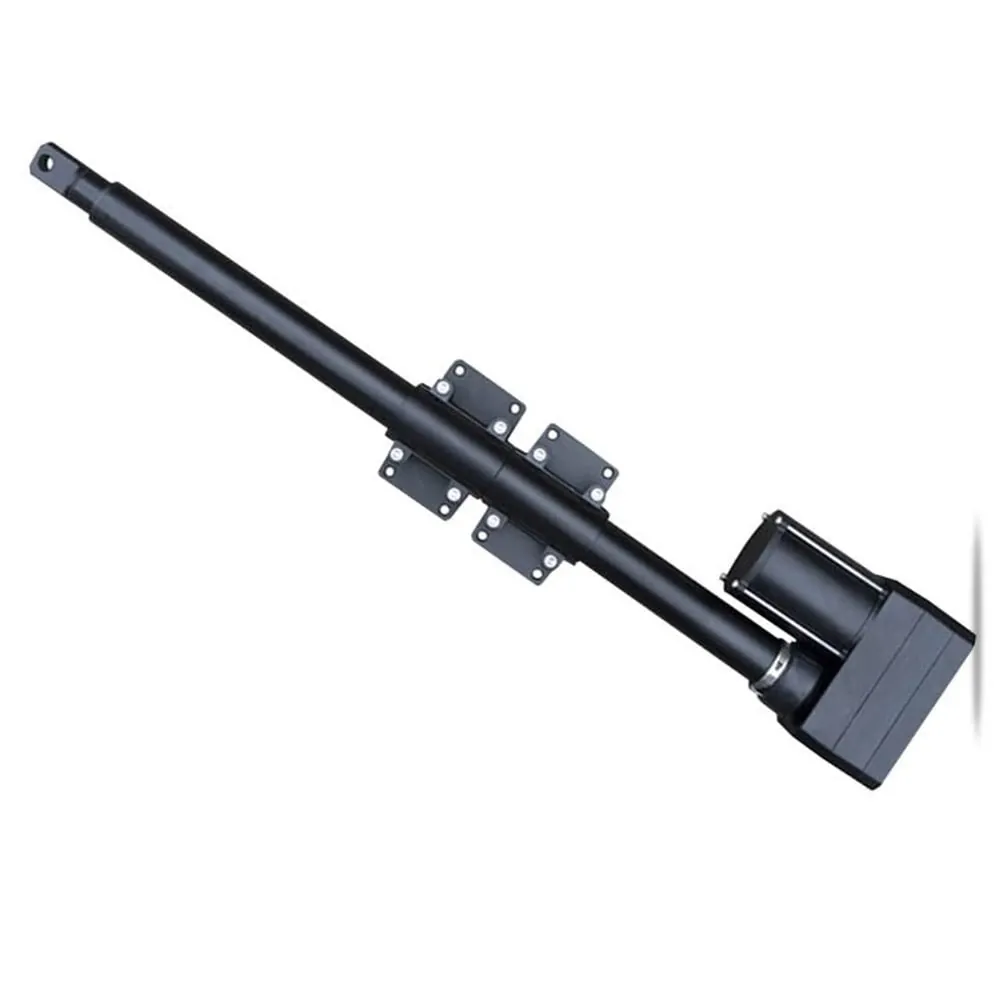

SLA024 5000N AC/DC linear actuator for Farm Ventilation from Elerover. This DC linear actuator is built for OEM equipment that needs repeatable push/pull motion under industrial duty.

Maximum load
5000 N
Stroke
50 / 100 / 150 / 200 / 250 / 300 / 350 / 400 / 450 mm (Optional, 50-1200 mm can be customized)
Speed
No-load 4.5 mm/s; full-load 4 mm/s
Voltage
24 V DC, 36 V DC, 48 V DC, 120 V AC, 230 V AC
IP rating
IP65
Feedback
1K

Benefits

  • Versatile Power Supply Compatibility : The SLA024 supports a range of power supplies, including 24V DC , 48V DC , 120V AC , and 230V AC , making it adaptable to various setups.
  • Optimized Speed : It offers a no-load speed of 4.5mm/s and a full-load speed of 4mm/s , providing efficient and consistent movement.
  • Superior Protection : Designed with IP65 waterproof protection , the SLA024 is capable of operating in harsh environments, ensuring durability and longevity.
  • Farm Ventilation Systems : Enhances air circulation and maintains optimal climate conditions for livestock.
  • Breeding Industry : Provides precise control for automated systems, improving the efficiency of breeding operations.
  • High Load Capacity : Supports heavy loads up to 5000N, suitable for demanding agricultural applications.
  • Reliable Performance : Consistent speed and robust design ensure smooth and reliable operation.
  • Durability : Waterproof and built to withstand harsh environmental conditions, extending the lifespan of your equipment.

Technical specifications

Maximum load 5000 N
Stroke 50 / 100 / 150 / 200 / 250 / 300 / 350 / 400 / 450 mm (Optional, 50-1200 mm can be customized)
Speed No-load 4.5 mm/s; full-load 4 mm/s
Voltage 24 V DC, 36 V DC, 48 V DC, 120 V AC, 230 V AC
IP rating IP65
Duty cycle 10%
Feedback 1K
Noise level <60 dB
Operating temperature -40℃ ~ +65℃

Applications

No product-specific application list is published.

Request technical documents

FAQ

What is the SLA024?

The SLA024 is an Elerover linear actuator rated IP65.

Does Elerover manufacture the SLA024?

Yes. Elerover is a linear actuator manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.

What are the key specifications of the SLA024?

Key ratings from the product specifications include voltage 24 V DC, 36 V DC, 48 V DC, 120 V AC, 230 V AC, load 5000 N, stroke 50 / 100 / 150 / 200 / 250 / 300 / 350 / 400 / 450 mm (Optional, 50-1200 mm can be customized), protection IP65. See the Technical Specifications section on this page for the full table.

How do I request a quote for the SLA024?

Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.

Request an OEM quote

Share force, stroke, voltage and quantity. Elerover will map your RFQ to a published series or OEM configuration.
