Linear Actuator

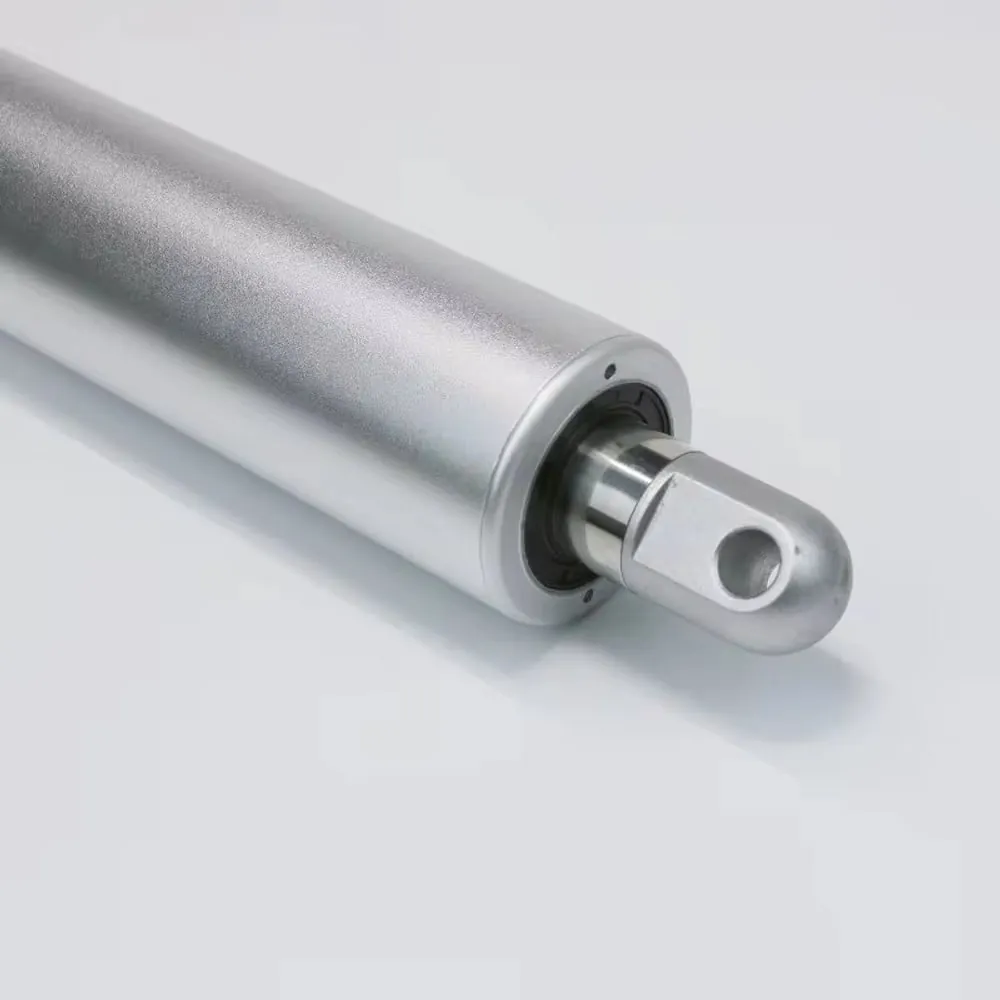

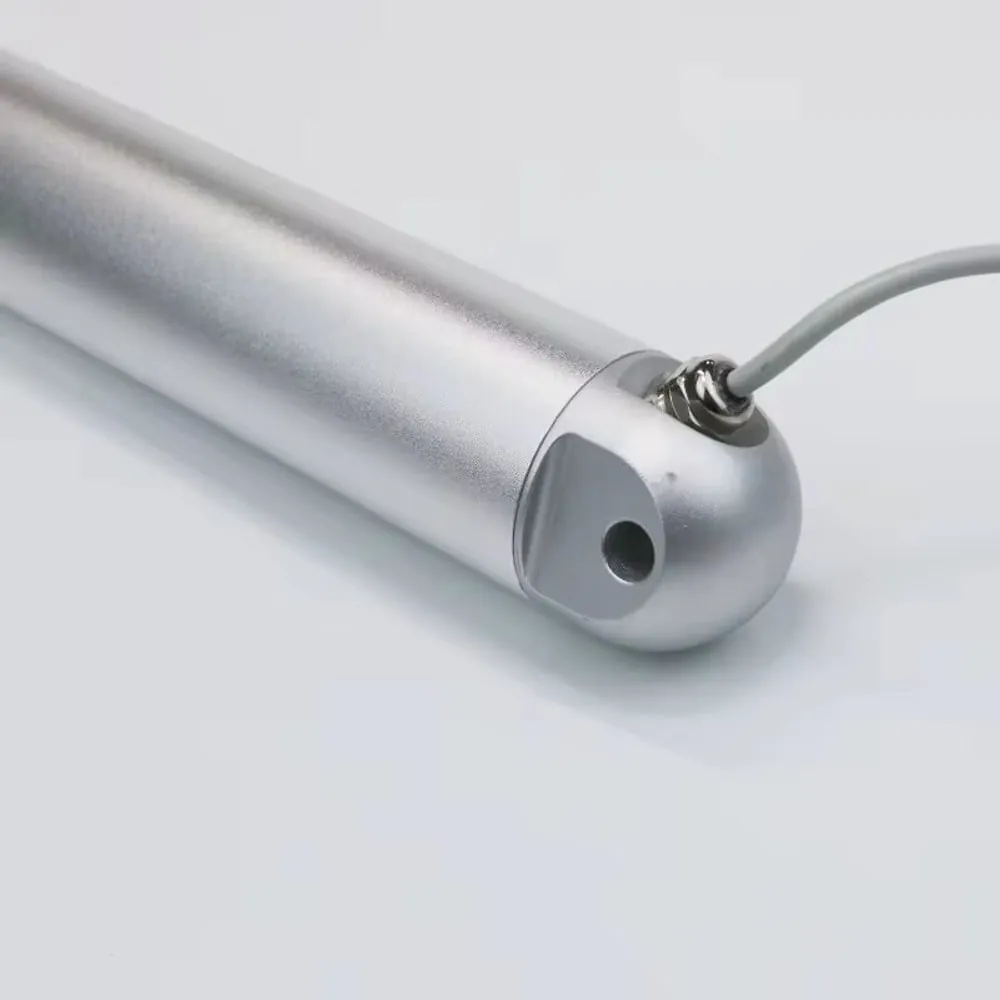

SLA-T50 5,000 N tubular linear actuator
SLA-T50 5000N tubular linear actuator from Elerover.
Key specifications
- Maximum load
- 1500 N
- Stroke
- 30-1000 mm
- Speed
- 7.69 mm/s
- Voltage
- 12 V / 24 V
Product overview
SLA-T50 5000N tubular linear actuator from Elerover. This DC linear actuator is built for OEM equipment that needs repeatable push/pull motion under industrial duty.
- Maximum load
- 1500 N
- Stroke
- 30-1000 mm
- Speed
- 7.69 mm/s
- Voltage
- 12 V / 24 V
- IP rating
- IP66
- Feedback
- Option
Applications
- Furniture
- Solar Tracking
- Desk
Technical specifications
| Maximum load | 1500 N |
|---|---|
| Stroke | 30-1000 mm |
| Speed | 7.69 mm/s |
| Voltage | 12 V / 24 V |
| IP rating | IP66 |
| Duty cycle | 10% |
| Feedback | Option |
| Limit switch | Built-in, non-adjustable |
| Current | 3.0 / 2.0 A |
| Noise level | 51 dB |
| Housing material | Aluminum alloy |
| Rod material | Stainless steel |
| Operating temperature | -20°C/65°C |
Performance matrix
| Speed | Thrust |
|---|---|
| 2.4 mm/s | 5000 N |
| 4.2 mm/s | 3000 N |
| 7.69 mm/s | 1500 N |
Configuration options
| Parameter | 50mm | 50mm | 50mm |
|---|---|---|---|
| Rated Force | 1500N | 3000N | 5000N |
| Speed No-load | 7.69mm/s | 4.2mm/s | 2.4mm/s |
| Input Voltage | 12V/24V | 12/24v | 12/24v |
| No-load Current | 1.0/0.6A | 1.0/0.6A | 1.0/0.6A |
| Rated Current | 3.0/2.0A | 3.5/2.5A | 3.5/2.5A |
| Stroke | 30-1000mm | 30-1000mm | 30-1000mm |
| Feedback | Option | Option | Option |
| Duty Cycle | 10% | 10% | 10% |
| IP Rating | IP66 | IP66 | IP66 |
| Operational Temperature | -20°C/65°C | -20°C/65°C | -20°C/65°C |
| Operating Noise | 51dB | 51dB | 51dB |
| Limit Switch | Built-in, non-adjustable | Built-in, non-adjustable | Built-in, non-adjustable |
| Housing Material | Aluminum alloy | Aluminum alloy | Aluminum alloy |
| Stroke Rod Material | Stainless steel | Stainless steel | Stainless stee |
Request technical documents
FAQ
What is the SLA-T50?
The SLA-T50 is an Elerover linear actuator rated IP66.
Does Elerover manufacture the SLA-T50?
Yes. Elerover is a linear actuator manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SLA-T50?
Key ratings from the product specifications include voltage 12 V / 24 V, load 5000 N, stroke 30-1000 mm, protection IP66. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA-T50?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
Request an OEM quote
Share force, stroke, voltage and quantity. Elerover will map your RFQ to a published series or OEM configuration.
