SLA-T01-M linear actuator

Compact SLA-T01-M micro electric linear actuators with multiple stroke lengths for robotics, furniture, medical equipment and OEM motion systems.

Request OEM Quote

Product overview

Compact SLA-T01-M micro electric linear actuators with multiple stroke lengths for robotics, furniture, medical equipment and OEM motion systems.

Model Key ratings Quote
SLA-T01-M 10mm stroke linear actuator maxLoad: 188 N / 19 kg / 42 lbs at 5mm/s · stroke: 10 mm · speed: 5 mm/s – 150 mm/s · speedOptions: 5–150mm/s (optional) Quote this configuration

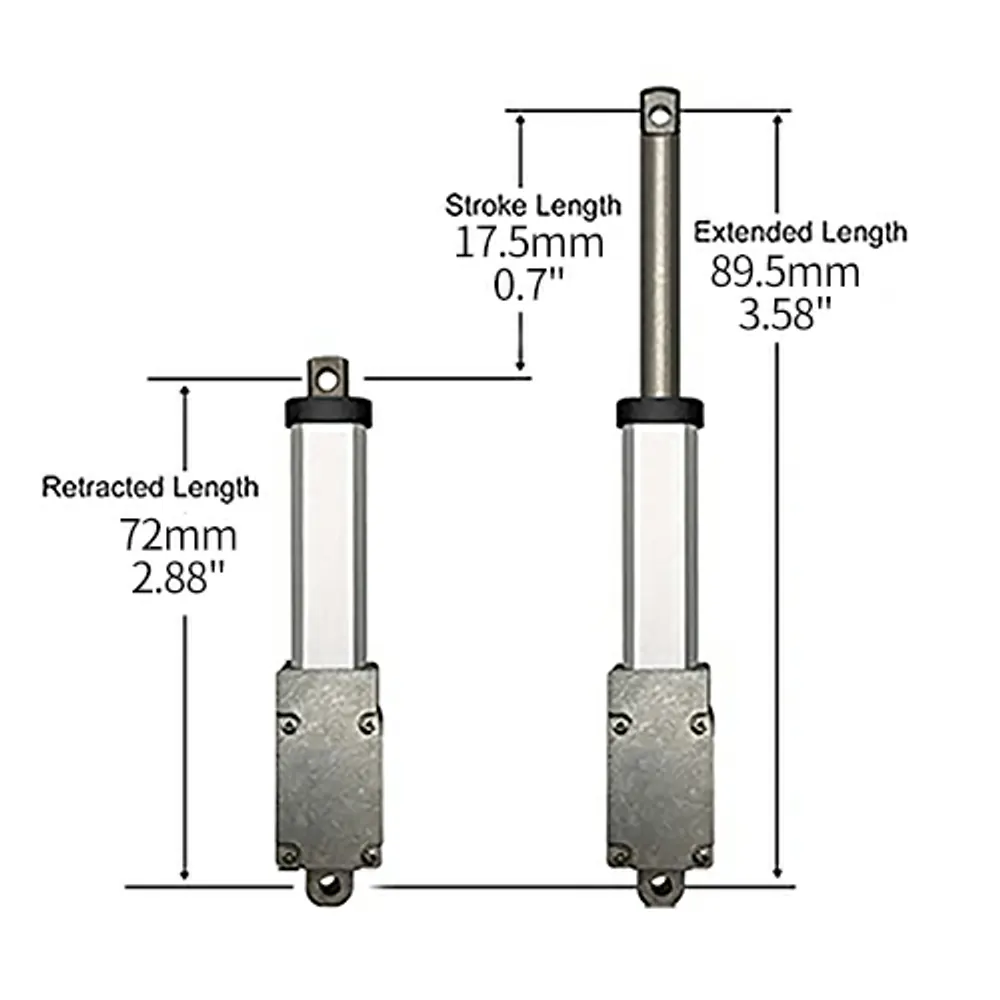

SLA-T01-M 17.5mm stroke linear actuator maxLoad: 188 N / 19 kg / 42 lbs at 5mm/s · stroke: 17.5 mm · speed: 5 mm/s – 150 mm/s · speedOptions: 5–150mm/s (optional) Quote this configuration
SLA-T01-M 21mm stroke linear actuator maxLoad: 188 N / 19 kg / 42 lbs at 5mm/s · stroke: 21 mm · speed: 5 mm/s – 150 mm/s · speedOptions: 5–150mm/s (optional) Quote this configuration

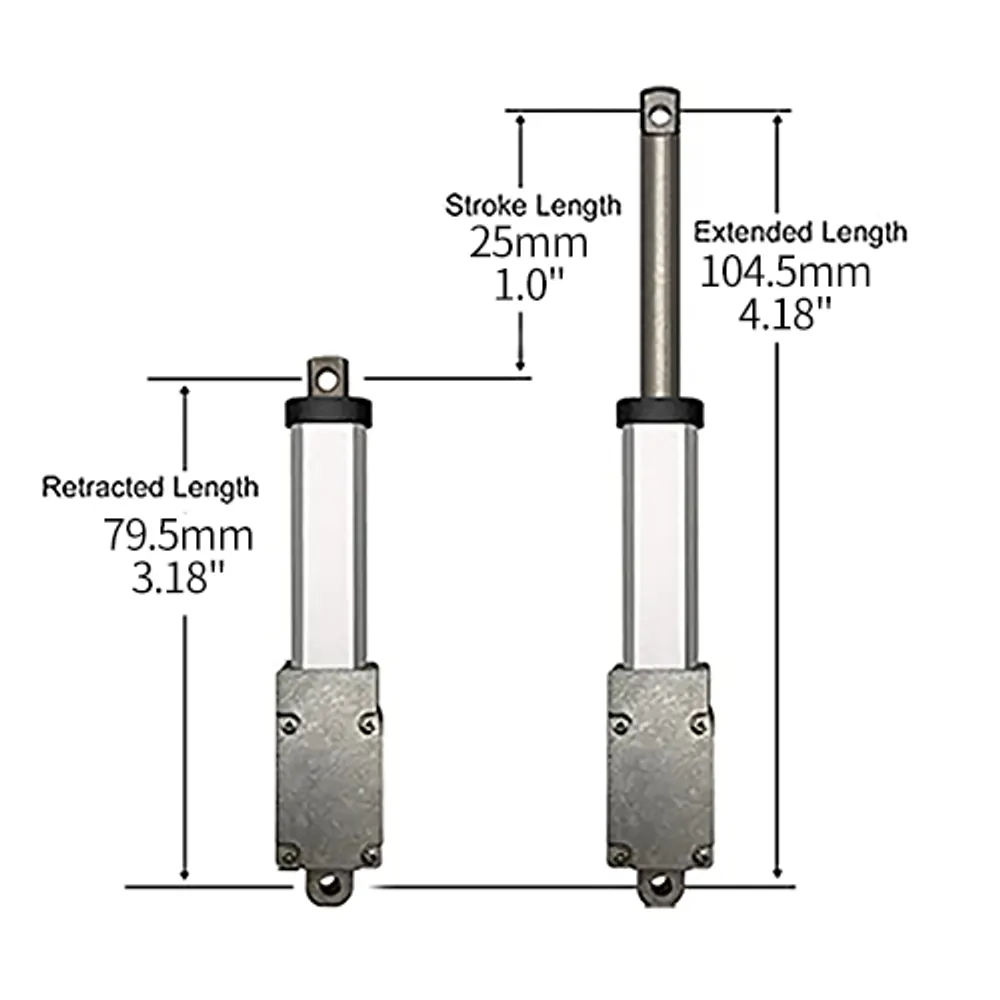

SLA-T01-M 25mm stroke linear actuator maxLoad: 188 N / 19 kg / 42 lbs at 5mm/s · stroke: 25 mm · speed: 5 mm/s – 150 mm/s · speedOptions: 5–150mm/s (optional) Quote this configuration
SLA-T01-M 30mm stroke linear actuator maxLoad: 188 N / 19 kg / 42 lbs at 5mm/s · stroke: 30 mm · speed: 5 mm/s – 150 mm/s · speedOptions: 5–150mm/s (optional) Quote this configuration
SLA-T01-M 50mm stroke linear actuator maxLoad: 188 N / 19 kg / 42 lbs at 5mm/s · stroke: 50 mm · speed: 5 mm/s – 150 mm/s · speedOptions: 5–150mm/s (optional) Quote this configuration
SLA-T01-M 75mm stroke linear actuator maxLoad: 188 N / 19 kg / 42 lbs at 5mm/s · stroke: 75 mm · speed: 5 mm/s – 150 mm/s · speedOptions: 5–150mm/s (optional) Quote this configuration
SLA-T01-M 100mm stroke linear actuator maxLoad: 188 N / 19 kg / 42 lbs at 5mm/s · stroke: 100 mm · speed: 5 mm/s – 150 mm/s · speedOptions: 5–150mm/s (optional) Quote this configuration
