Linear Actuator

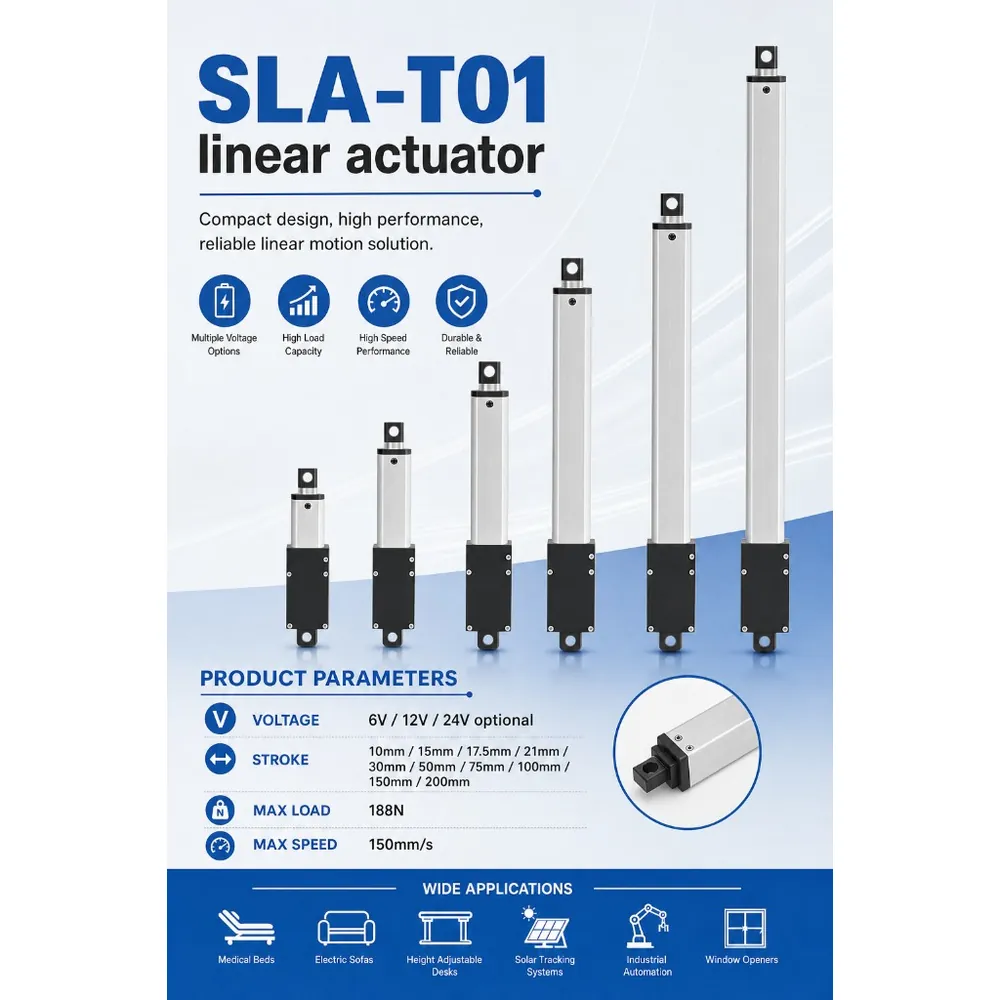

SLA-T01 linear actuator for Robot
SLA-T01 linear actuator for Robot from Elerover.
Key specifications
- Maximum load
- 188 N / 19 kg / 42 lbs (at 5 mm/s)
- Stroke
- 10–150 mm (model dependent)
- Speed
- 5 mm/s – 150 mm/s
- Voltage
- 6 V / 12 V / 24 V DC
Product overview
SLA-T01 linear actuator for Robot from Elerover. This DC linear actuator is built for OEM equipment that needs repeatable push/pull motion under industrial duty.
- Maximum load
- 188 N / 19 kg / 42 lbs (at 5 mm/s)
- Stroke
- 10–150 mm (model dependent)
- Speed
- 5 mm/s – 150 mm/s
- Voltage
- 6 V / 12 V / 24 V DC
- IP rating
- IP54
- Duty cycle
- 10%
Applications
- small doors and windows
- furniture
- medical and healthcare equipment
- agricultural machinery
- vehicles and ships
- drones and aircraft models
Benefits
- High-Quality Products and Services : We provide top-notch actuators along with exceptional customer support.
- Durable Polyamide Housing : Capable of operating in harsh environments.
- Metal Gearbox : Features high-strength, wear-resistant gears for longevity.
- Corrosion-Resistant Construction : Made with aluminum alloy telescopic and outer tubes.
- Strong Thrust : Delivers up to 188N / 19 Kgs / 42 lbs.
- Multiple Speed Options : Ranges from 5 mm/second to 150 mm/second.
- Versatile Stroke Options : Offers strokes from 10 mm to 150 mm.
- Advanced Waterproof and Dustproof Technology : Ensures reliable performance.
Technical specifications
| Maximum load | 188 N / 19 kg / 42 lbs (at 5 mm/s) |
|---|---|
| Stroke | 10–150 mm (model dependent) |
| Stroke options | 10–150 mm (model dependent) |
| Speed | 5 mm/s – 150 mm/s |
| Voltage | 6 V / 12 V / 24 V DC |
| IP rating | IP54 |
| Duty cycle | 10% |
Performance matrix
| Speed | Thrust |
|---|---|
| 5 mm/s | 188 N |
| 7 mm/s | 128 N |
| 9.5 mm/s | 96 N |
| 15 mm/s | 64 N |
| 30 mm/s | 32 N |
| 50 mm/s | 19 N |
| 150 mm/s | 6 N |
Configuration options
| Parameter | Voltage | Speed | Load |
|---|---|---|---|
| 6V/12V/24VDC | 5mm/s | 188N / 19 kg / 42 lbs | |
| 7mm/s | 128N / 13 kg / 29 lbs | — | |
| 9.5mm/s | 96N / 9.8 kg / 21 lbs | — | |
| 15mm/s | 64N / 6.5 kg / 14 lbs | — | |
| 30mm/s | 32N / 3.2 kg / 7 lbs | — | |
| 50mm/s | 19N / 1.9 kg / 4 lbs | — | |
| 150mm/s | 6N / 0.6 kg / 1.3 lbs | — |
Request technical documents
FAQ
What is the SLA-T01?
The SLA-T01 is an Elerover linear actuator rated IP54.
Does Elerover manufacture the SLA-T01?
Yes. Elerover is a linear actuator manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SLA-T01?
Key ratings from the product specifications include voltage 6 V / 12 V / 24 V DC, stroke 10–150 mm (model dependent), protection IP54. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA-T01?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
Manufacturer trust
Verified manufacturer identity for B2B sourcing — certificates and OEM capability without unverified capacity claims.
Request an OEM quote
Share force, stroke, voltage and quantity. Elerover will map your RFQ to a published series or OEM configuration.
