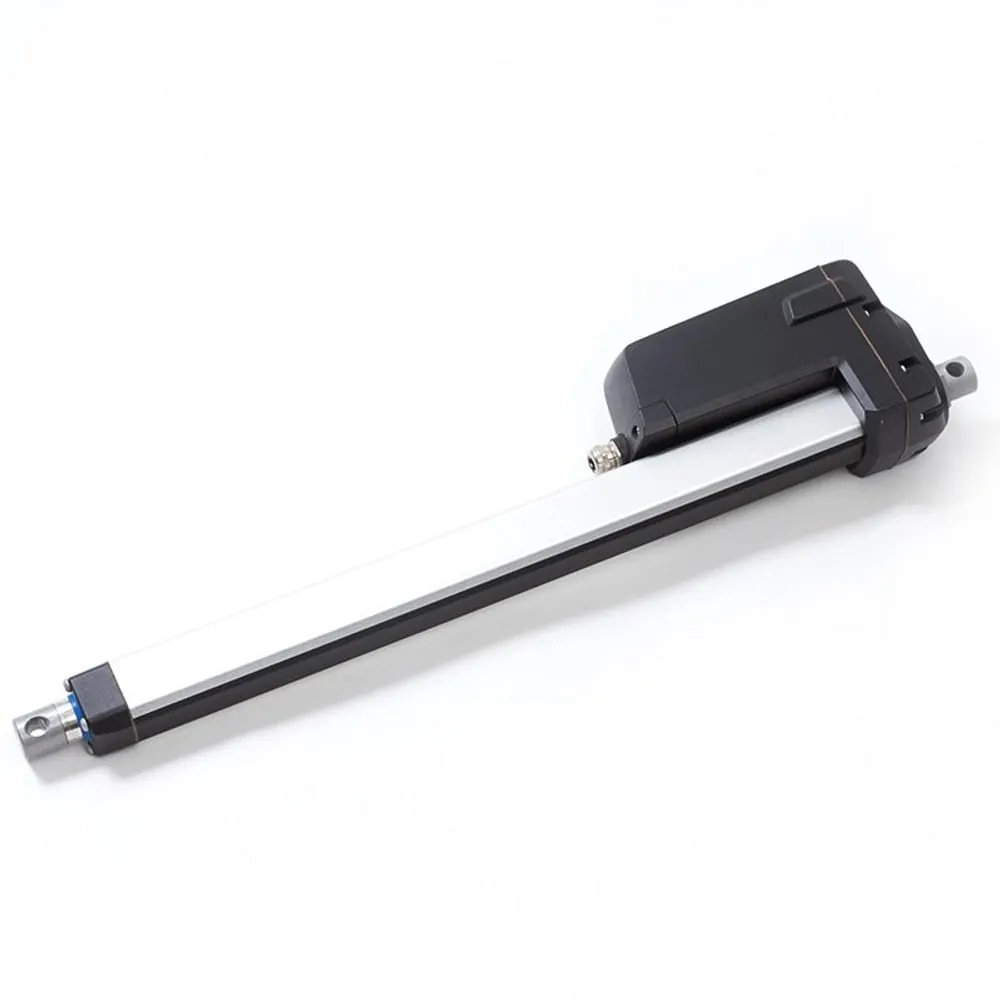

SLA-12KB linear actuator, main product view

1 / 5

Linear Actuator

SLA-12KB 12,000 N linear actuator

SLA-12KB 12000N linear actuator from Elerover.

Key specifications

Maximum load
12000 N / 1200 kg / 2700 lbs at 6 mm/s
Stroke
Offers 50 mm to 1000 mm stroke lengths, customizable to meet specific application
Speed
6 mm/s – 60 mm/s
Voltage
DC 12 V or DC 24 V, 24 V
Request OEM Quote WhatsApp

WhatsApp View in Selector Compare Email

Product overview

SLA-12KB 12000N linear actuator from Elerover. This DC linear actuator is built for OEM equipment that needs repeatable push/pull motion under industrial duty.

Maximum load
12000 N / 1200 kg / 2700 lbs at 6 mm/s
Stroke
Offers 50 mm to 1000 mm stroke lengths, customizable to meet specific application
Speed
6 mm/s – 60 mm/s
Voltage
DC 12 V or DC 24 V, 24 V
IP rating
IP66
Duty cycle
10%, maximum 2 min continuous use

Benefits

  • DC Permanent Magnet Motor : Ensures compact, robust, and durable performance.
  • High Travel Speed : Achieves a maximum travel speed of 38mm/s .
  • Customizable Stroke Length : Offers 50mm to 1000mm stroke lengths, customizable to meet specific application needs.
  • Variable Load Capacity : Supports load capacities from 3200N to 12000N , with other loads available upon request.
  • Signal Feedback Options : Compatible with potentiometer or hall sensor for precise position feedback.
  • Built-in Limit Switch and Clutch : Features a single-axis design with a built-in limit switch and clutch for enhanced safety.
  • Overload Protection : Built-in overload protection ensures safe operation under heavy loads.
  • Anti-Corrosion and Maintenance-Free : Resistant to corrosion and oxidation, requiring minimal maintenance.

Technical specifications

Maximum load 12000 N / 1200 kg / 2700 lbs at 6 mm/s
Stroke Offers 50 mm to 1000 mm stroke lengths, customizable to meet specific application
Speed 6 mm/s – 60 mm/s
Speed options 6±1 mm/s, 8±2 mm/s, 12±2 mm/s, 16±3 mm/s, 20±4 mm/s, 25±5 mm/s, 38±6 mm/s, 60±12 mm/s
Voltage DC 12 V or DC 24 V, 24 V
IP rating IP66
Duty cycle 10%, maximum 2 min continuous use

Performance matrix

No-load speed Full-load speed
6 mm/s 5 mm/s
8 mm/s 6 mm/s
12 mm/s 9 mm/s
16 mm/s 10 mm/s
20 mm/s 11 mm/s
25 mm/s 14 mm/s
38 mm/s 24 mm/s
60 mm/s 30 mm/s

Applications

  • solar tracking systems : enhances the efficiency of solar panels by ensuring optimal alignment with the sun.
  • industrial automation : suitable for various automated processes requiring precise linear motion control.

Request technical documents

FAQ

What is the SLA-12KB?

The SLA-12KB is an Elerover linear actuator rated IP66.

Does Elerover manufacture the SLA-12KB?

Yes. Elerover is a linear actuator manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.

What are the key specifications of the SLA-12KB?

Key ratings from the product specifications include voltage DC 12 V or DC 24 V, 24 V, load 12000 N, stroke Offers 50 mm to 1000 mm stroke lengths, customizable to meet specific application, protection IP66. See the Technical Specifications section on this page for the full table.

How do I request a quote for the SLA-12KB?

Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.

Request an OEM quote

Share force, stroke, voltage and quantity. Elerover will map your RFQ to a published series or OEM configuration.

WhatsApp Chat on WhatsApp for a fast OEM reply

Confirm with sales/engineering

Optional technical details

Required: email, application, force/load, stroke length, quantity, and privacy consent.
