Linear Actuator
Model SLA08
12 V DC 24 V DC SLA08 8,000 N linear actuator 300mm stroke for dump trailer
SLA08 300mm stroke (retracted install length about 550 mm) is a common dump-trailer and tipper assist length on the 8000N platform.
Key specifications
- Maximum load
- 8000 N / 800 kg / 1798 lbs
- Stroke
- 300 mm
- Speed
- 5 mm/s – 50 mm/s
- Voltage
- 12 V / 24 V DC
Product overview
SLA08 300mm stroke (retracted install length about 550 mm) is a common dump-trailer and tipper assist length on the 8000N platform. High thrust supports bed tilt assists when mounting geometry is confirmed; 12V/24V DC suits vehicle electrical systems.
- Maximum load
- 8000 N / 800 kg / 1798 lbs
- Stroke
- 300 mm
- Speed
- 5 mm/s – 50 mm/s
- Voltage
- 12 V / 24 V DC
- IP rating
- IP65
- Feedback
- Optional
Applications
- Dump trailers
- Tipper and dump bed assists
- Agricultural dump equipment
- Mobile chassis lift assists
Benefits
- Heavy-duty industrial electric linear actuator for high-load OEM motion
- Working voltage: 12V / 24V DC (36V / 48V optional)
- Max thrust / pull up to 8000N (approx. 1800 lbs / 800 kg)

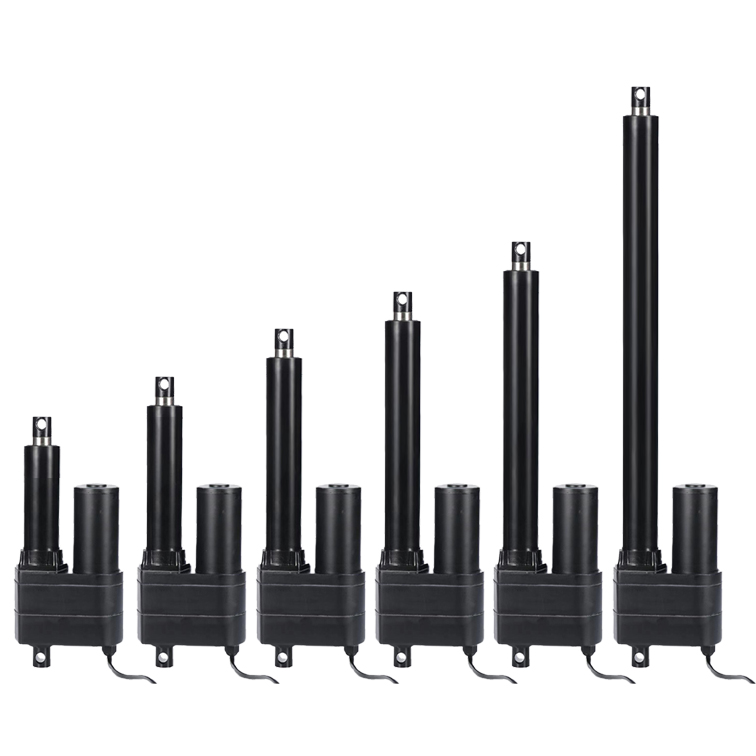

- Stroke options from 50mm to 700mm (custom strokes available)

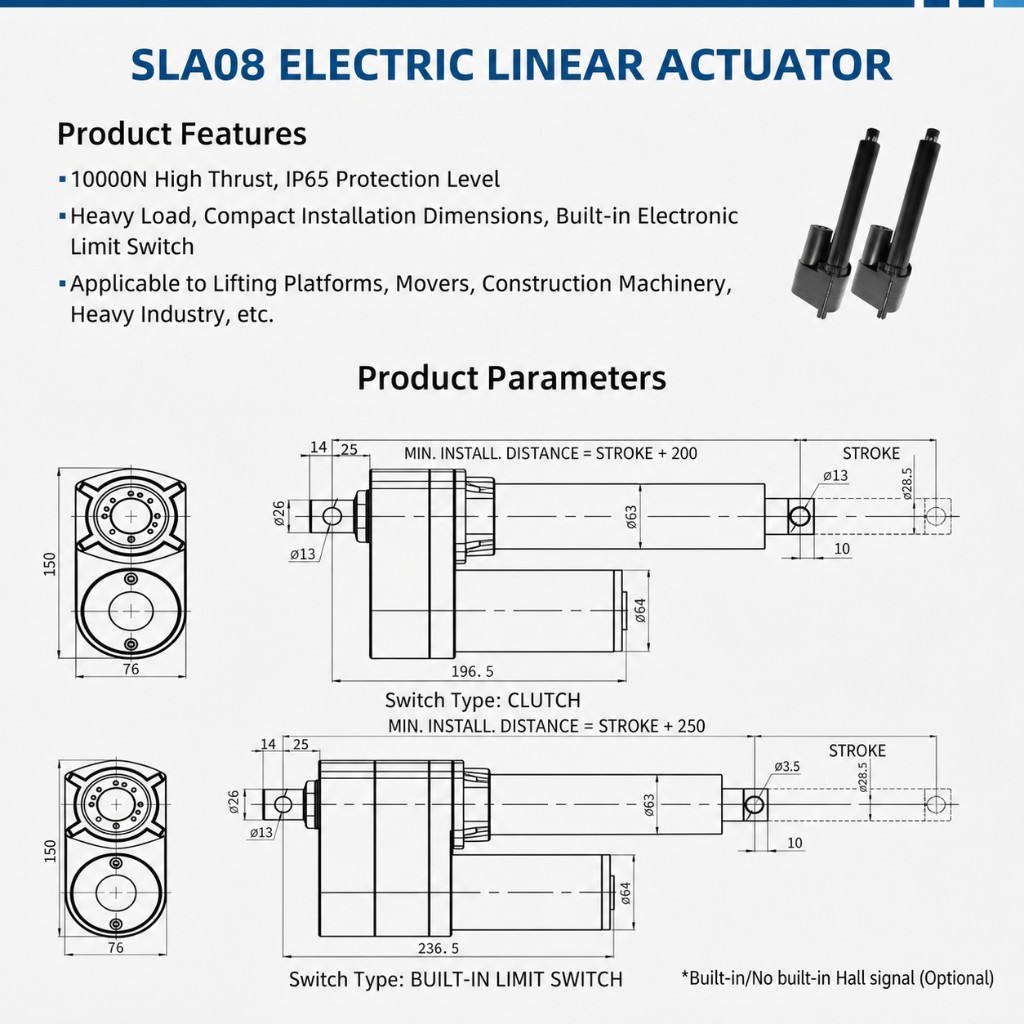

- Compact installation footprint with parallel motor layout
- Outer tube Φ63mm; motor housing Φ64mm
- Front and rear clevis mounts with Φ13mm mounting holes
- Built-in electronic limit switches (clutch protection optional)
Technical specifications
| Maximum load | 8000 N / 800 kg / 1798 lbs |
|---|---|
| Stroke | 300 mm |
| Speed | 5 mm/s – 50 mm/s |
| Voltage | 12 V / 24 V DC |
| IP rating | IP65 |
| Retracted length | 550 mm |
| Feedback | Optional |
| Limit switch | Yes |
| Mounting type | Φ13mm clevis (front & rear) |
| Motor type | Brushed DC |
| Housing material | Φ63mm |
Performance matrix
| No-load speed | Full-load speed | Thrust | Self-locking force |
|---|---|---|---|
| 5 mm/s | 3.5 mm/s | 8000 N / 800 kg / 1800 lbs | 8500 N / 850 kg / 1900 lbs |
| 8 mm/s | 6 mm/s | 7000 N / 700 kg / 1600 lbs | 7500 N / 750 kg / 1700 lbs |
| 10 mm/s | 7 mm/s | 6000 N / 600 kg / 1300 lbs | 6500 N / 650 kg / 1500 lbs |
| 12 mm/s | 9 mm/s | 5000 N / 500 kg / 1100 lbs | 5500 N / 550 kg / 1200 lbs |
| 16 mm/s | 12 mm/s | 4000 N / 400 kg / 880 lbs | 4500 N / 450 kg / 1000 lbs |
| 20 mm/s | 15 mm/s | 3000 N / 300 kg / 670 lbs | 3500 N / 350 kg / 790 lbs |
| 28 mm/s | 20 mm/s | 2000 N / 200 kg / 450 lbs | 2500 N / 250 kg / 560 lbs |
| 50 mm/s | 38 mm/s | 1000 N / 100 kg / 200 lbs | 1500 N / 150 kg / 340 lbs |
Request technical documents
FAQ
What is the SLA08?
The SLA08 is an Elerover linear actuator rated IP65.
Does Elerover manufacture the SLA08?
Yes. Elerover is a linear actuator manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SLA08?
Key ratings from the product specifications include voltage 12 V / 24 V DC, load 8000 N, stroke 300 mm, protection IP65. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA08?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
Request an OEM quote
Share force, stroke, voltage and quantity. Elerover will map your RFQ to a published series or OEM configuration.
