SLA-HP250 · SELF-CONTAINED HYDRAULIC ACTUATOR

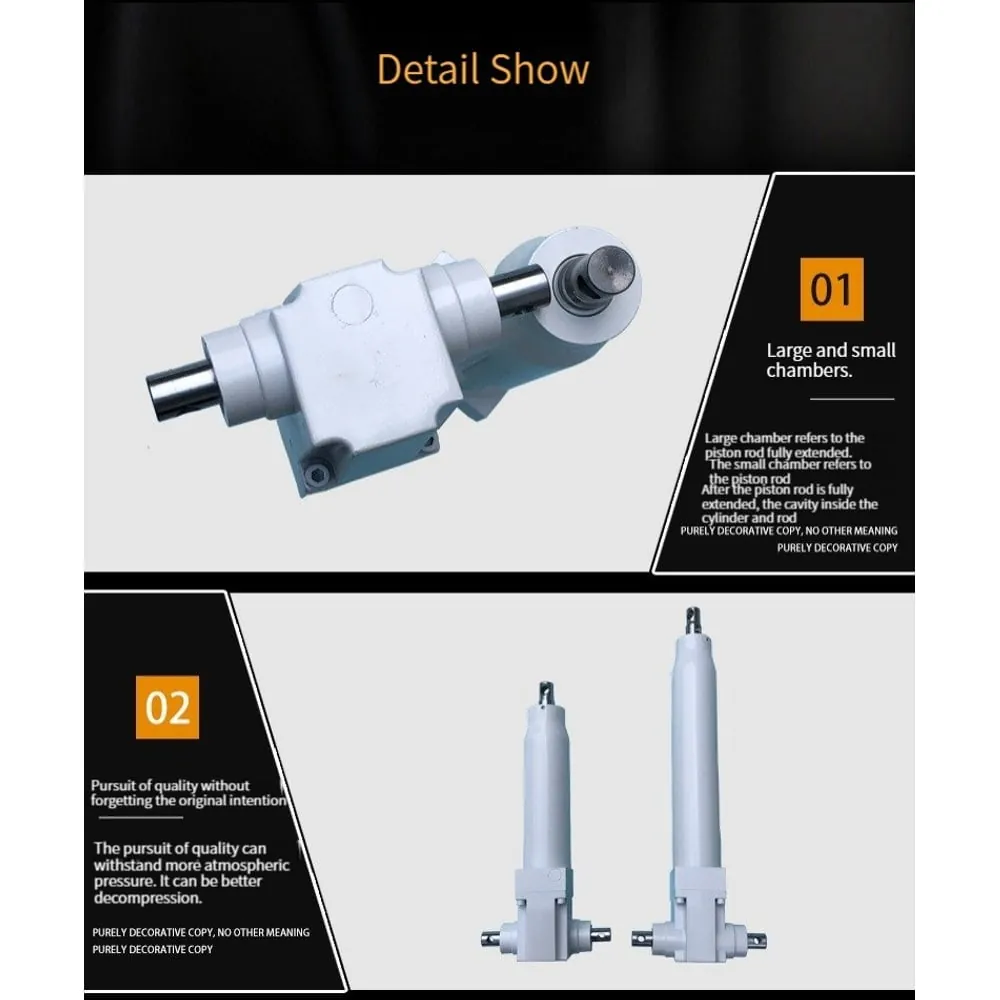

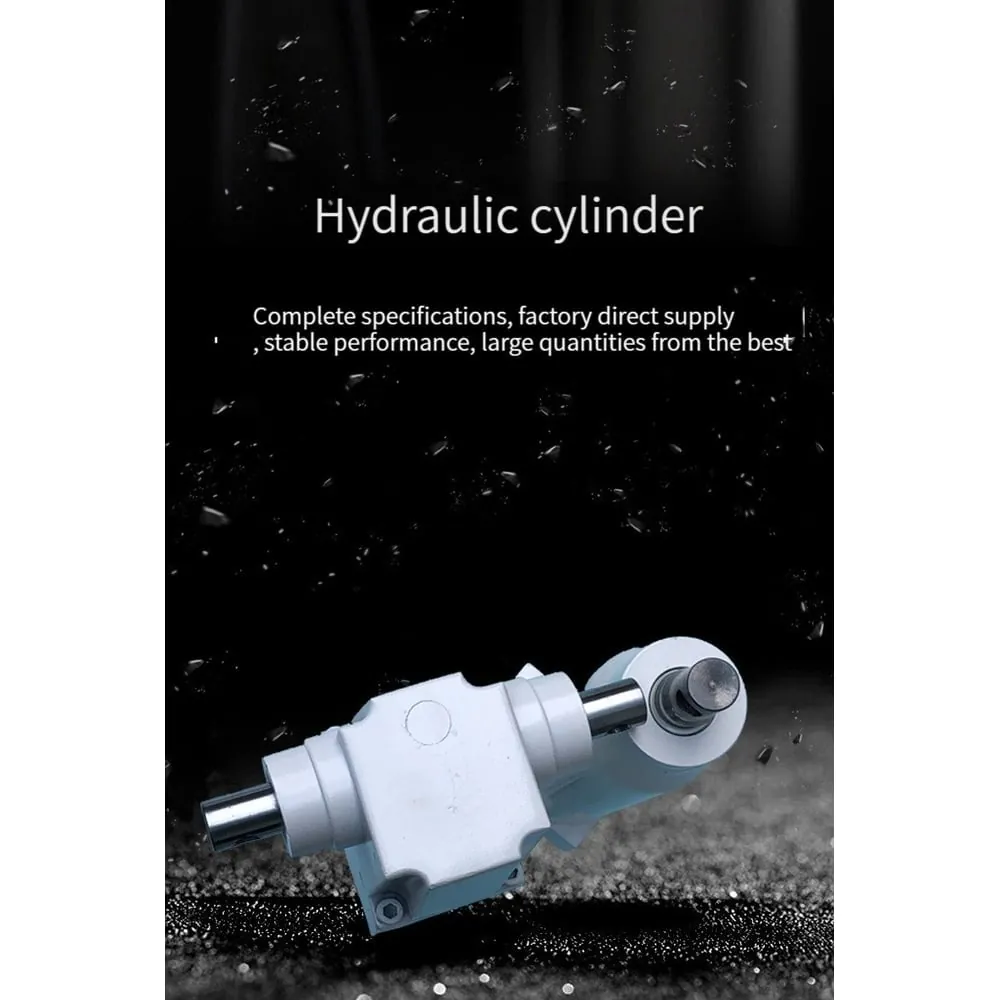

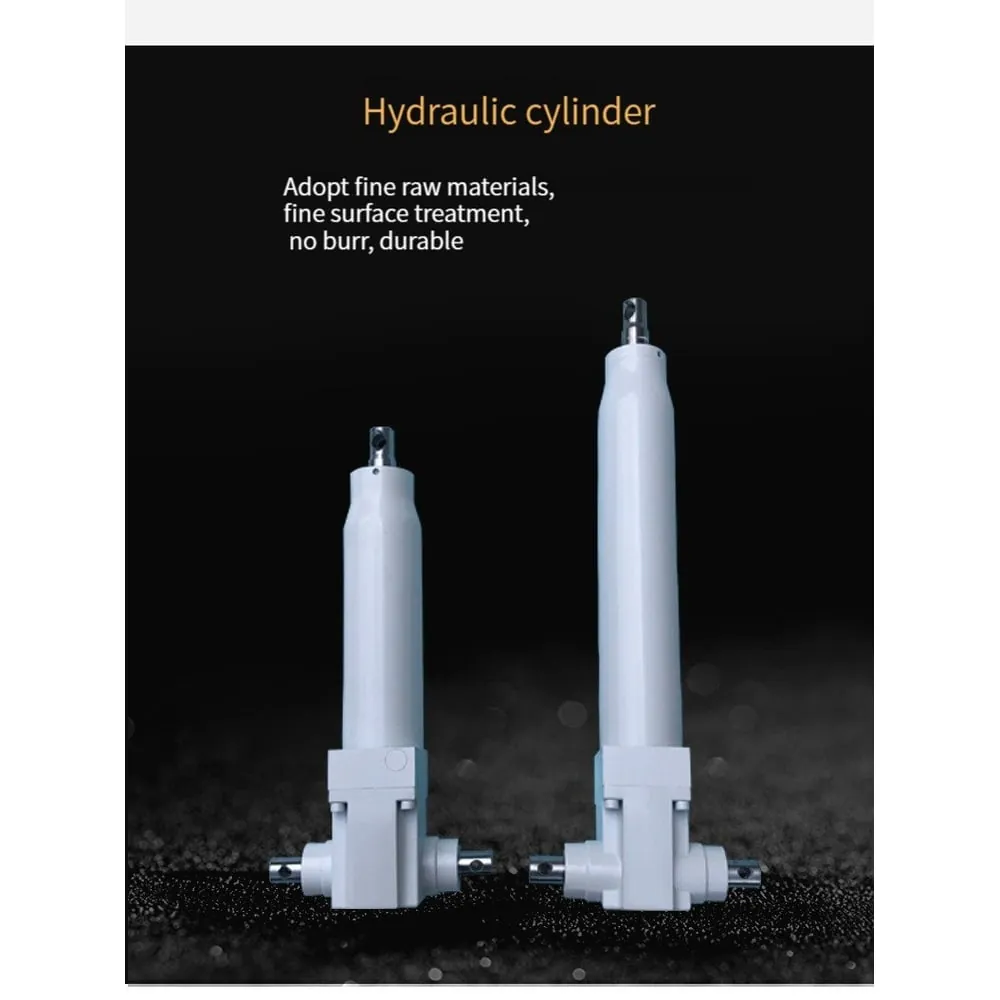

SLA-HP250 Hydraulic Actuator for Medical Equipment
Self-contained hydraulic actuator with up to 10 kN dynamic push force and 80–400 mm stroke options. Integrates pump, cylinder, valves and reservoir for medical beds and patient-handling equipment — manual/foot operation with no external power required.
Key specifications
- Maximum push force
- Up to 10 kN (≈ 2,248 lbs)
- Stroke
- 80–400 mm (3.1–15.7 in)
- Valve configuration
- Pressure-relief valve + flow-control valve for descent
- Actuation mode
- Manual / foot pump operation (no external power)
Typical applications
Built for patient handling and care-equipment platforms. Final suitability should still be confirmed against your load case, mounting geometry and applicable regulatory requirements.
- Hospital beds Medical / care equipment
- Home care beds Medical / care equipment
- Patient lifting devices Medical / care equipment

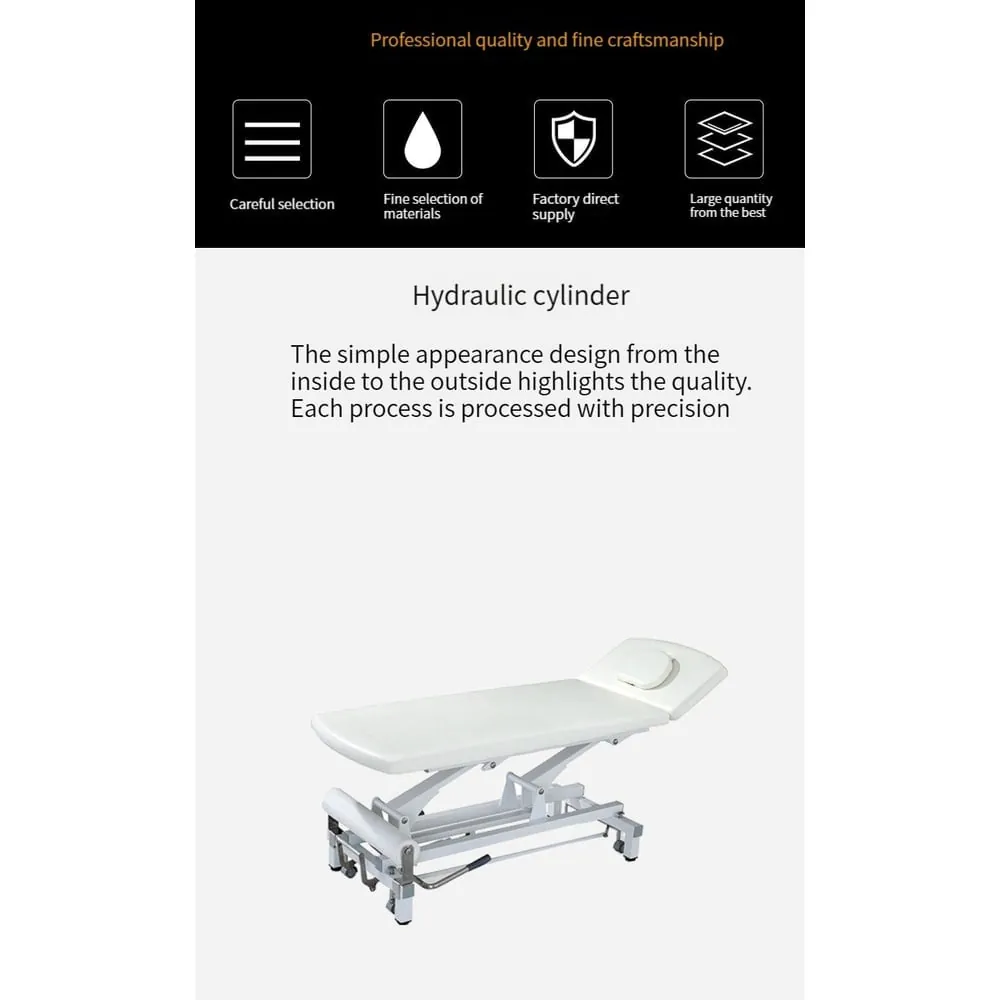

- Examination couches Medical / care equipment
- Physiotherapy tables Medical / care equipment
- Medical chairs Medical / care equipment
- Custom patient-handling equipment Medical / care equipment
Benefits
- Zero-maintenance self-contained design
- Integrated pump, cylinder, valves and reservoir
- Quiet, smooth performance with reliable load holding
- Flow-control valve for controlled descent independent of patient weight
- Installed pressure-relief valve
- No external power required — fully manual / foot operation
- Manual override / hand-release option
- Easy installation for OEM medical equipment
Technical specifications
| Maximum push force | Up to 10 kN (≈ 2,248 lbs) |
|---|---|
| Stroke | 80–400 mm (3.1–15.7 in) |
| Stroke options | 80–400 mm (3.1–15.7 in) |
| Cylinder type | Single-acting cylinder |
| Valve configuration | Pressure-relief valve + flow-control valve for descent |
| Actuation mode | Manual / foot pump operation (no external power) |
Configuration options
- Holes on the pedal shaft
- Mounting brackets
- Suction tube
- Custom actuator colors
- TÜV certification available on request
Information required for engineering review
Key ratings are published above. Share the details below so we can confirm the correct configuration for your equipment design.
- Application and duty profile
- Required load and unit
- Required stroke within 80–400 mm (or custom)
- Retracted length / mounting envelope
- Mounting, pedal and release requirements
- Desired descent behavior
- Quantity / annual volume
- Optional extras (brackets, suction tube, color, TÜV)
Document availability
Document availability and revision will be confirmed after application review.
Ask About 2D Drawing Availability
Request CAD / STEP Review
FAQ
What is the SLA-HP250?
The SLA-HP250 is a self-contained hydraulic actuator that combines pump, cylinder, valves and reservoir in one compact unit. It is intended for medical beds, patient-lifting devices and related care equipment, with manual/foot operation and no external power required.
What load and stroke options are available?
Published ratings include dynamic push force up to 10 kN and customizable stroke lengths from 80 mm to 400 mm. Share your required load, stroke and mounting envelope for application confirmation.
How does descent control work?
The unit includes a flow-control valve for smooth descent regardless of patient weight, plus an installed pressure-relief valve for overload protection.
Are drawings and CAD files available?
Submit the document types you need. The team will confirm availability and revision for your configuration. Reference mounting dimensions can be reviewed during engineering exchange.
Is it a drop-in replacement?
This page does not claim drop-in compatibility with any third-party model. Share existing installation drawings and operating conditions for engineering review.
What certifications cover this product?
TÜV certification can be discussed as an option for specific builds. Equipment OEMs remain responsible for system-level regulatory assessment of the finished medical device.
SLA-HP250 application review
Share application, required load and unit, stroke, retracted length or mounting envelope, and quantity for an engineering application review.
