Request Datasheet
Electric Hydraulic Actuator

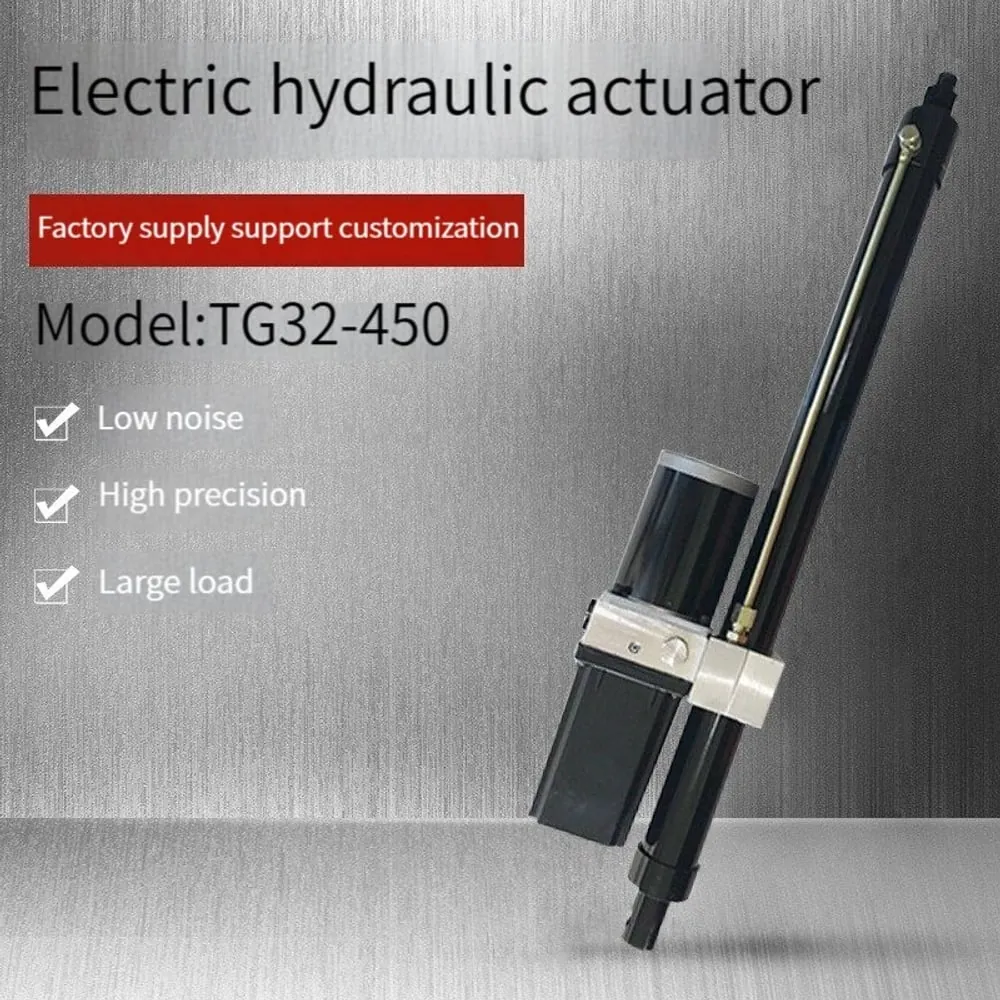

SLA-TG32S 10,000 N load electric hydraulic linear actuator
SLA-TG32S 10000N load electric hydraulic linear actuator from Elerover.
Key specifications
- Maximum push force
- 1 t
- Maximum pull force
- 0.5 t
- Stroke
- 50~800 mm
- Speed
- 10 mm/s – 20 mm/s
Product overview
SLA-TG32S 10000N load electric hydraulic linear actuator from Elerover. This electric-hydraulic actuator combines electric drive with hydraulic force for high-load linear motion.
- Maximum push force
- 1 t
- Maximum pull force
- 0.5 t
- Stroke
- 50~800 mm
- Voltage
- DC12 V / 24 V / 48 V
- Speed
- 10 mm/s – 20 mm/s
Applications
- Industrial Automation
- Agricultural
- Construction
- Lifting

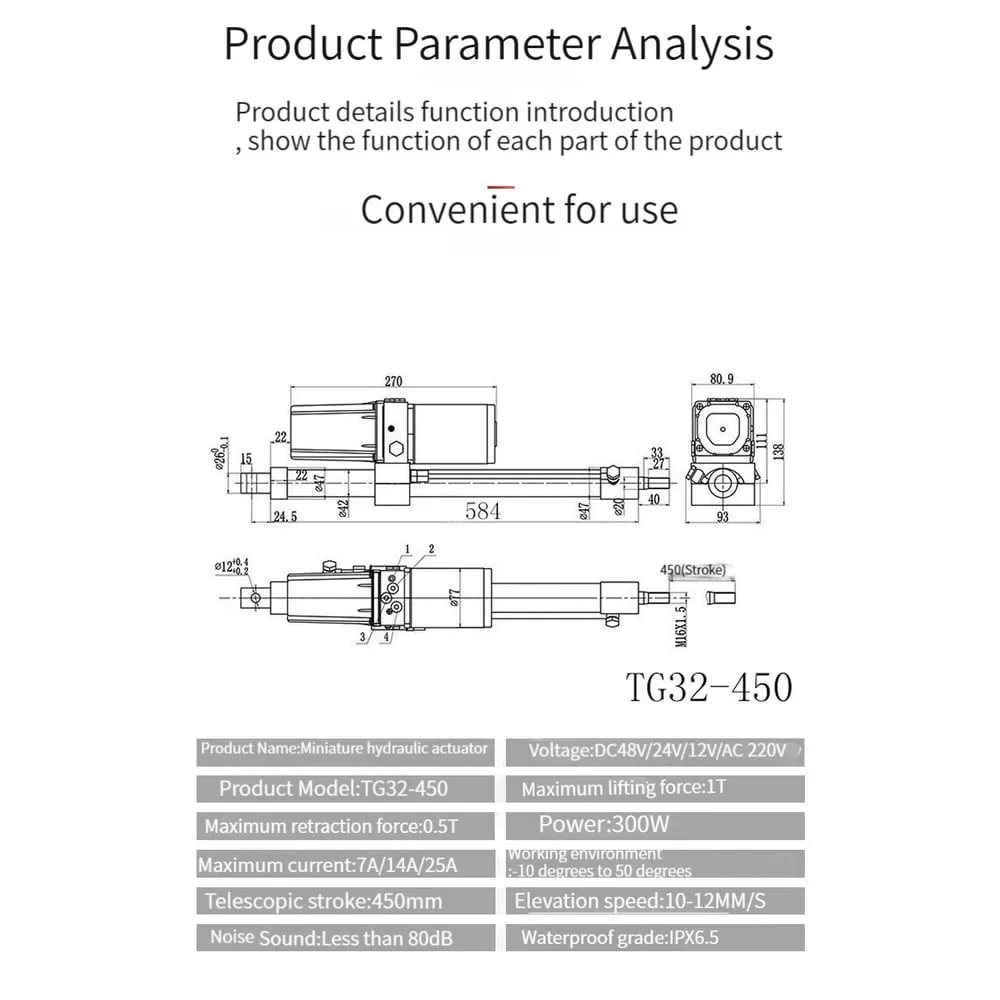

Technical specifications
| Maximum push force | 1 t |
|---|---|
| Maximum pull force | 0.5 t |
| Stroke | 50~800 mm |
| Voltage | DC12 V / 24 V / 48 V |
| Speed | 10 mm/s – 20 mm/s |
Performance matrix
| Speed | Thrust |
|---|---|
| 10 mm/s | 10000 N |
| 20 mm/s | 10000 N |
Configuration options
| Parameter | TG32 Customize | TG32 Customize |
|---|---|---|
| Voltage | DC12V/24V/48V | DC 24V/48V |
| Power | 300W | 800W |
| Stroke | 50~800mm | 50~800mm |
| Push force | 1T | 1T |
| Pull force | 0.5T | 0.5T |
| Max speed | 10-12mm/s | 20-25mm/s |
| Temperature | -20-60℃ | -20-60℃ |
| Frequency | 4min/each time | 4min/each time |
| waterproof | IP6X | IP6X |
Request technical documents
FAQ
What is the SLA-TG32S?
The SLA-TG32S is an Elerover electric hydraulic actuator for industrial and OEM motion projects.
Does Elerover manufacture the SLA-TG32S?
Yes. Elerover is a electric hydraulic actuator manufacturer and supplier. Share your application requirements and quantity for a factory quote on this model.
What are the key specifications of the SLA-TG32S?
Key ratings from the product specifications include voltage DC12 V / 24 V / 48 V, load 10000 N, stroke 50~800 mm. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA-TG32S?
Send load, stroke, voltage, IP rating, duty cycle and quantity via the contact form or WhatsApp.
Request an OEM quote
Share force, stroke, voltage and quantity. Elerover will map your RFQ to a published series or OEM configuration.
