Request Datasheet
Controller
Model SLA-SCN4-HC

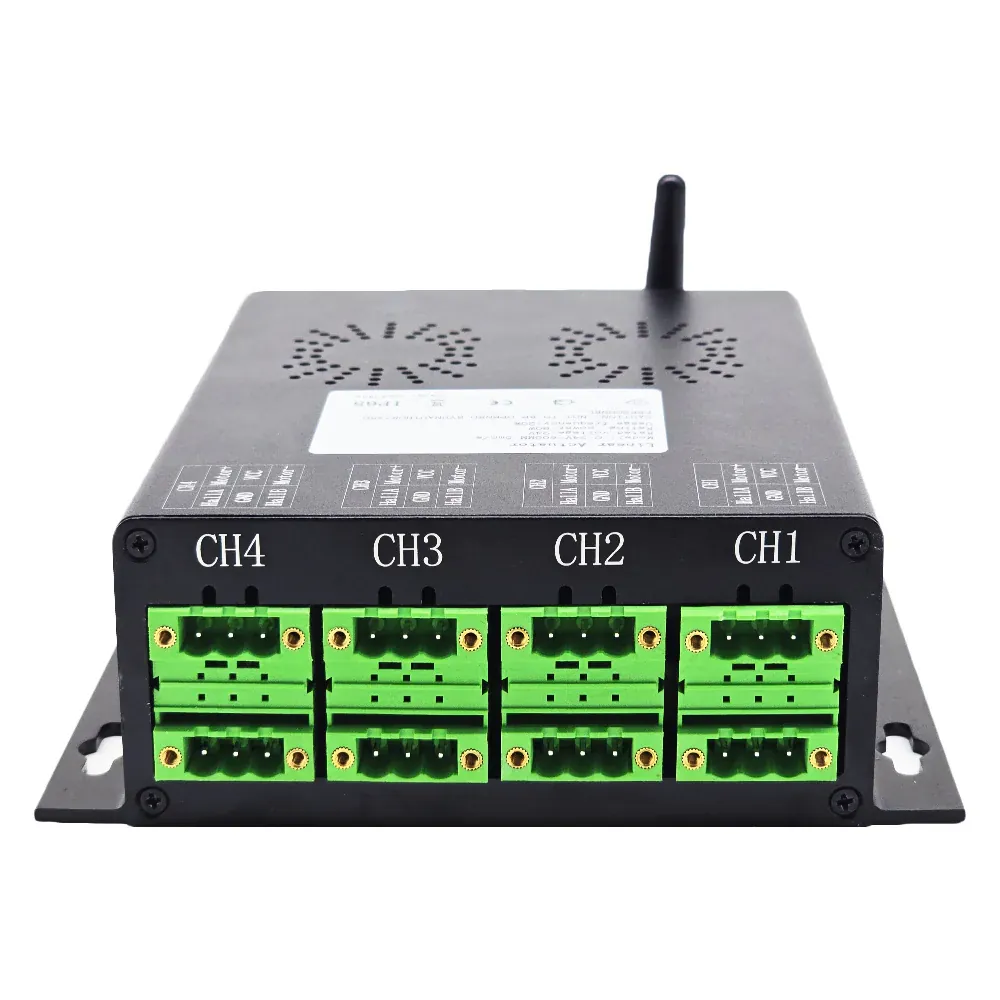

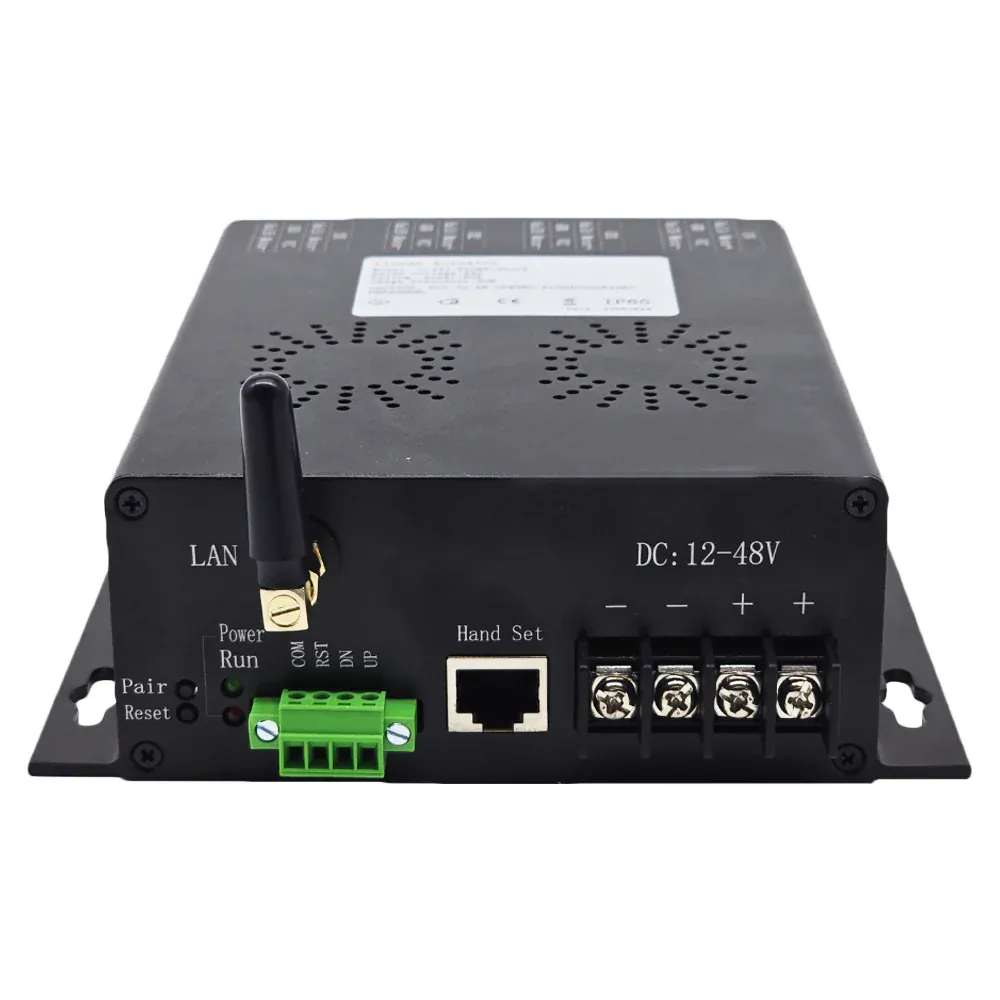

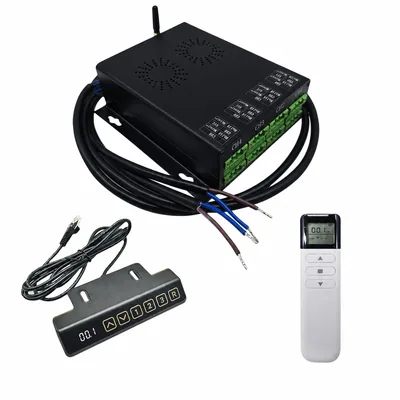

SLA-SCN4-HC One-Control-Four Synchronous Controller for heavy duty Linear Actuators
SLA-SCN4-HC One-Control-Four Synchronous Controller for heavy duty Linear Actuators from Elerover.
Key specifications
- Actuator count
- 4 linear actuators
- Input voltage
- 12–48 V DC, suitable for 12 V or 24 V
- Output voltage
- 12–48 V DC, suitable for 12 V or 24 V
- Maximum current
- 25 A
Product overview
SLA-SCN4-HC One-Control-Four Synchronous Controller for heavy duty Linear Actuators from Elerover. This controller coordinates actuator motion for synchronized or multi-channel OEM motion systems.
- Actuator count
- 4 linear actuators
- Input voltage
- 12–48 V DC, suitable for 12 V or 24 V
- Output voltage
- 12–48 V DC, suitable for 12 V or 24 V
- Maximum current
- 25 A
- Control method
- Interlocking mode or momentary mode
- Limit switch support
- UP + COM / DOWN + COM
Applications
- Industrial Automation
- Furniture
- Solar Tracking
- Lifting
Benefits
- Hold ▲: all actuators extend.
- Hold ▼: all actuators retract.
- Release the button to stop.
- Press ▲: actuators extend automatically to the maximum stroke.
- Press ▼: actuators retract automatically to the bottom.
- Press any button or stop button to stop during operation.
Technical specifications
| Actuator count | 4 linear actuators |
|---|---|
| Input voltage | 12–48 V DC, suitable for 12 V or 24 V |
| Output voltage | 12–48 V DC, suitable for 12 V or 24 V |
| Maximum current | 25 A |
| Control method | Interlocking mode or momentary mode |
| Limit switch support | UP + COM / DOWN + COM |
Request technical documents
FAQ
What is the SLA-SCN4-HC?
The SLA-SCN4-HC is an Elerover controller for industrial and OEM motion projects.
Does Elerover manufacture the SLA-SCN4-HC?
Yes. Elerover is a controller manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SLA-SCN4-HC?
Key ratings from the product specifications include voltage 12–48 V DC, suitable for 12 V or 24 V. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA-SCN4-HC?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
